Direct Clutch: Components

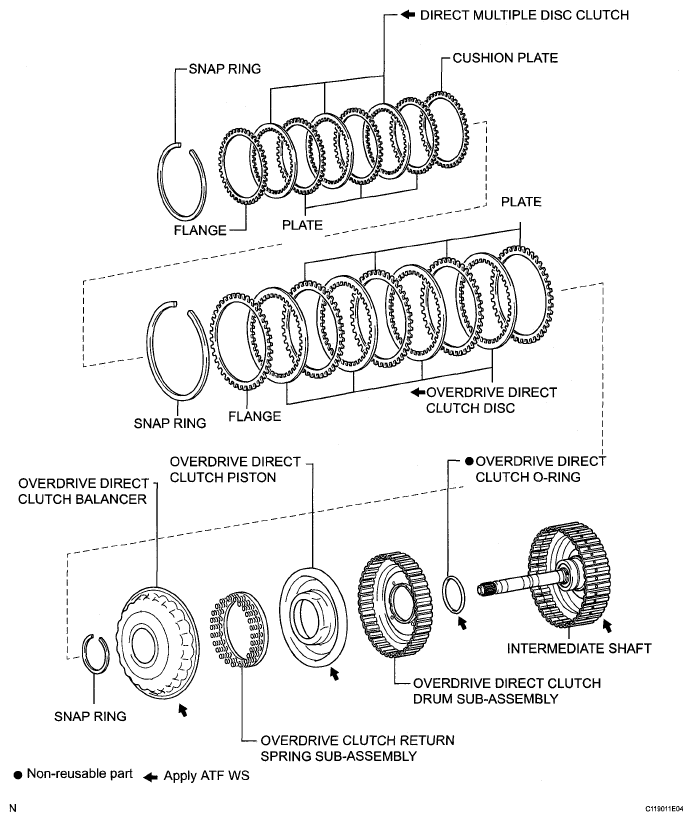

Fig 1: Identifying Direct Clutch Components

G05269169

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
