Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151E Automatic Transaxle >> Shift Lever >> Components

Shift Lever: Components

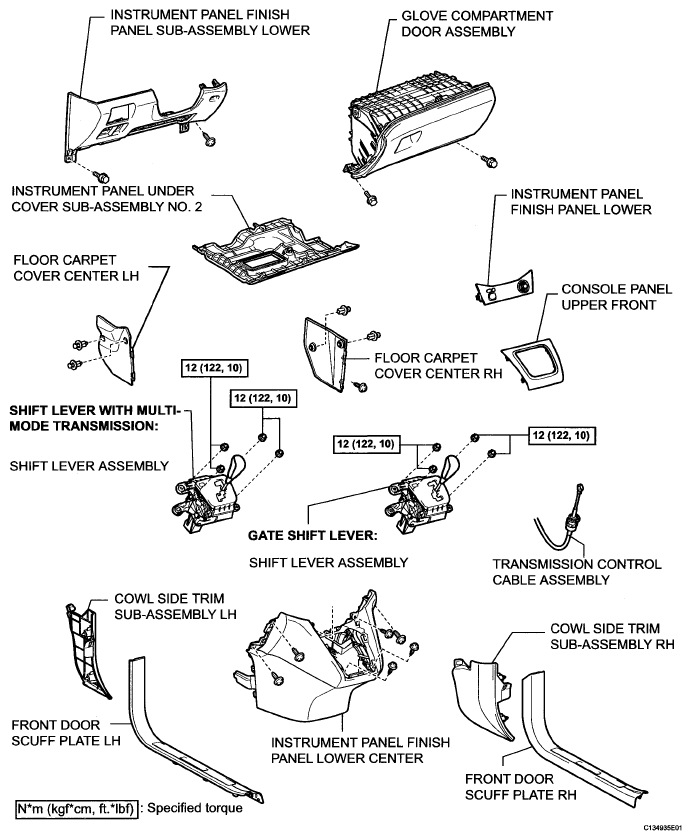

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05268838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

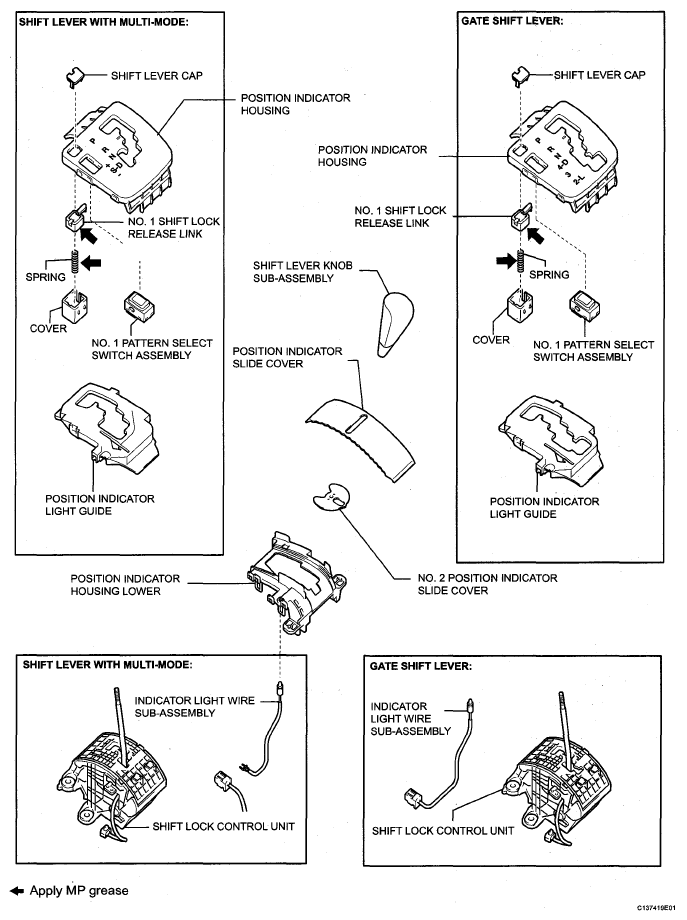

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05268839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
