Home >> Lexus >> 2008 >> RX 350 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U151E Automatic Transaxle >> Speed Sensor >> Components

Speed Sensor: Components

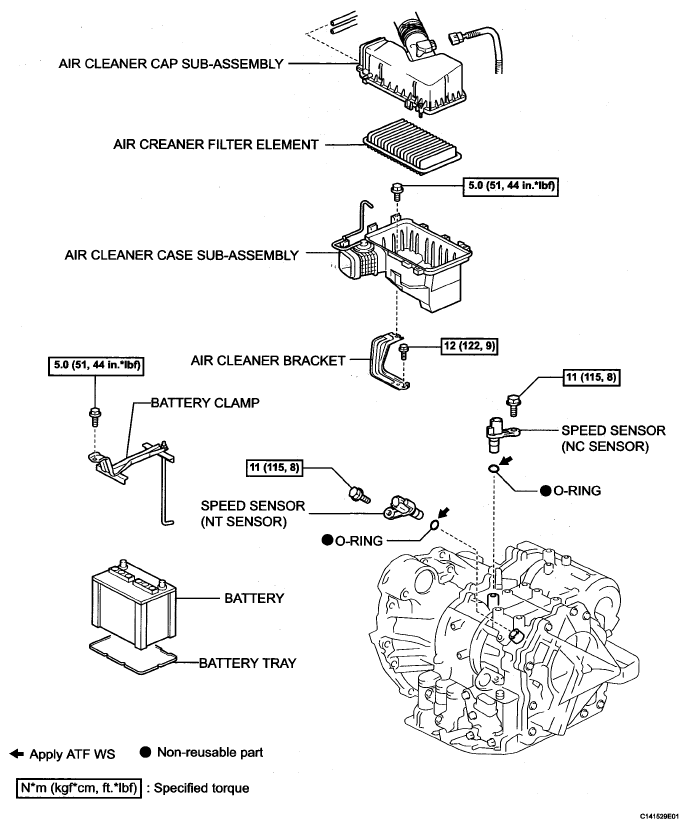

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G05268691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
