Abs Main Relay: Inspection

  1. INSPECT ABS MAIN RELAY (ABS NO.1 RELAY, ABS NO.2 RELAY)
    1. Measure the resistance according to the value (s) in the table below.

      Resistance

      RESISTANCE SPECIFICATION CHART

      Tester Connection Specified Condition
      Terminal 1 - Terminal 2 100 Ω
      Terminal 3 - Terminal 5 10 kΩ or higher (No Continuity)

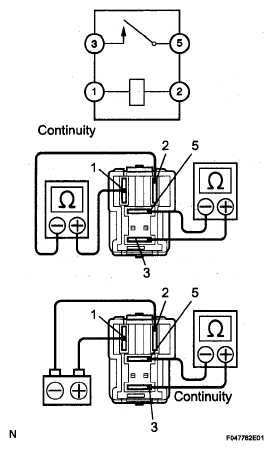

      2. Fig 1: Inspecting ABS Main Relay (ABS No.1 Relay, ABS No.2 Relay)
      G05859797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery voltage between terminals 1 and 2.
    3. Measure the resistance according to the value (s) in the table below.

      Resistance

      RESISTANCE SPECIFICATION CHART

      Tester Connection Specified Condition
      Terminal 3 - Terminal S Below 1 Ω
