OEM System Circuits: EPS: Notes

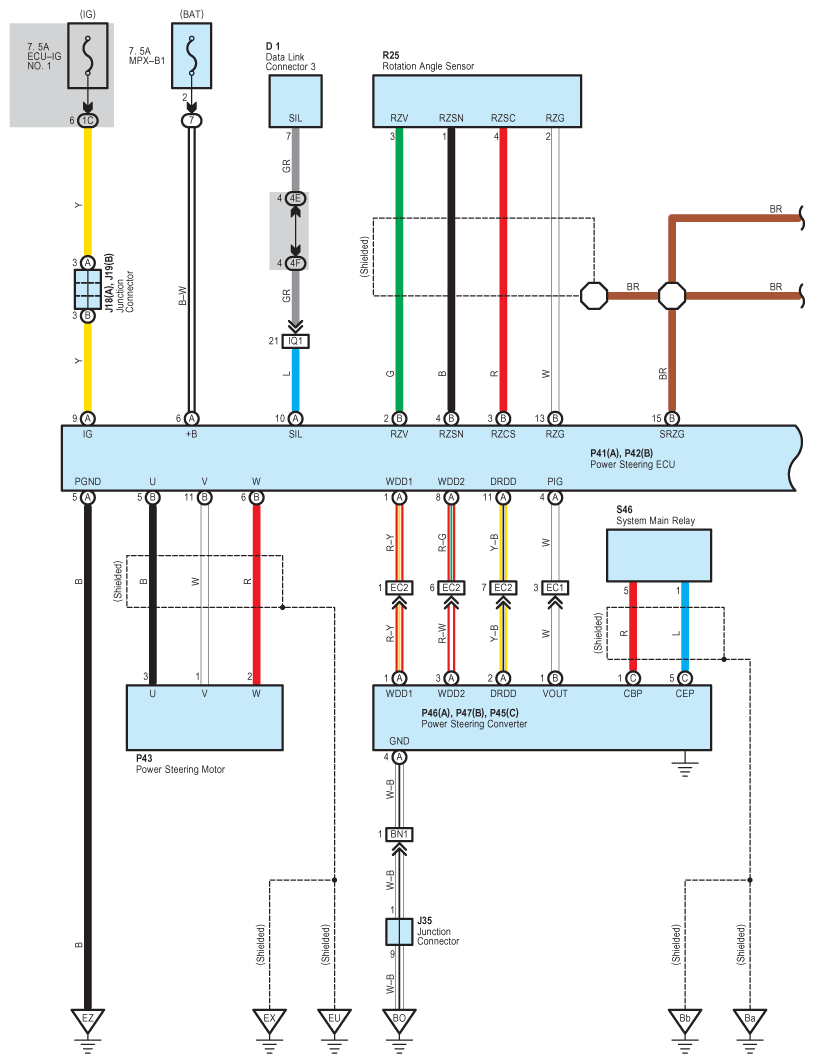

Fig 1: EPS - Circuit Diagram (1 Of 4)

G07609815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

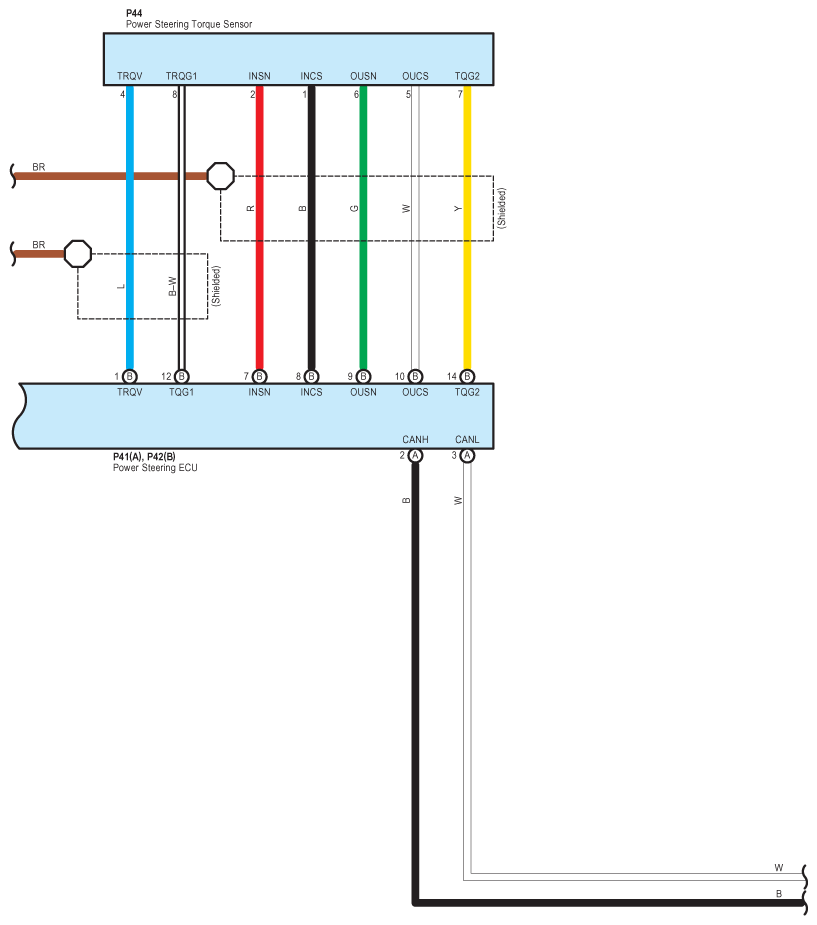

Fig 2: EPS - Circuit Diagram (2 Of 4)

G07609816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

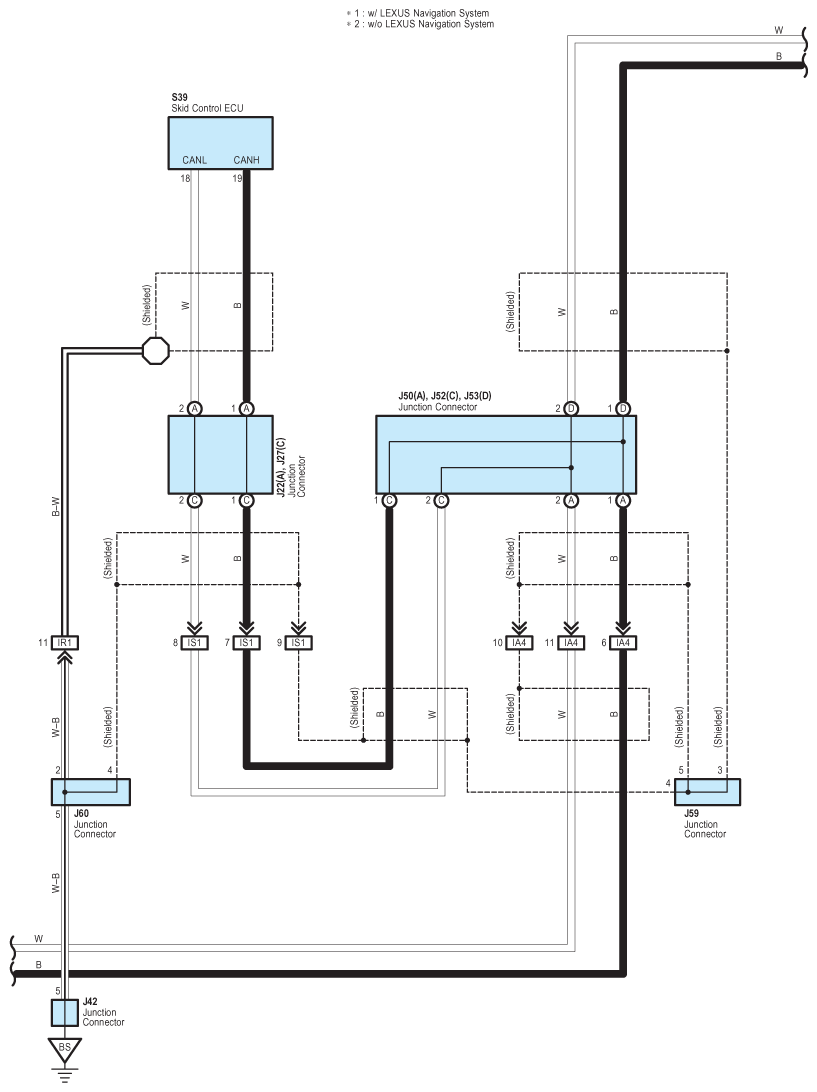

Fig 3: EPS - Circuit Diagram (3 Of 4)

G07609817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

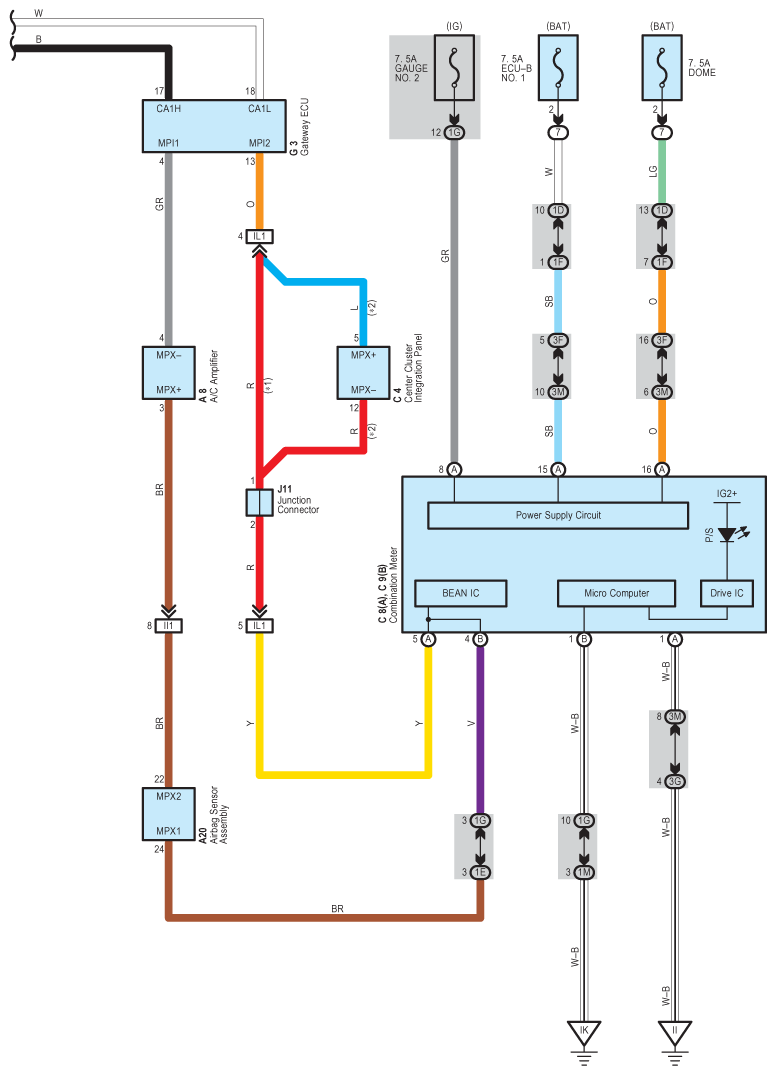

Fig 4: EPS - Circuit Diagram (4 Of 4)

G07609818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
