Home >> Lexus >> 2008 >> RX 400h FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder >> Notes

Key Reminder: Notes

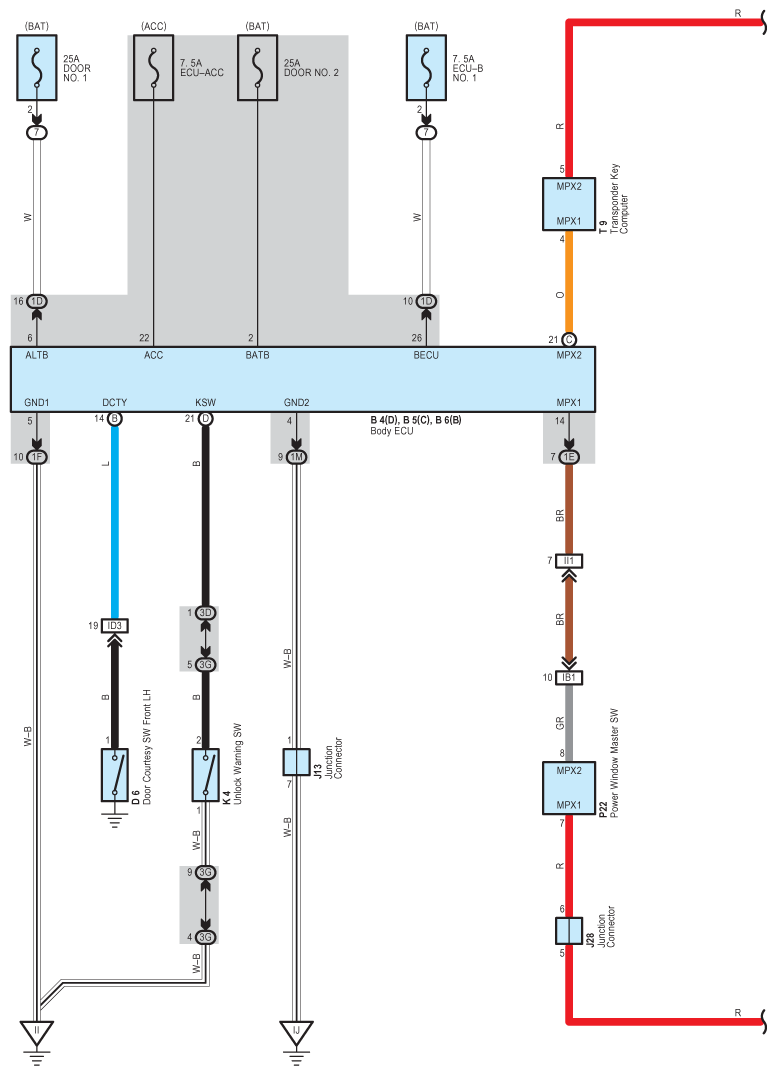

Fig 1: Key Reminder - Circuit Diagram (1 Of 2)
G07609914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Key Reminder - Circuit Diagram (2 Of 2)
G07609915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
