Fuel Tank: Components

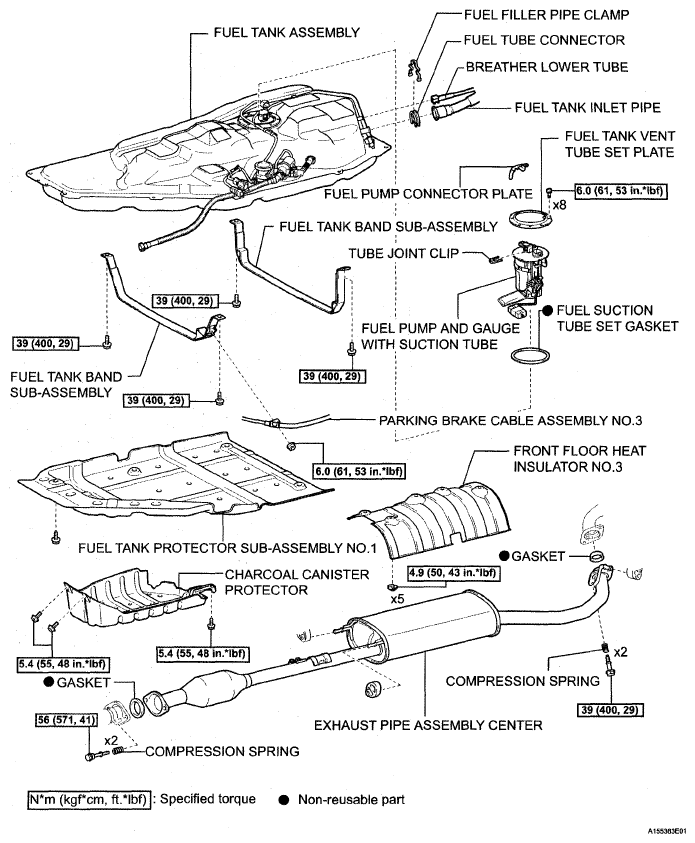

Fig 1: Fuel Pump Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

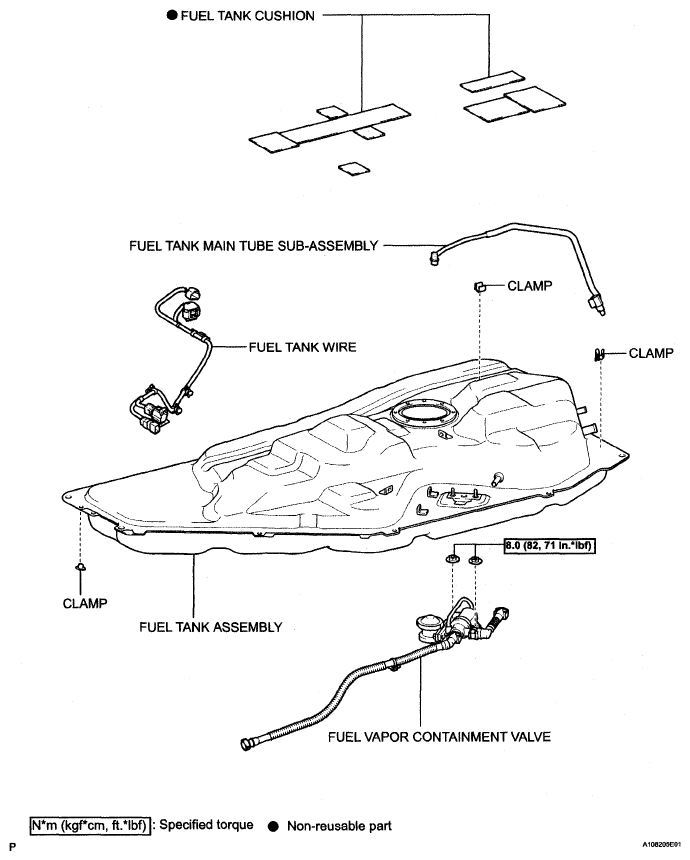

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
