Home >> Lexus >> 2008 >> RX 400h FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hybrid Transaxle >> Oil Pump Assembly >> Components

Oil Pump Assembly: Components

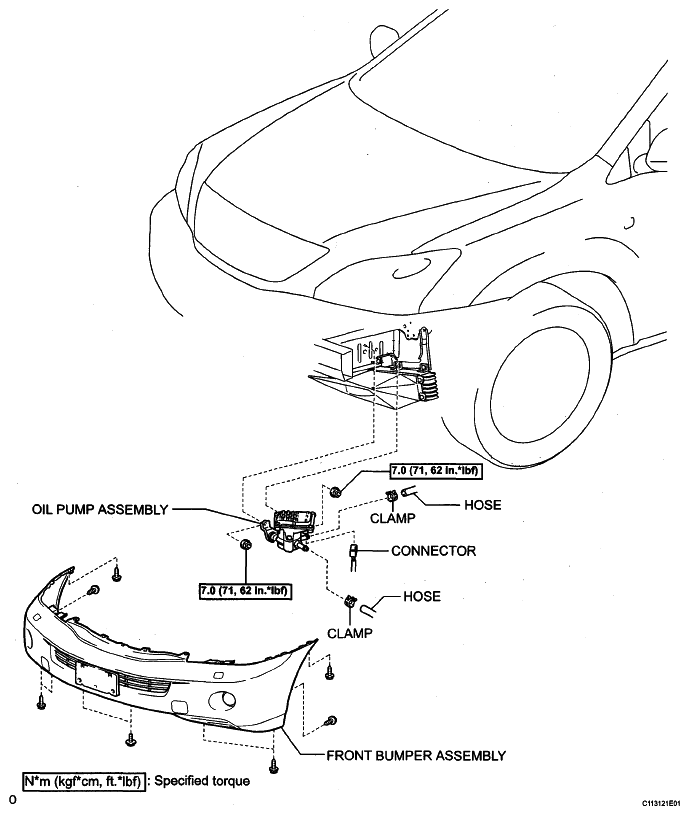

Fig 1: Oil Pump Replacement Components With Torque Specifications

G05279282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
