Home >> Lexus >> 2008 >> RX 400h FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hybrid Transaxle >> Shift Lever Position Sensor >> Components

Shift Lever Position Sensor: Components

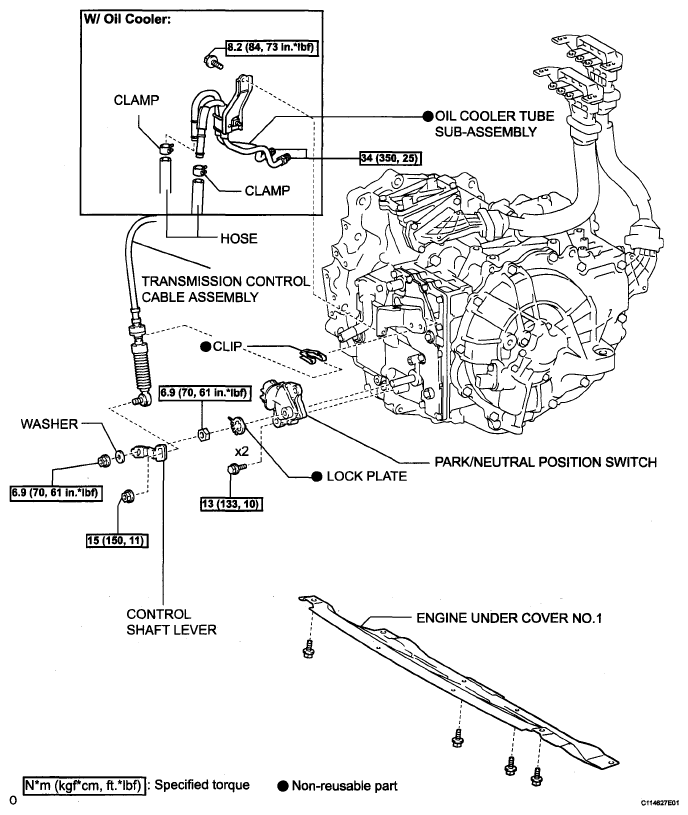

Fig 1: Shift Lever Position Sensor Replacement Components With Torque Specifications

G05861228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
