Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Rear Speed Sensor >> Components

Rear Speed Sensor: Components

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G05290711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

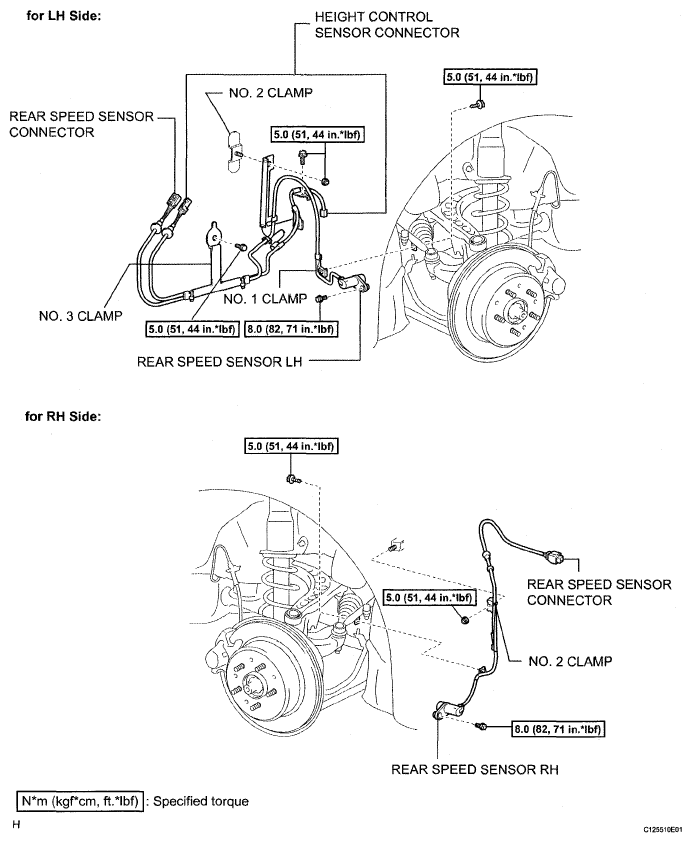

Fig 2: Rear Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05290712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
