Automatic Glare-Resistant EC Mirror
>>
Notes
Automatic Glare-Resistant EC Mirror: Notes

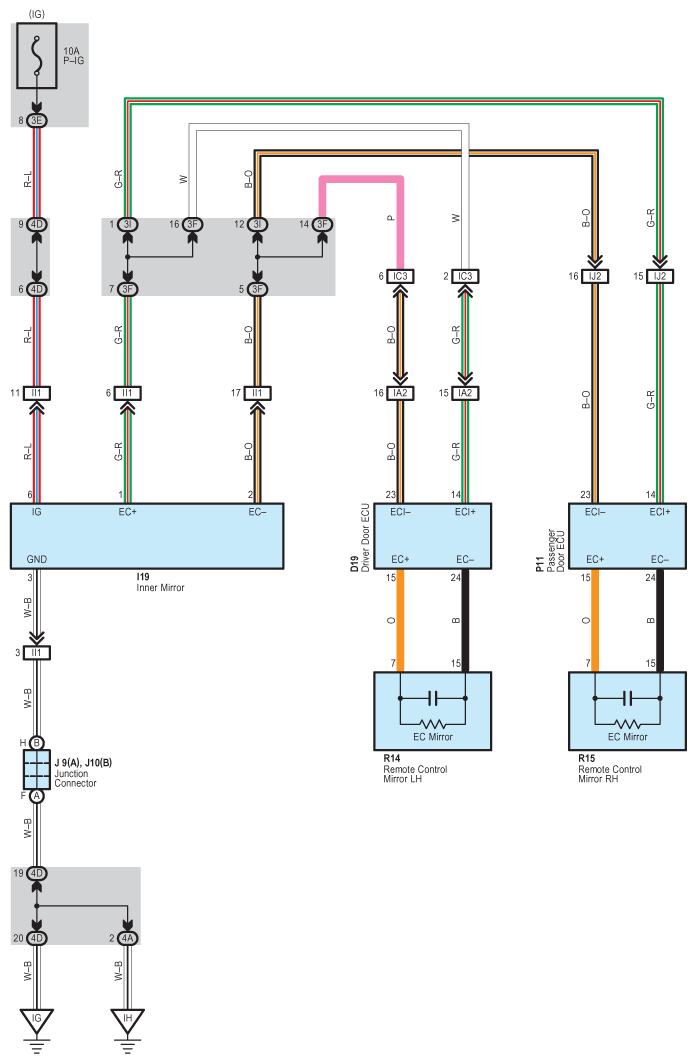

Fig 1: Automatic Glare-Resistant EC Mirror - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
