Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Seat Heater >> Notes

Seat Heater: Notes

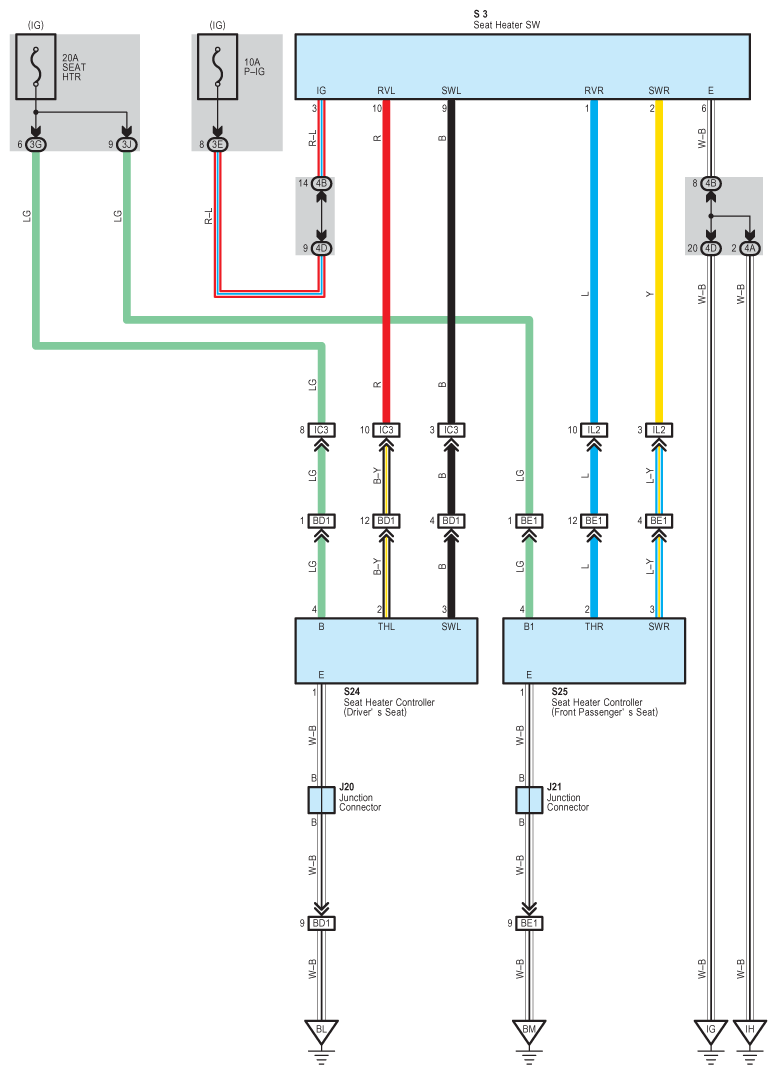

Fig 1: Seat Heater - Circuit Diagram
G07612070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
