Wiper and Washer: Notes

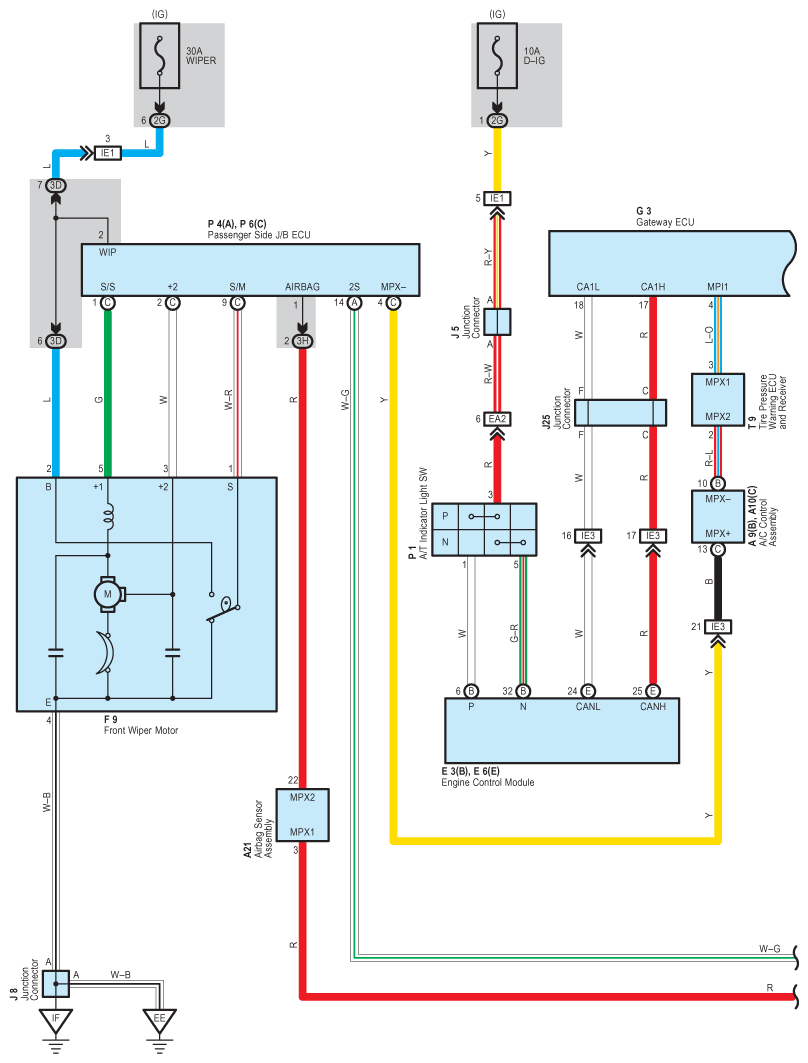

Fig 1: Wiper And Washer - Circuit Diagram (1 Of 3)
G07612032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

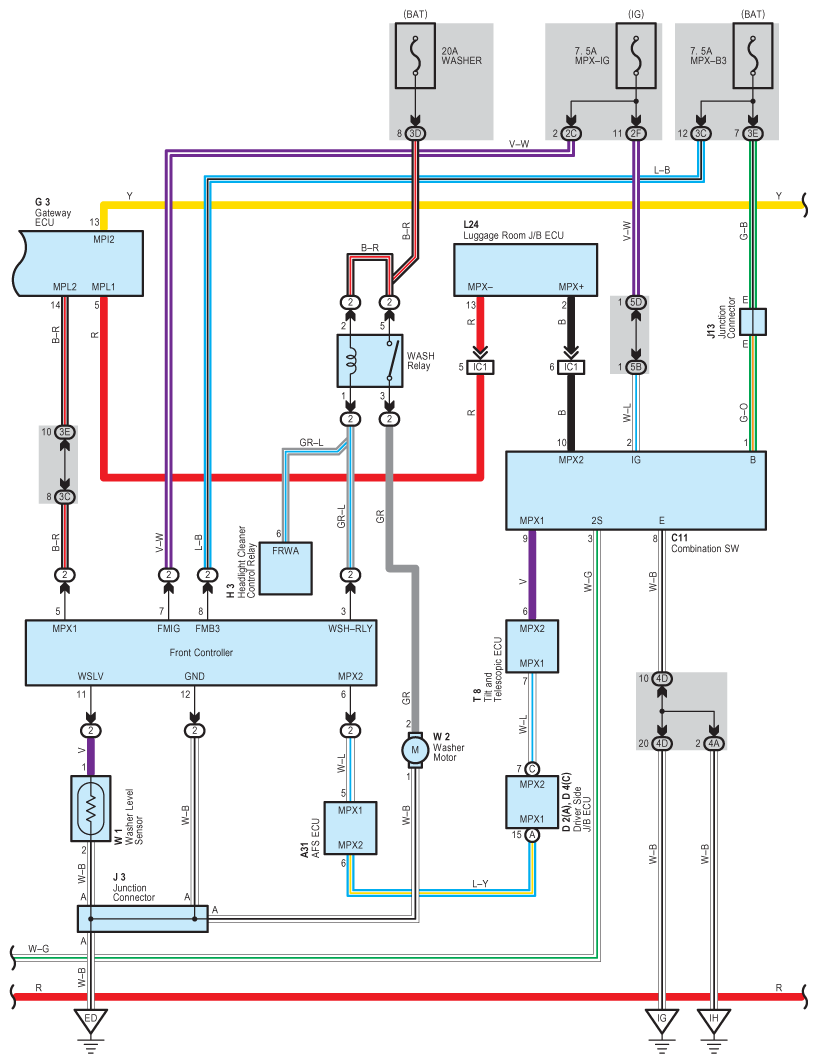

Fig 2: Wiper And Washer - Circuit Diagram (2 Of 3)
G07612033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

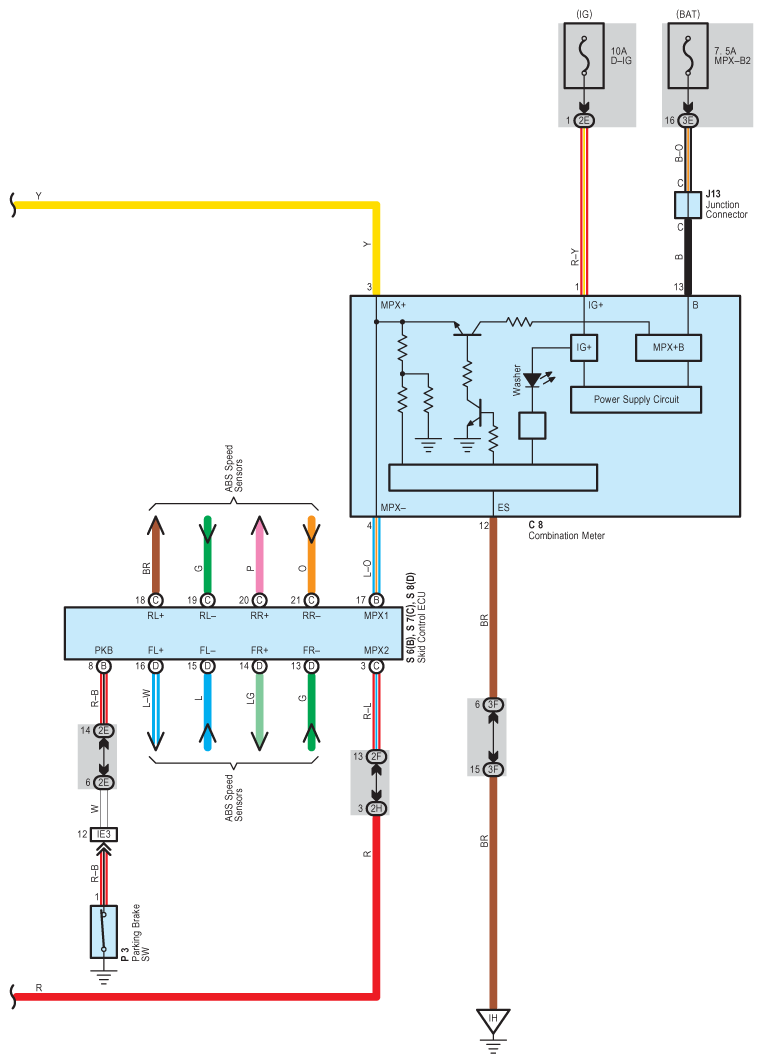

Fig 3: Wiper And Washer - Circuit Diagram (3 Of 3)
G07612034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
