Intake Manifold: Components

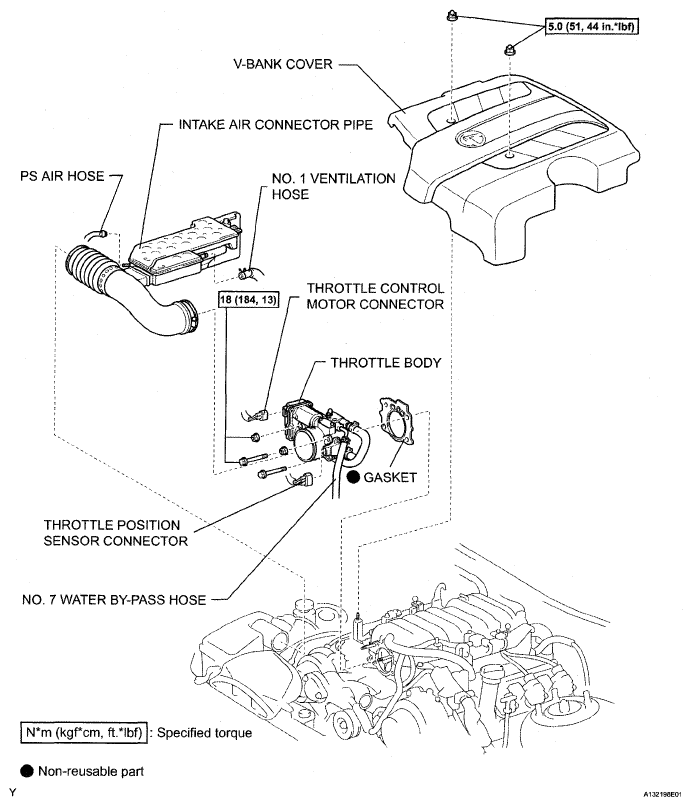

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 4)
G05289265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

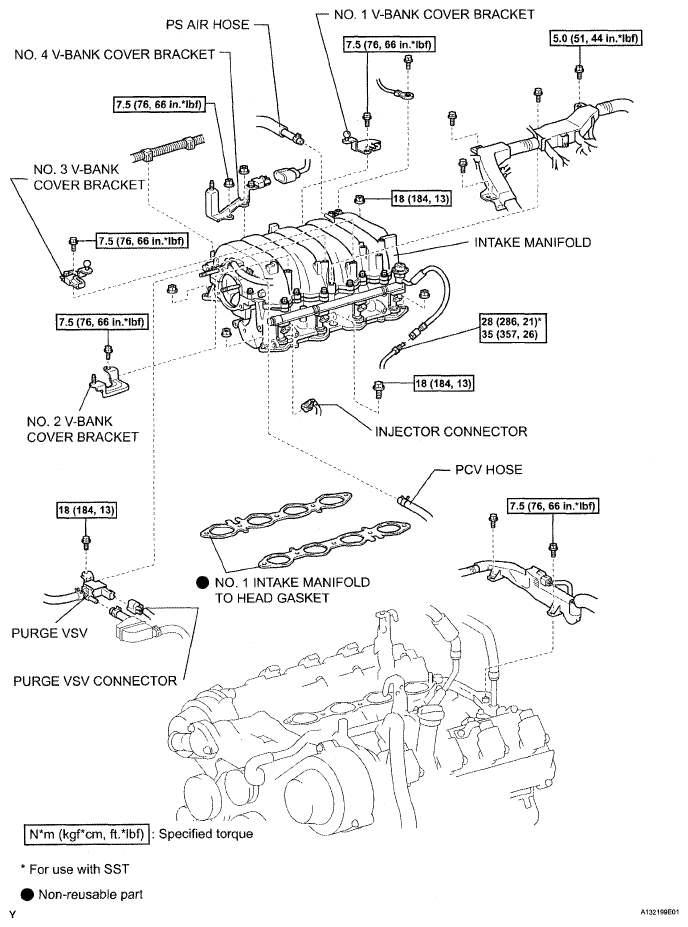

Fig 2: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 4)
G05289266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

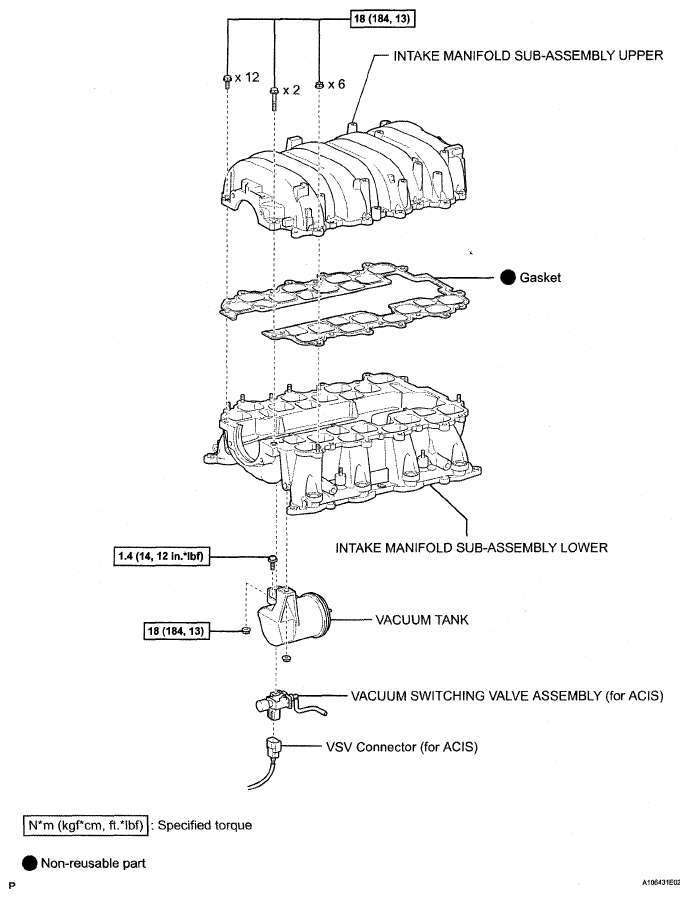

Fig 3: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 4)
G05289267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

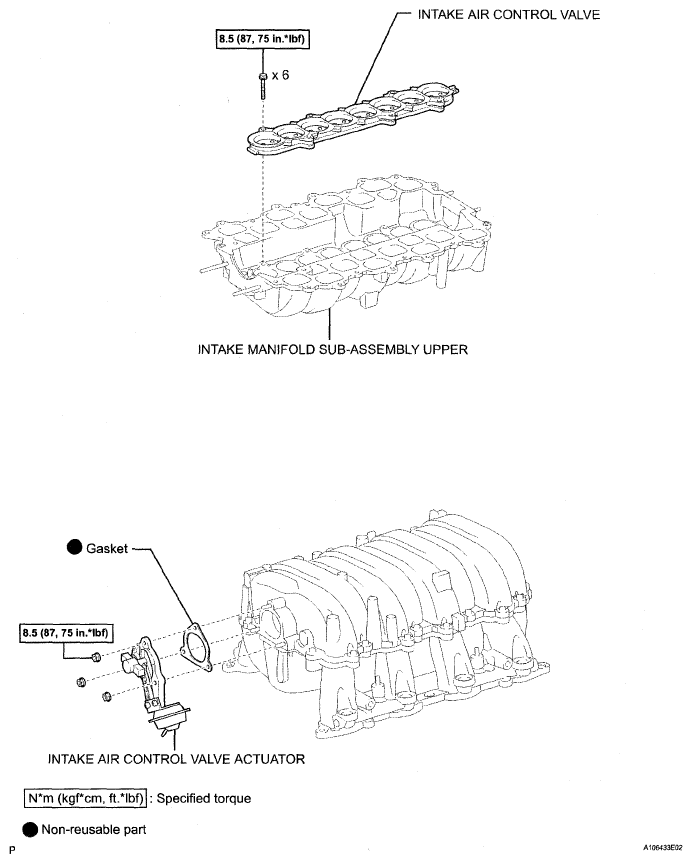

Fig 4: Identifying Intake Manifold Replacement Components With Torque Specifications (4 Of 4)
G05289268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
