Lexus
>>
2008
>>
SC 430
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Intake
>>
Intake System
>>
System Diagram
System Diagram

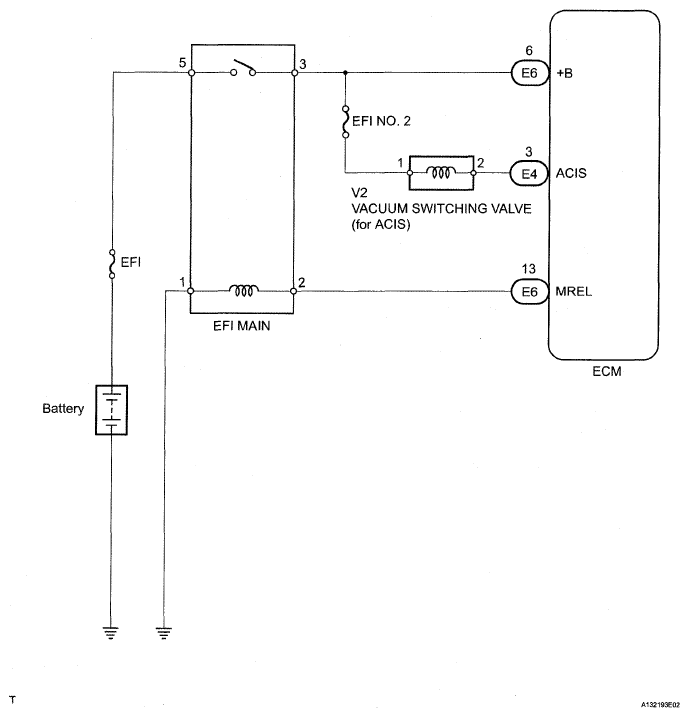

Fig 1: Intake System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

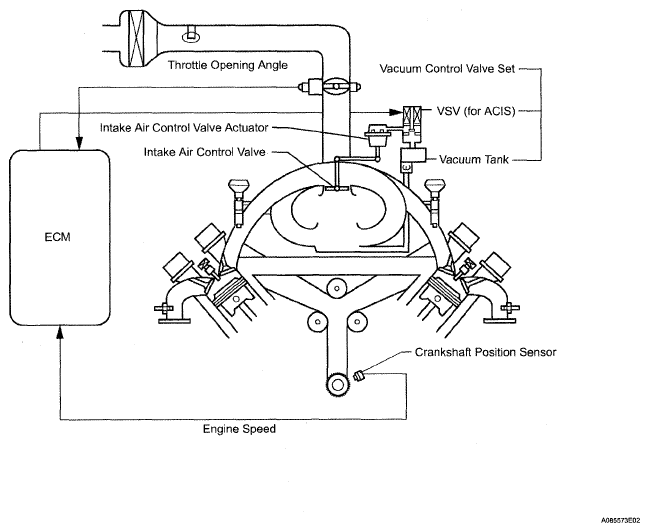

Fig 2: Intake System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
