Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

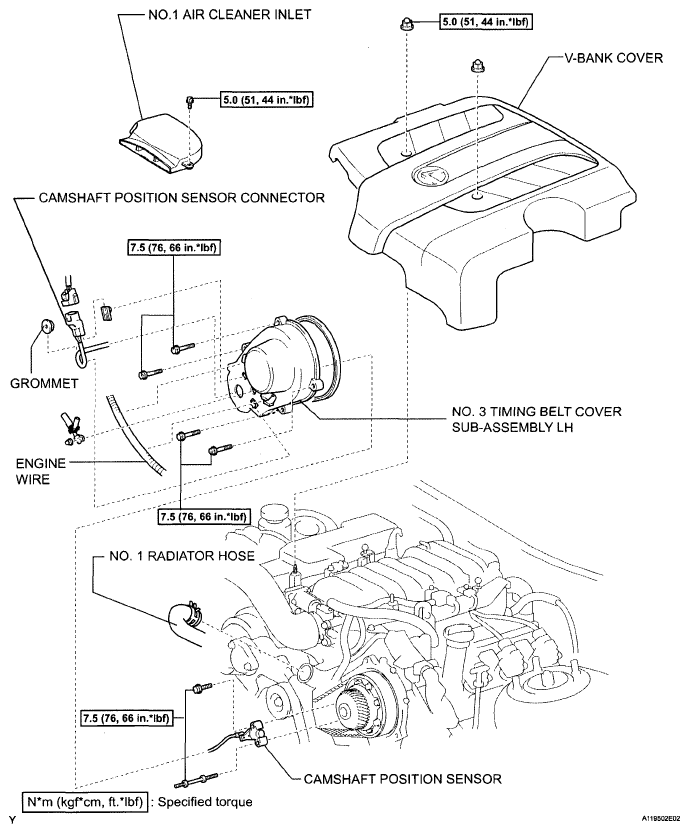

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G05838967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
