Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System >> Engine Coolant Temperature Sensor >> Components

Engine Coolant Temperature Sensor: Components

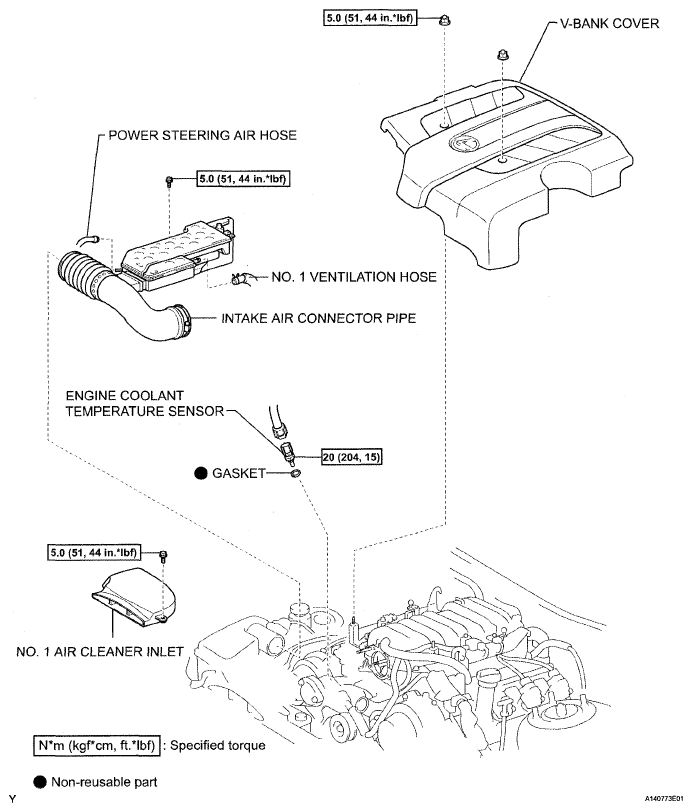

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G05291596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
