Home >> Lexus >> 2009 >> ES 350 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (Service Information) >> Transmission Control Cable Assembly >> Components >> Illustration

Transmission Control Cable Assembly: Components: Illustration

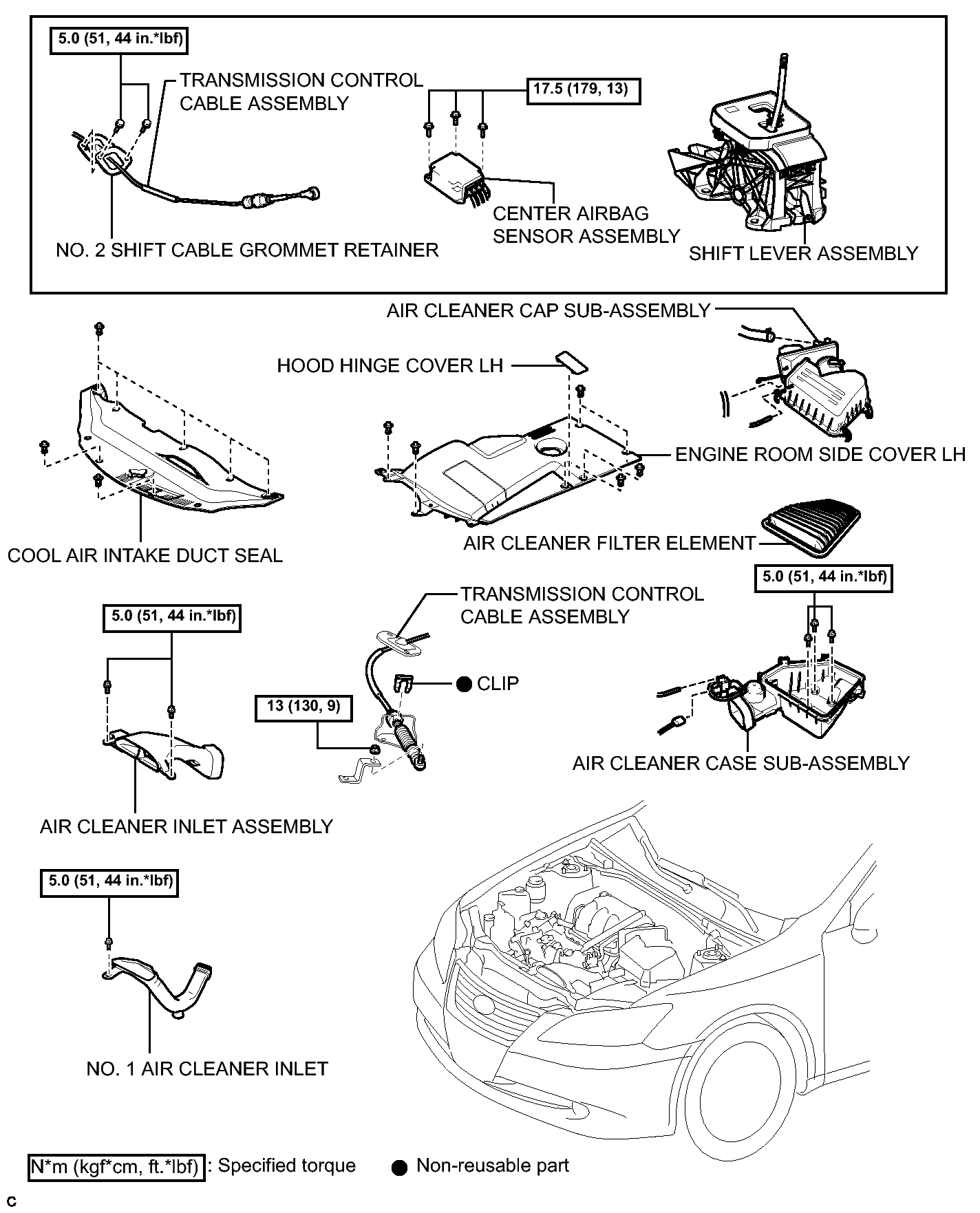

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications
GTY111432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
