Window Defogger System (Diagnostics)
>>
Window Defogger System
>>
System Diagram
>>
System Diagram
System Diagram

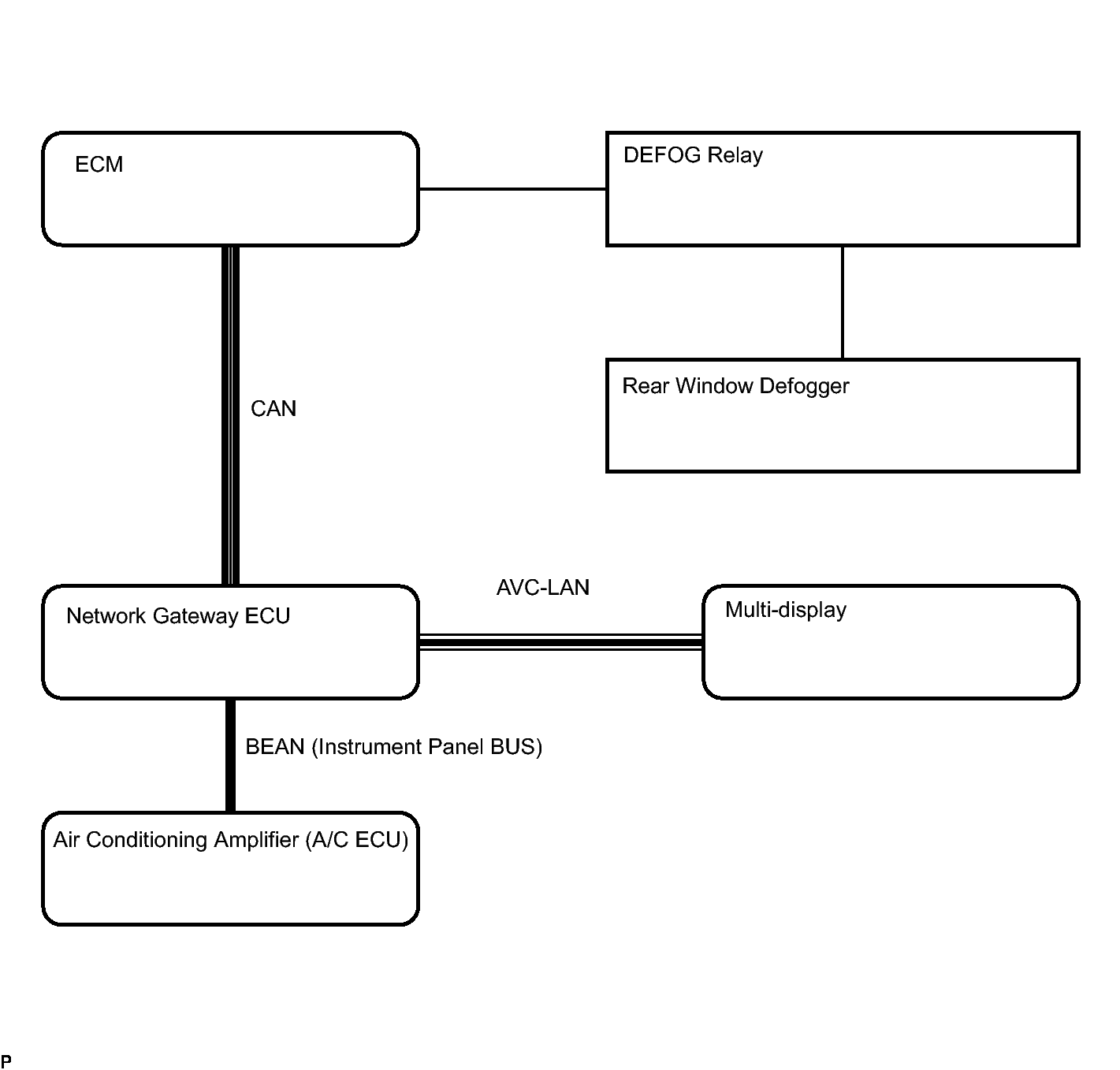

Fig 1: Window Defogger System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
Multi-display
Air conditioning amplifier (A/C ECU)
Rear defogger switch signal
BEAN / AVC-LAN
Air conditioning amplifier (A/C ECU)
ECM
Rear defogger switch signal
BEAN / CAN
