OEM System Circuits: 4WD: Notes

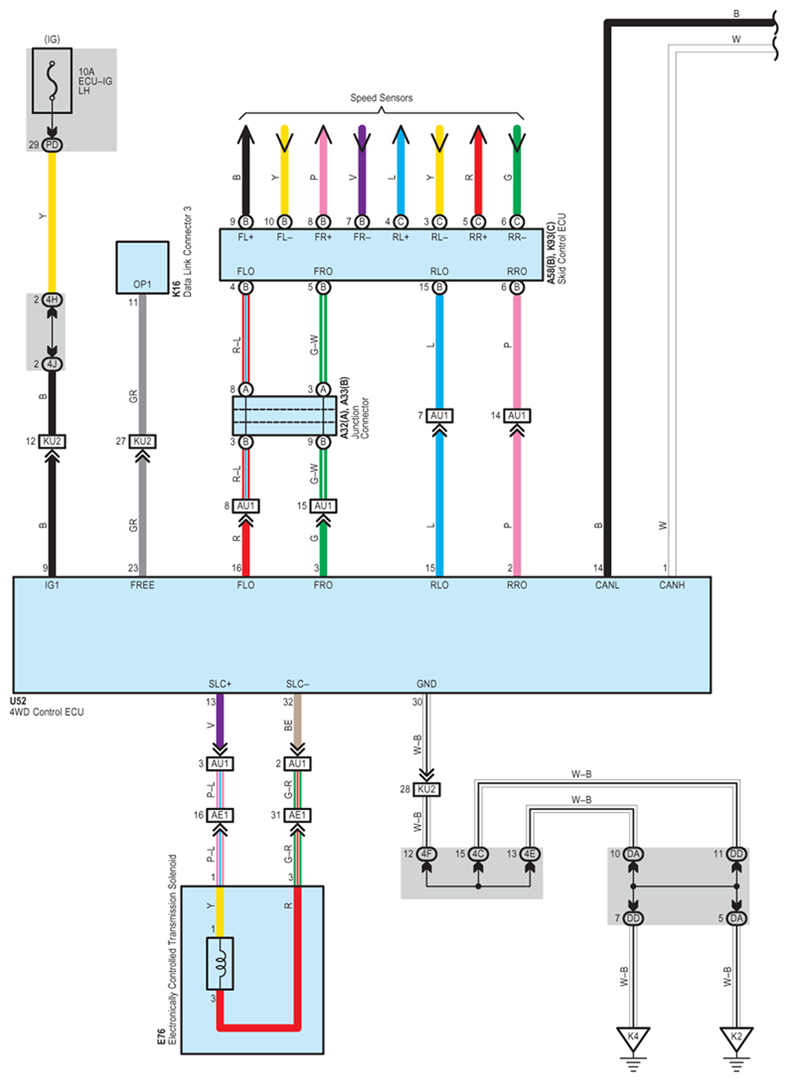

Fig 1: 4WD - Circuit Diagram (1 Of 4)
G07595674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

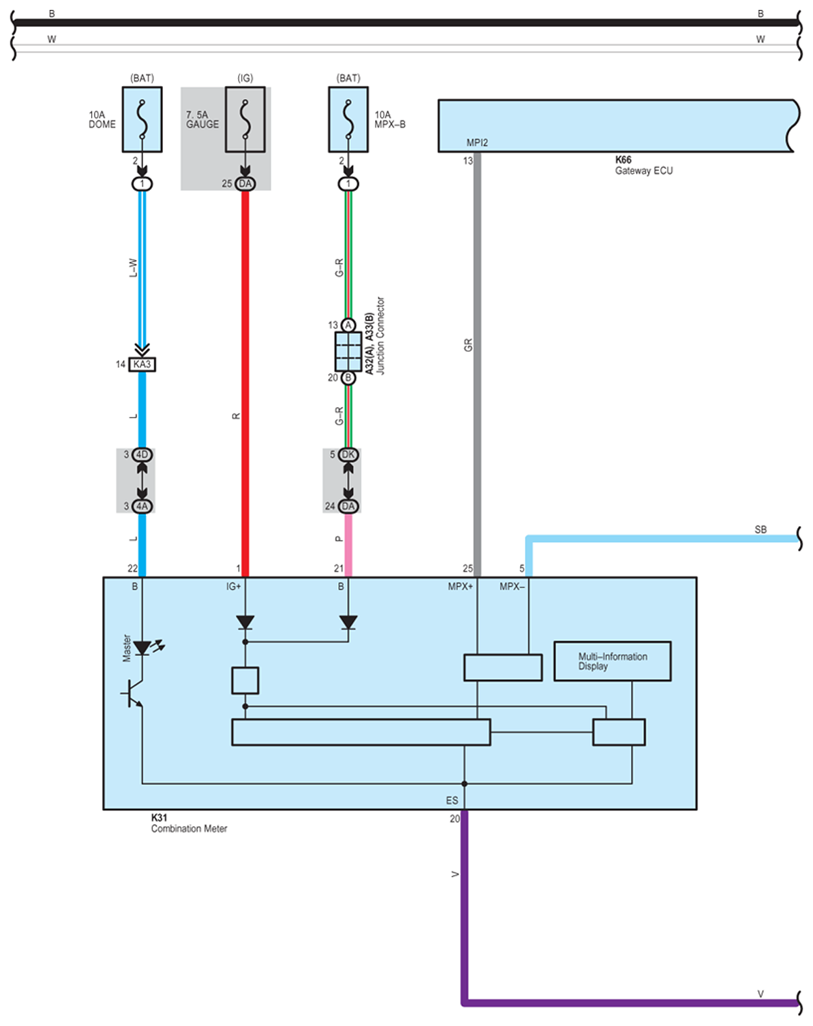

Fig 2: 4WD - Circuit Diagram (2 Of 4)
G07595675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

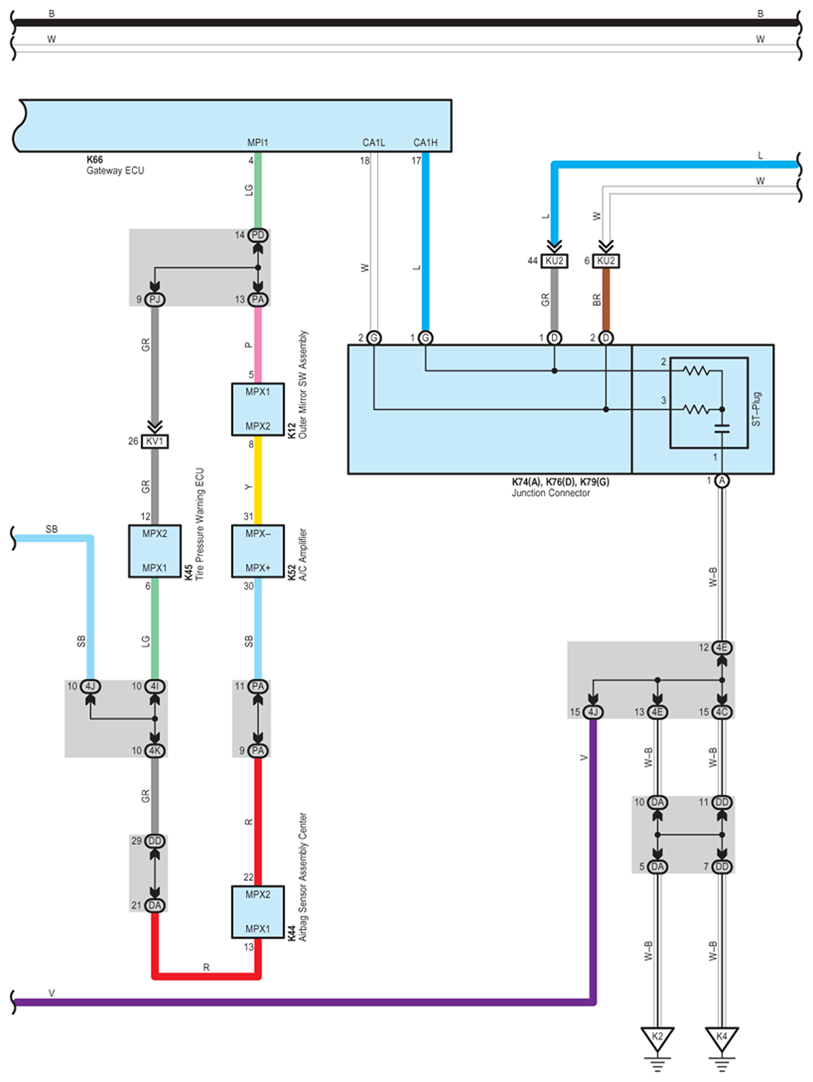

Fig 3: 4WD - Circuit Diagram (3 Of 4)
G07595676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

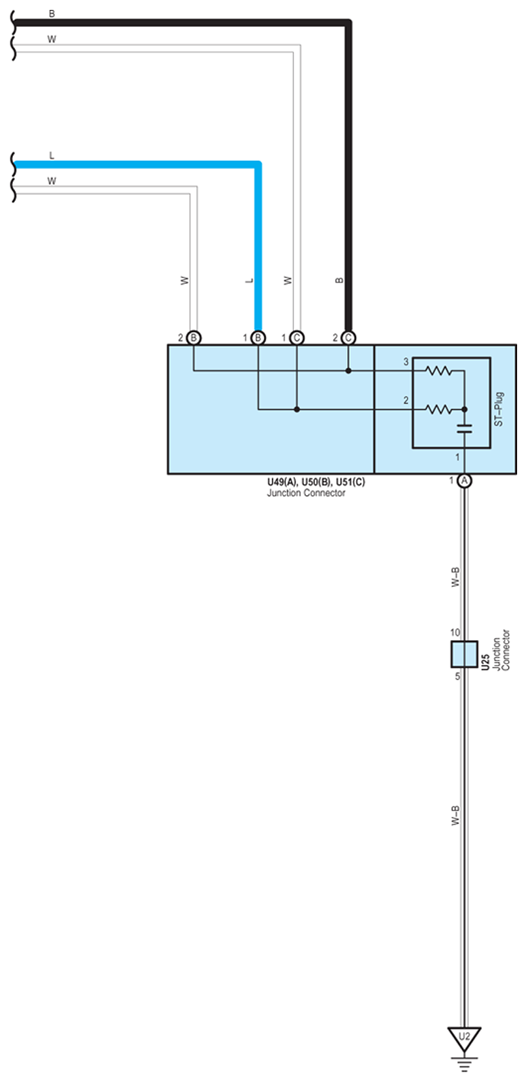

Fig 4: 4WD - Circuit Diagram (4 Of 4)
G07595677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
