Home >> Lexus >> 2009 >> GS 460 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Knock Sensor >> Components >> Illustration

Knock Sensor: Components: Illustration

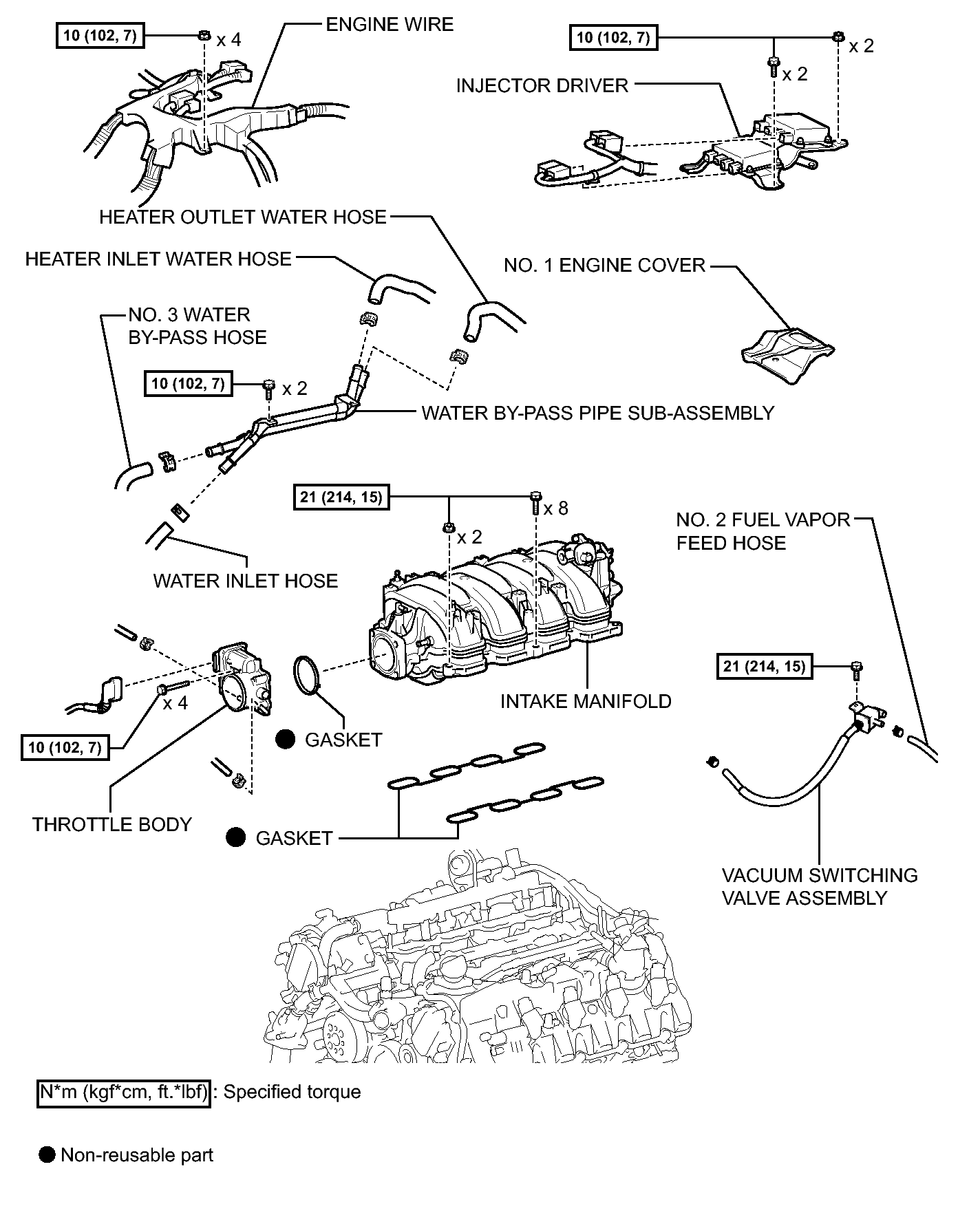

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY105552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

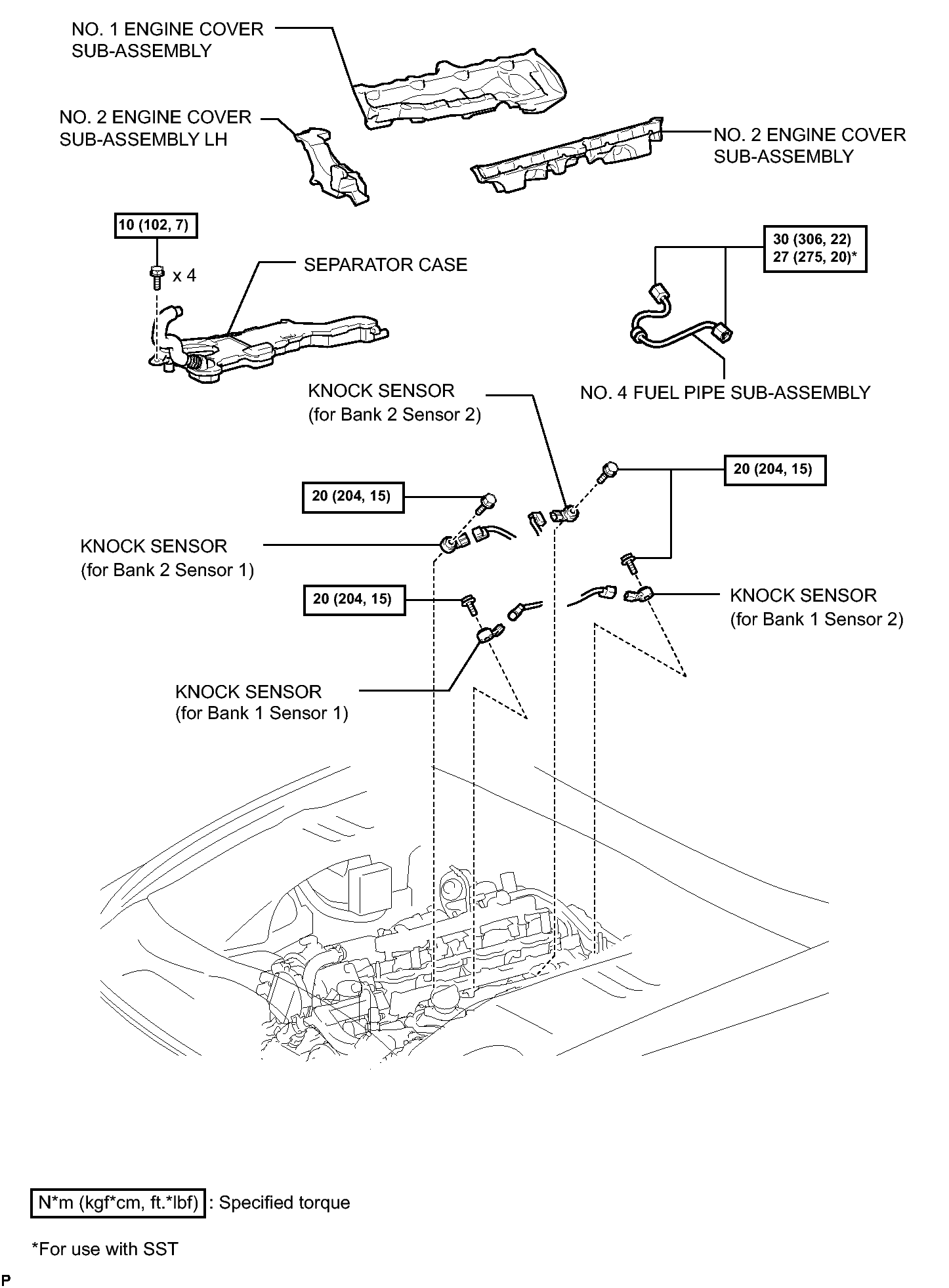

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY102055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
