Home >> Lexus >> 2009 >> GS 460 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> VVT Sensor >> Components >> Illustration

VVT Sensor: Components: Illustration

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY105701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

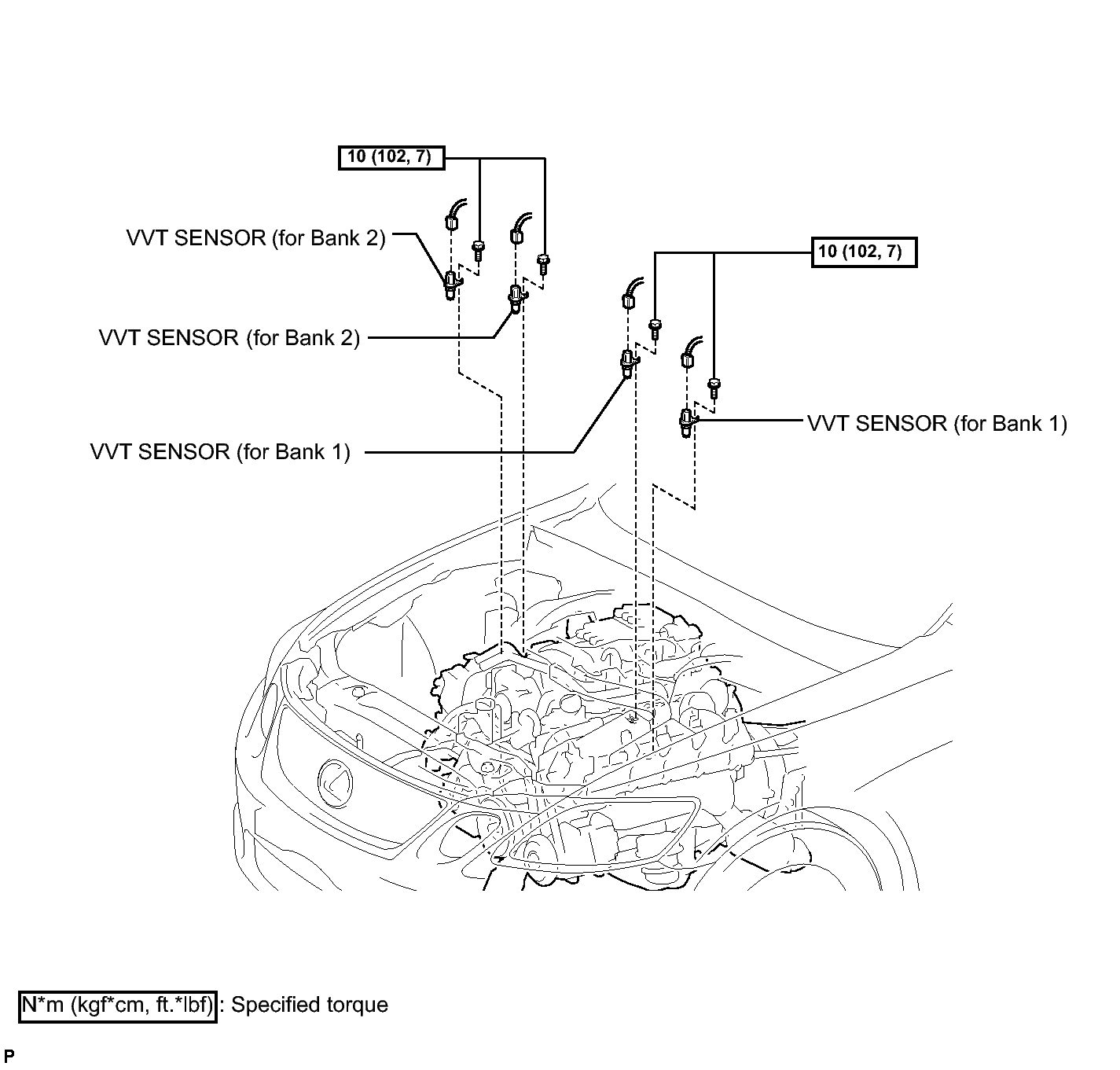

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY105561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
