Rear Air Conditioning: Notes

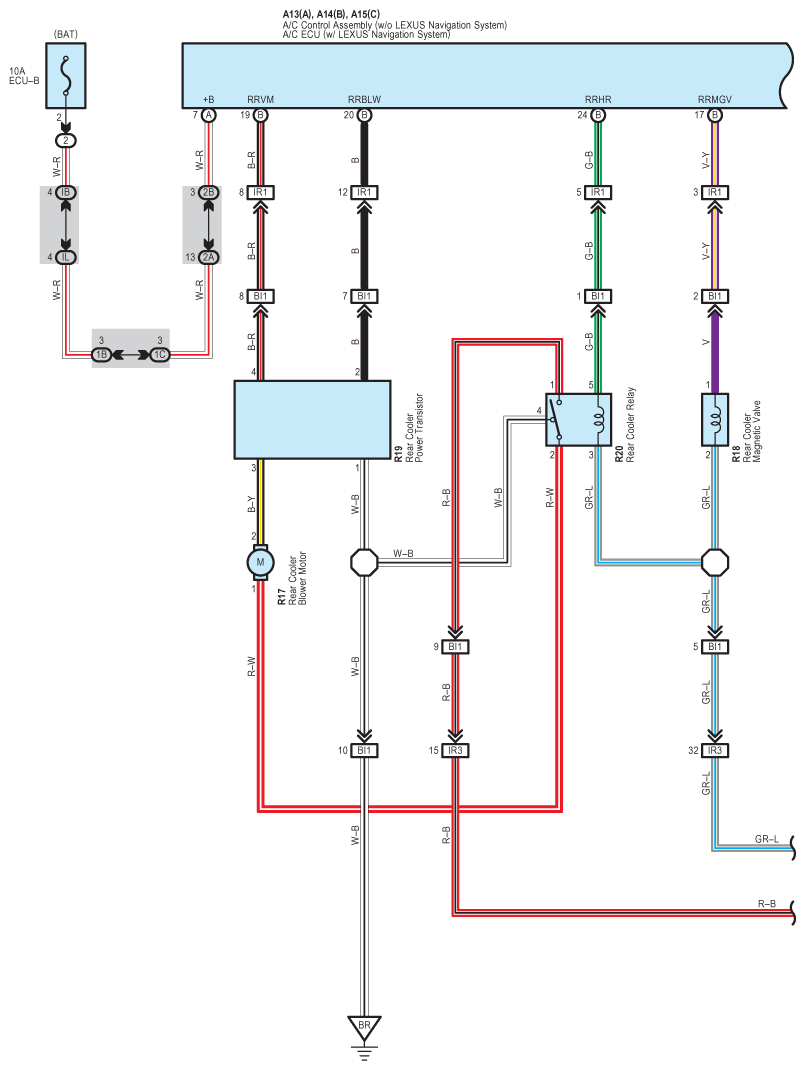

Fig 1: Rear Air Conditioning - Circuit Diagram (1 Of 2)
G07619971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

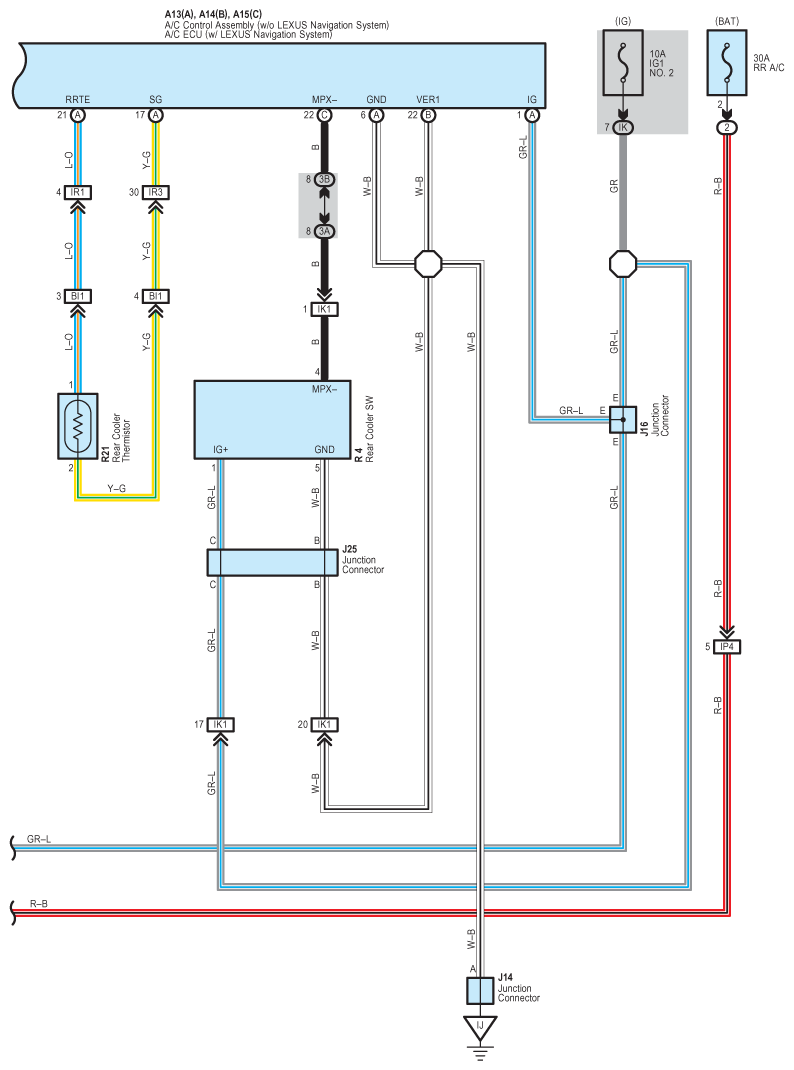

Fig 2: Rear Air Conditioning - Circuit Diagram (2 Of 2)
G07619972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
