Home >> Lexus >> 2009 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Starting >> Notes

OEM System Circuits: Starting: Notes

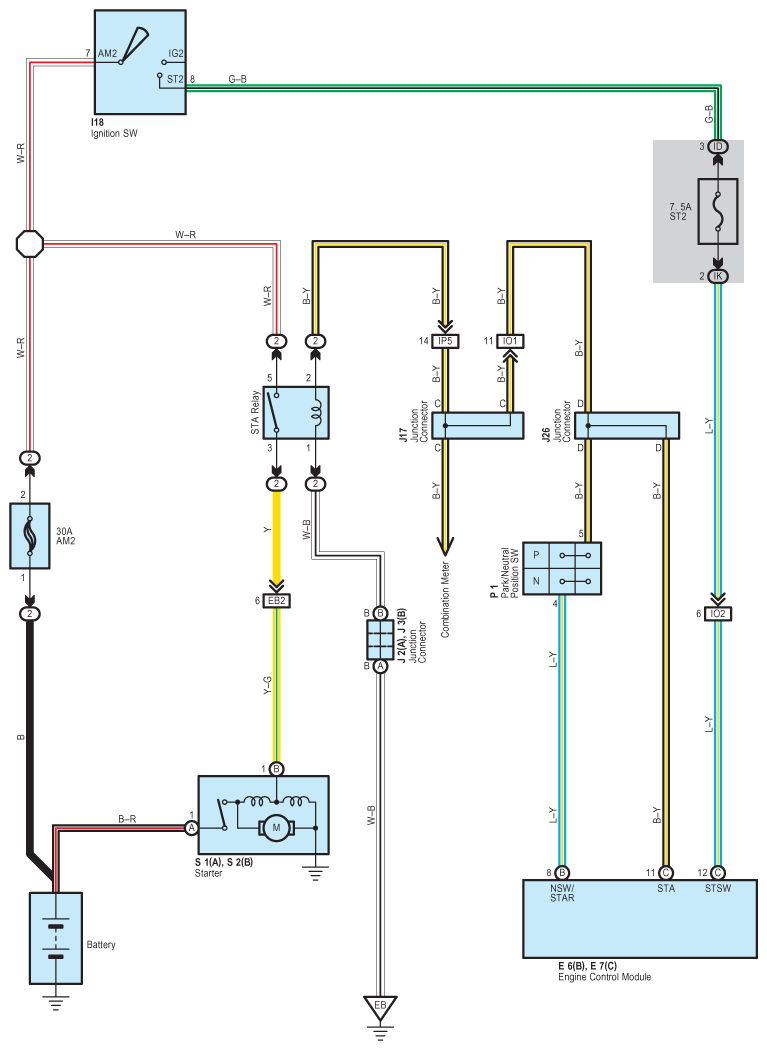

Fig 1: Starting - Circuit Diagram
G07619772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
