Engine Control (Service Information): ECM: Removal: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 1
  2. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 2
  3. REMOVE ECM COVER
    1. Remove the 3 bolts and ECM cover.
      Fig 1: Identifying ECM Cover Bolts
      GTY133431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove all water on and around the ECM cover.
      • Perform the inspection indoors to avoid rain.
      • Be sure to prevent water intrusion to the ECM (connectors and screw parts).
  4. REMOVE ECM
    1. Disconnect the ECM connectors.
      1. Using a screwdriver, disconnect the connector holder.

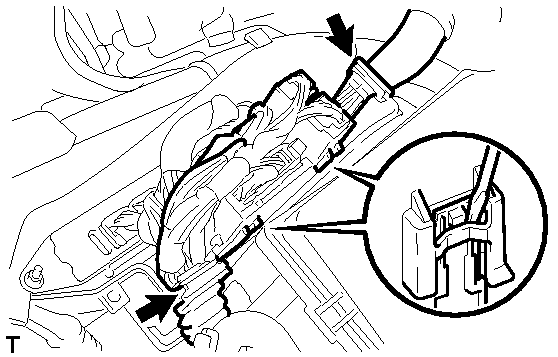

        Fig 2: Identifying Connector Holder
        GTY145867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 6 ECM connectors.
    2. Remove the 2 nuts and ECM.
      Fig 3: Identifying ECM Nuts
      GTY145339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
