OEM System Circuits: 4WD: Notes

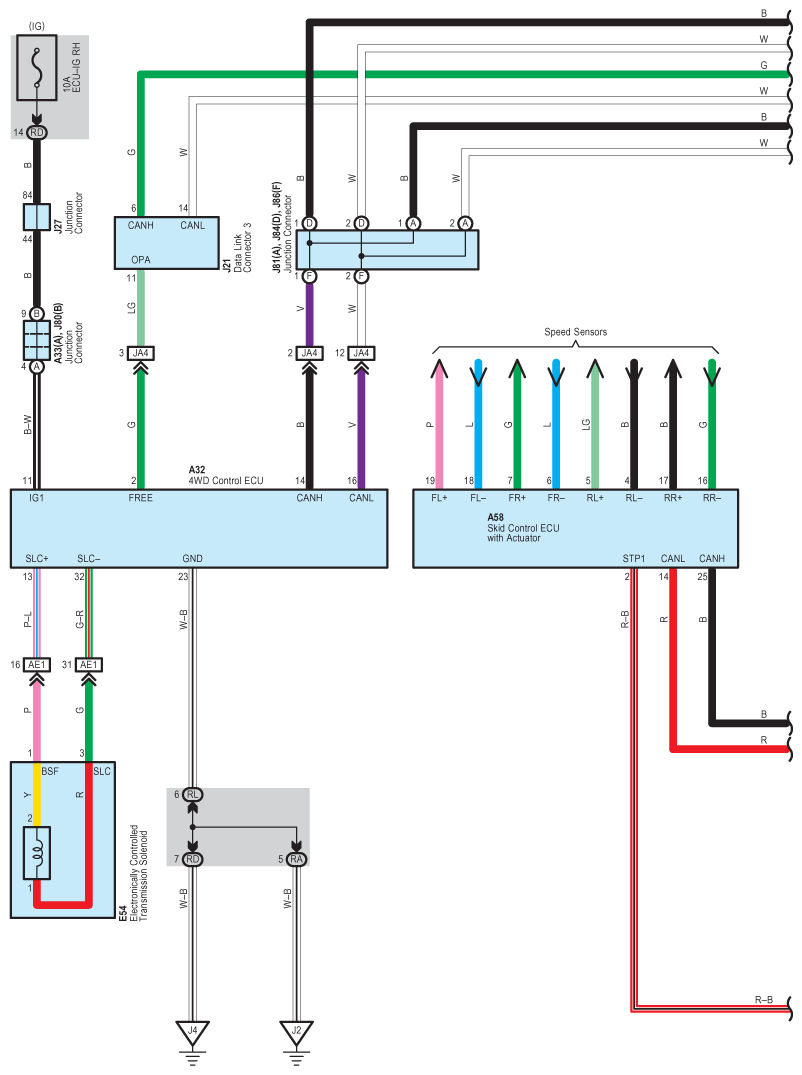

Fig 1: 4WD - Circuit Diagram (1 Of 3)
G07588980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

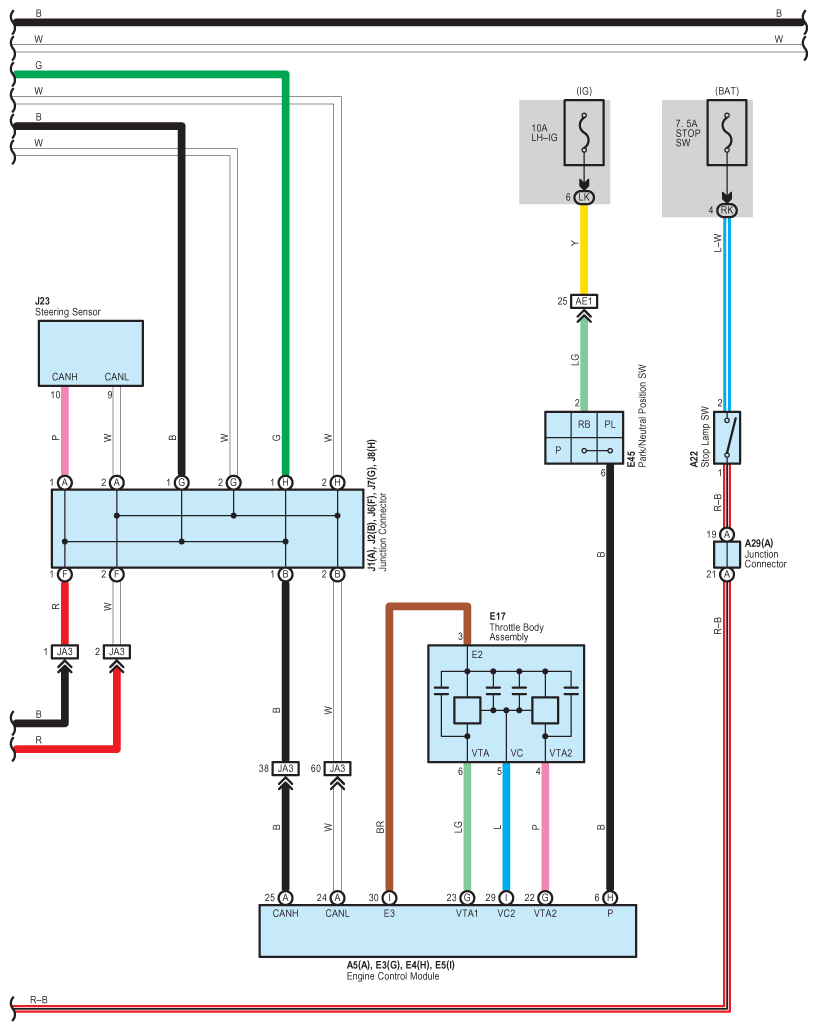

Fig 2: 4WD - Circuit Diagram (2 Of 3)
G07588981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

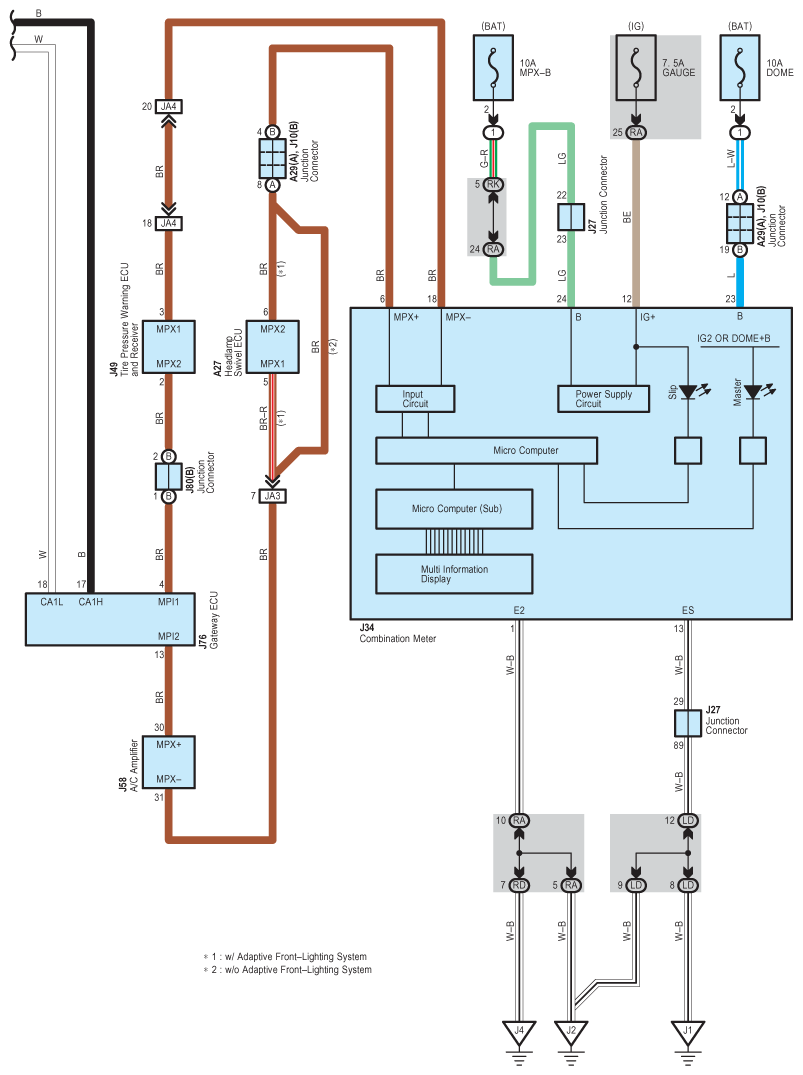

Fig 3: 4WD - Circuit Diagram (3 Of 3)
G07588982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
