Multiplex Communication System (AVC-CAN): Notes

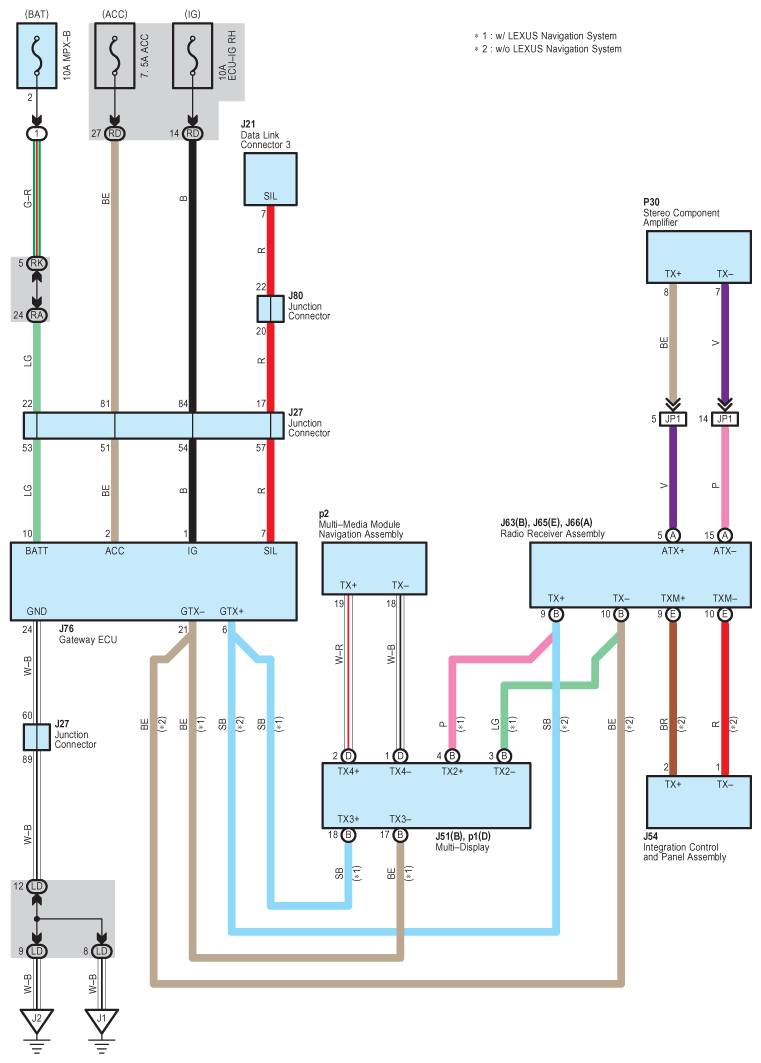

Fig 1: Multiplex Communication System (AVC-CAN) - Circuit Diagram
G07588811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
