System Diagram

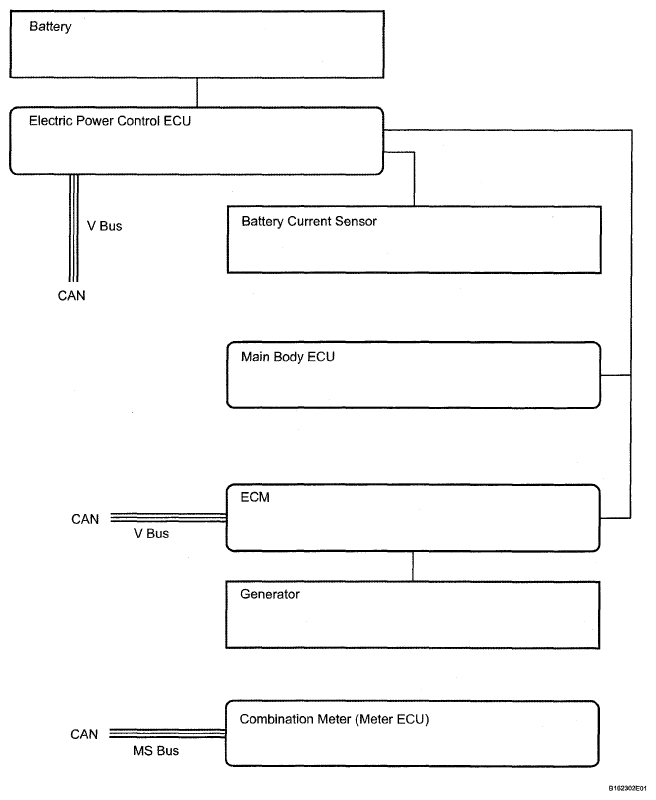

Fig 1: Electric Power Control System Diagram
G04945718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
ECM Electric power control ECU Generator signal CAN
Electric power control ECU Combination meter (Meter ECU)
  • Electrical equipment operation limit signal
  • Battery voltage drop signal
  • Generator check signal
 CAN
