STARTER (for AWD): Components

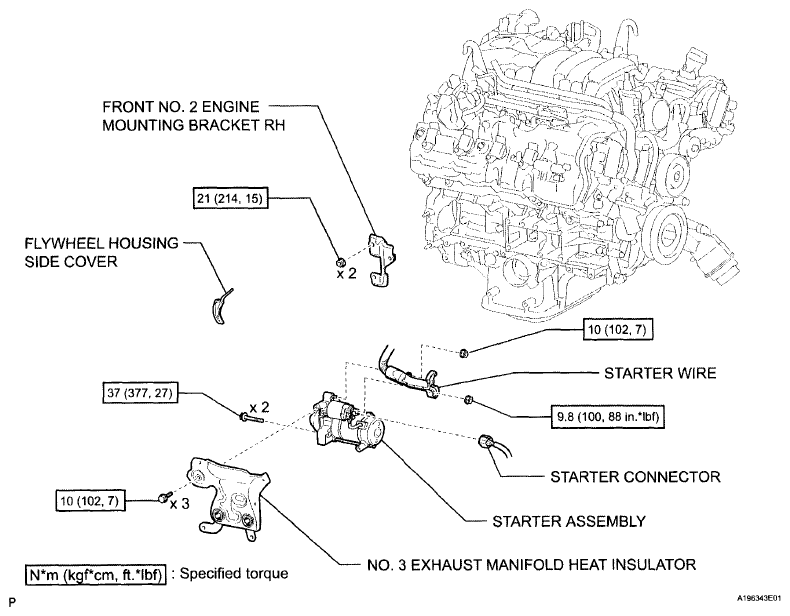

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)
G06196684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

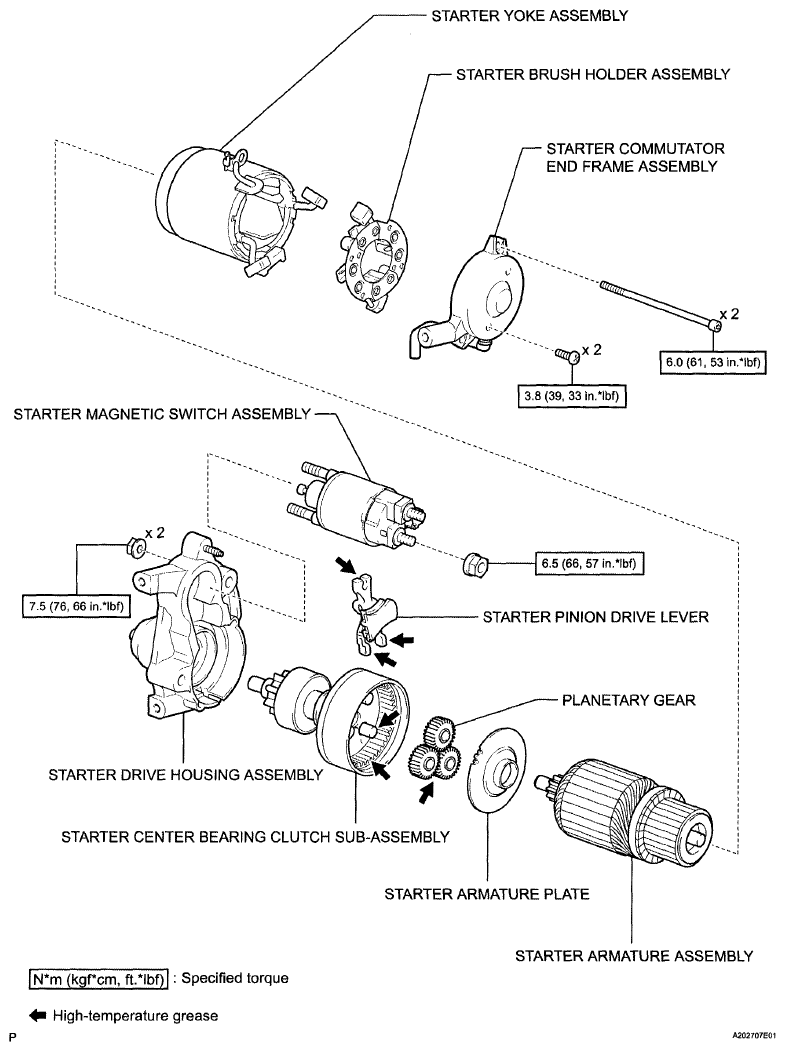

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)
G06196685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
