Engine Control System - System Testing; Component Inspection, Removal & Installation: ECM: Components

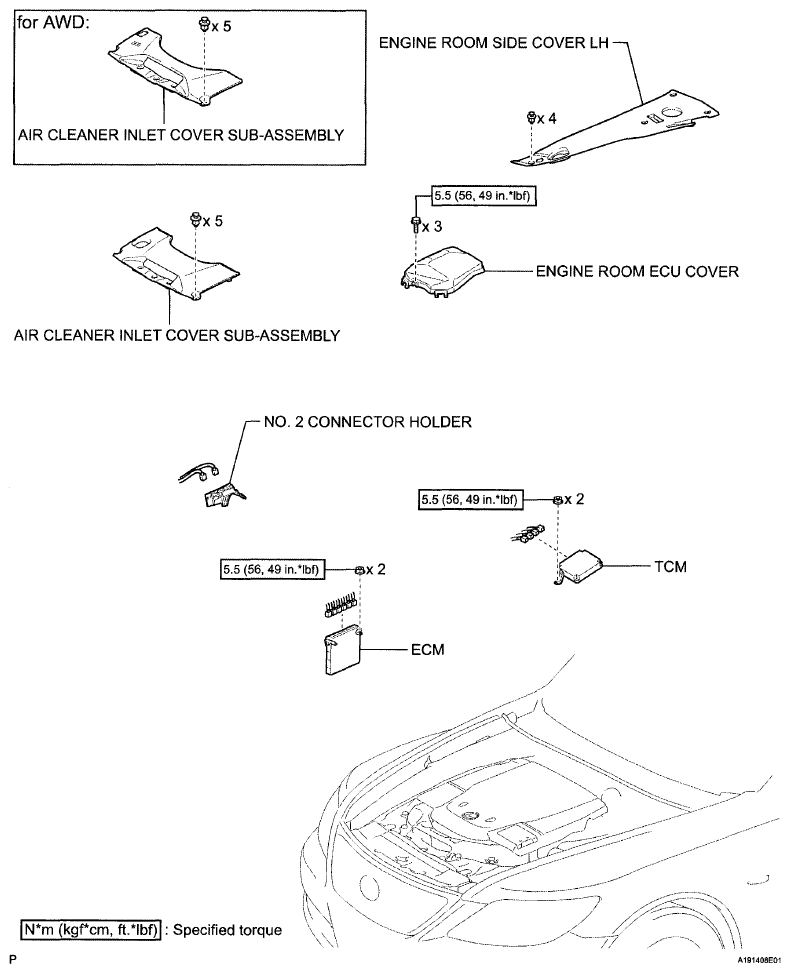

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
