Throttle Body: Components

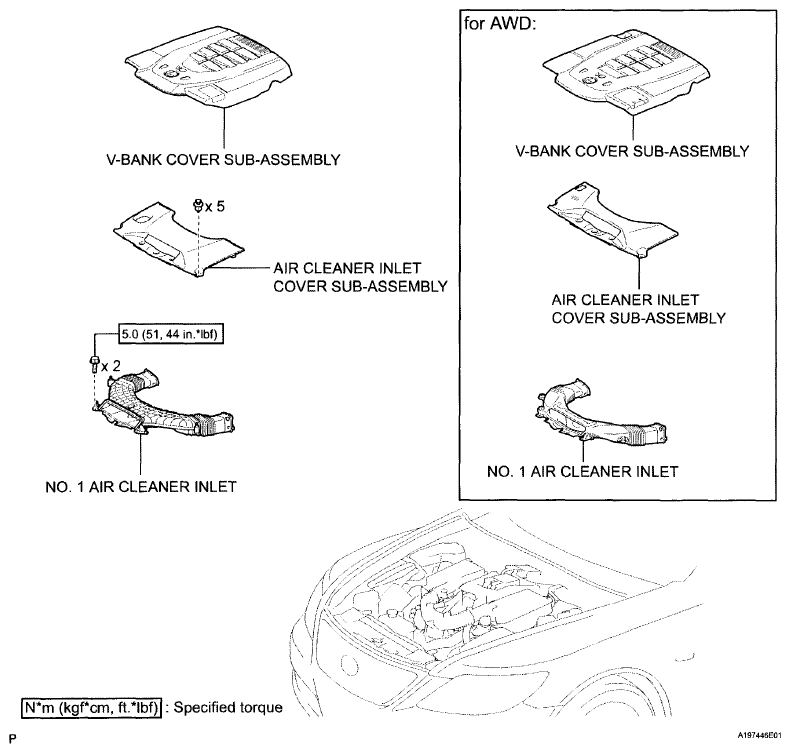

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G06190140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

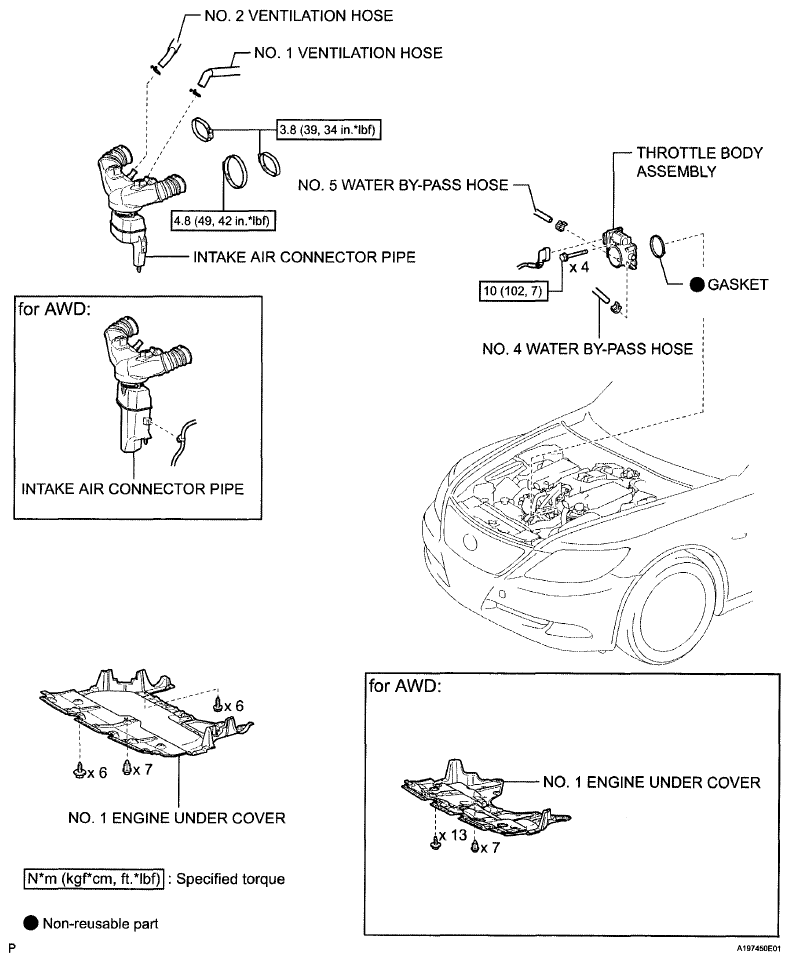

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G06190141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
