Home >> Lexus >> 2009 >> LS 460 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (Aa80F) >> Automatic Transmission Assembly >> Components

Automatic Transmission Assembly: Components

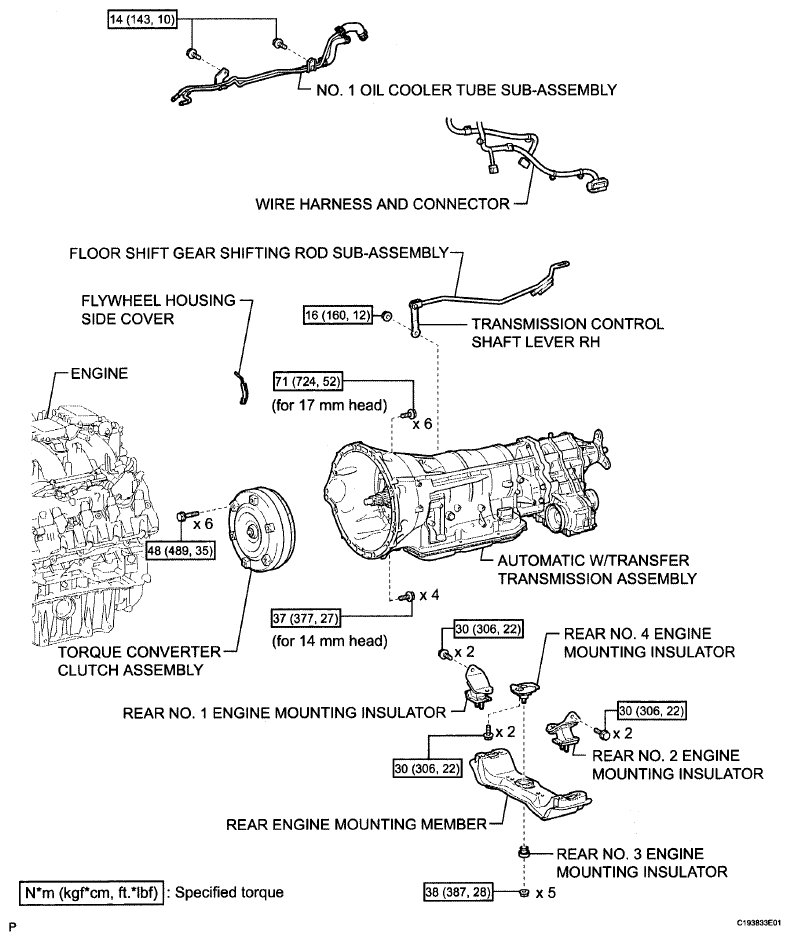

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications

G06191396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
