Home >> Lexus >> 2009 >> LS 460 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle (Aa80F) >> Speed Sensor >> Components

Speed Sensor: Components

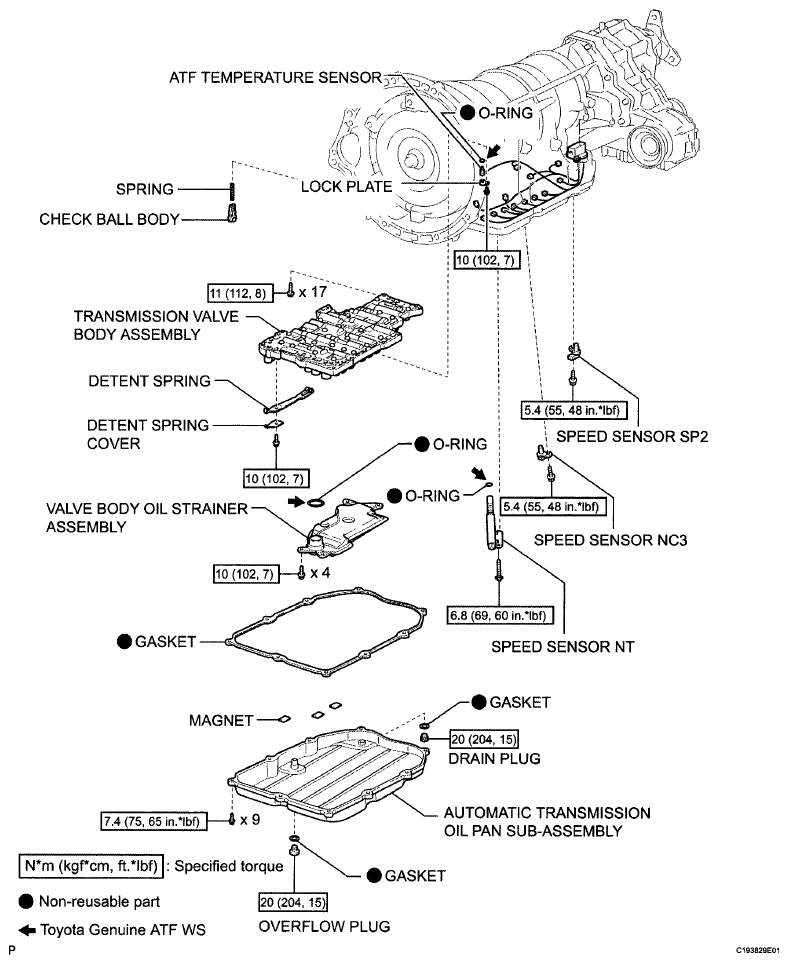

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G06191254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
