Floor Shift Assembly: Components

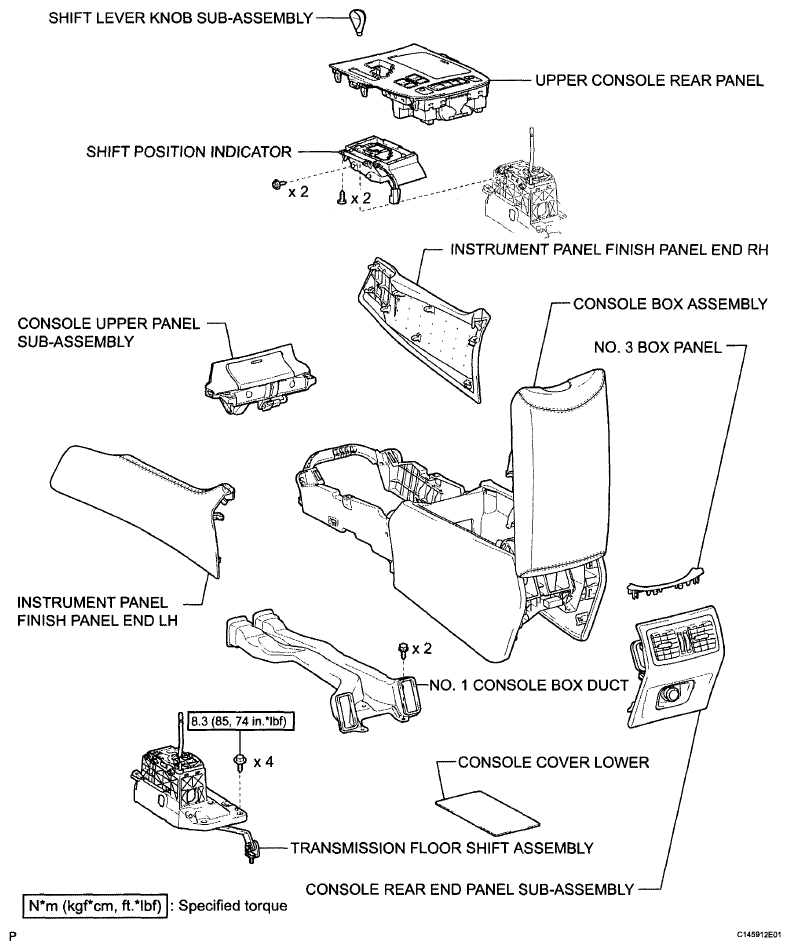

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

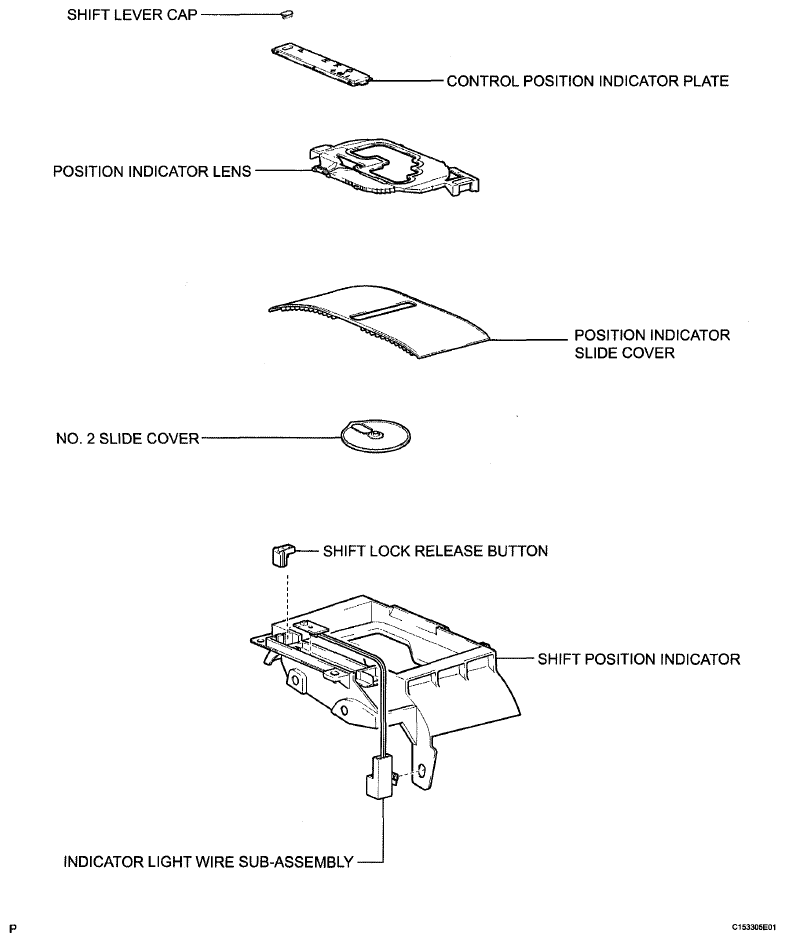

Fig 2: Identifying Floor Shift Assembly Replacement Components (2 Of 2)
