Navigation Antenna: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Navigation Antenna Components (1 Of 2)
G05784501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

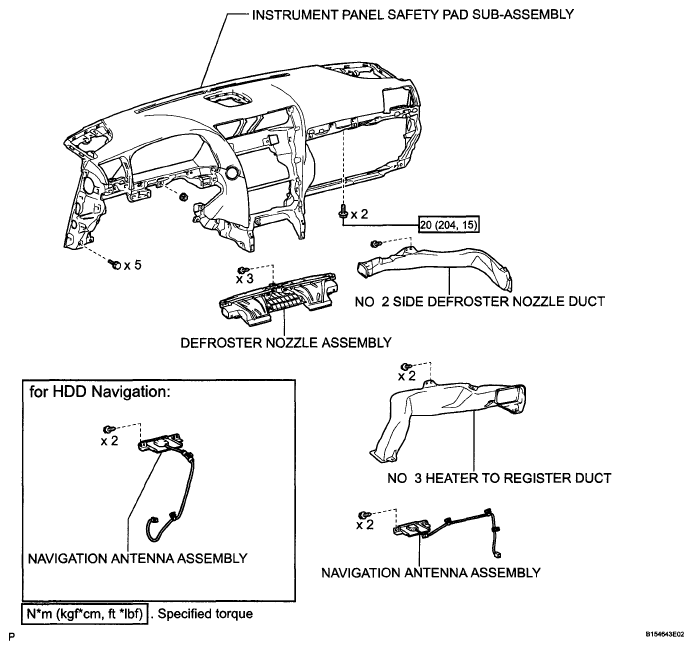

Fig 2: Navigation Antenna Replacement Components With Torque Specifications (2 Of 2)
G05784417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
