Clock (w/ LEXUS Navigation System): Notes

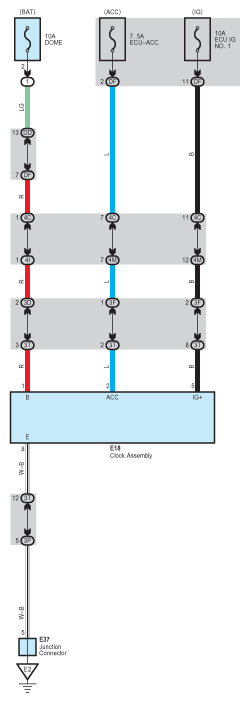

Fig 1: Clock (w/ Lexus Navigation System) - Circuit Diagram

G07550583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
