Rear Window Defogger
>>
Notes
Rear Window Defogger: Notes

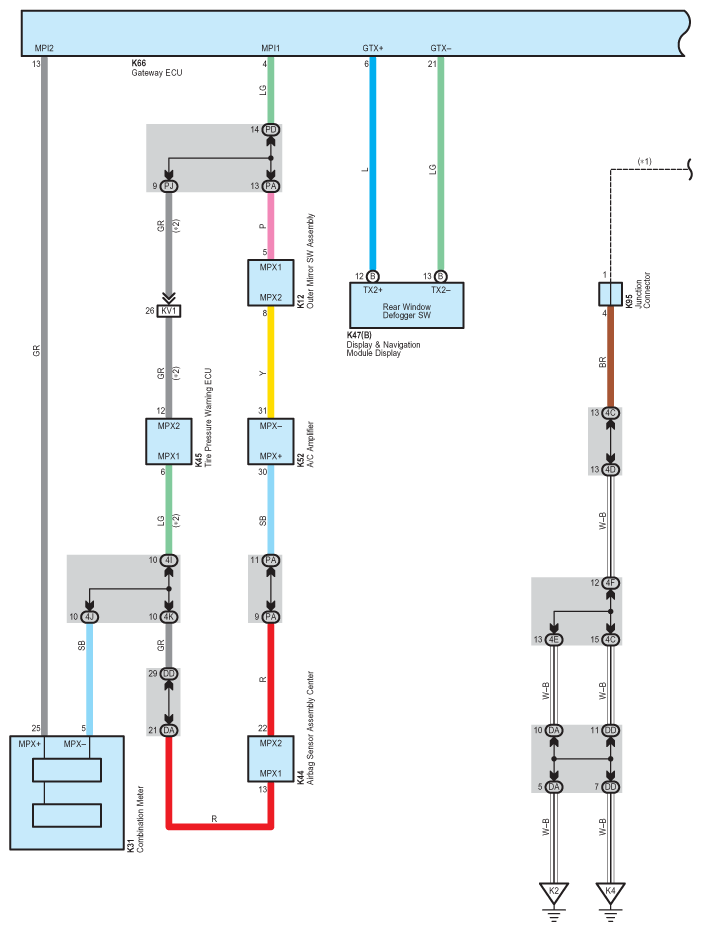

Fig 1: Rear Window Defogger - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

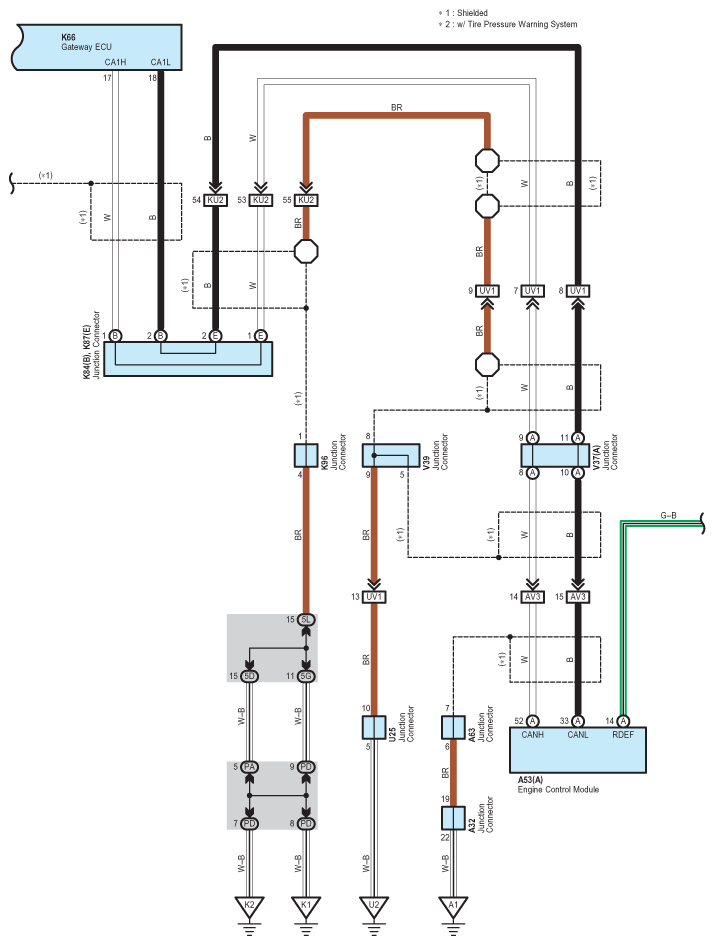

Fig 2: Rear Window Defogger - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

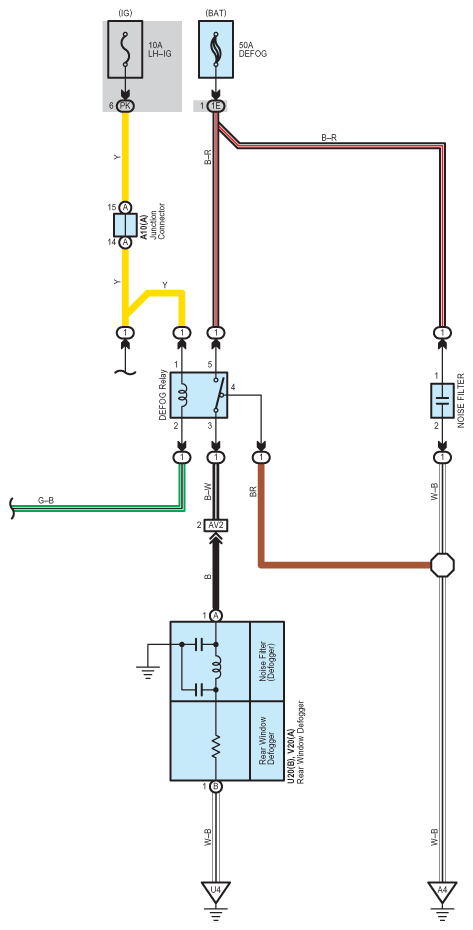

Fig 3: Rear Window Defogger - Wiring Diagram (3 Of 3)
