Sliding Roof: Notes

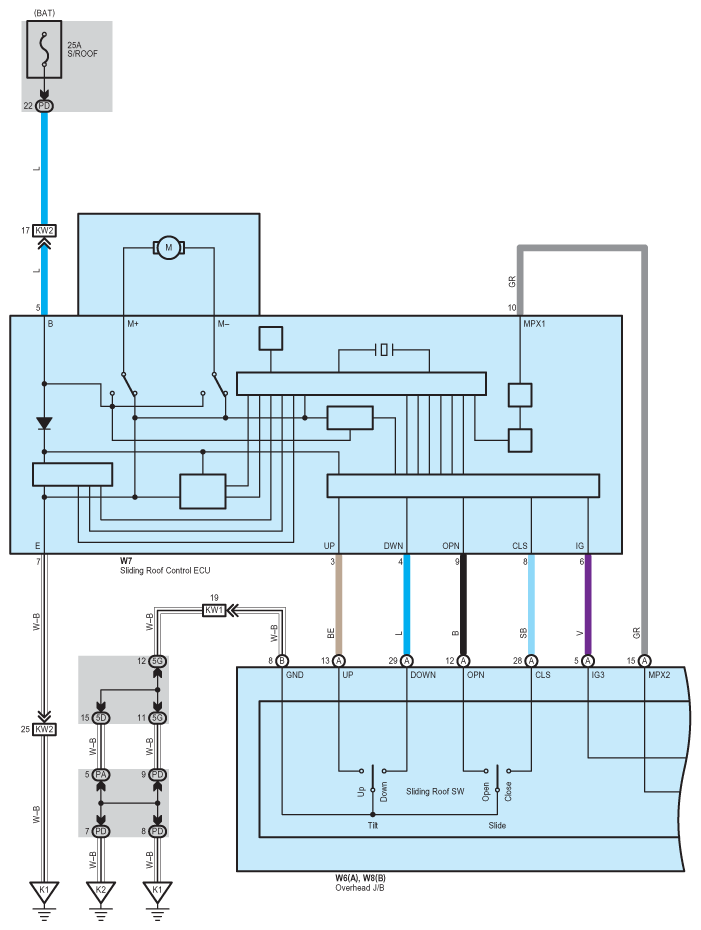

Fig 1: Sliding Roof - Wiring Diagram (1 Of 4)
G07558018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof - Wiring Diagram (2 Of 4)
G07558019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

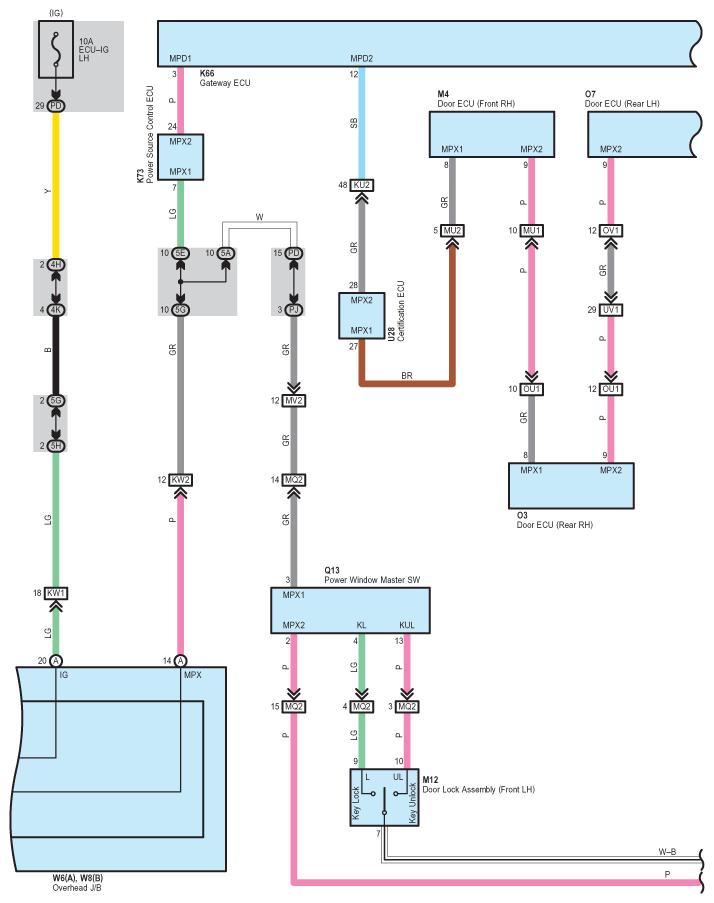

Fig 3: Sliding Roof - Wiring Diagram (3 Of 4)
G07558020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

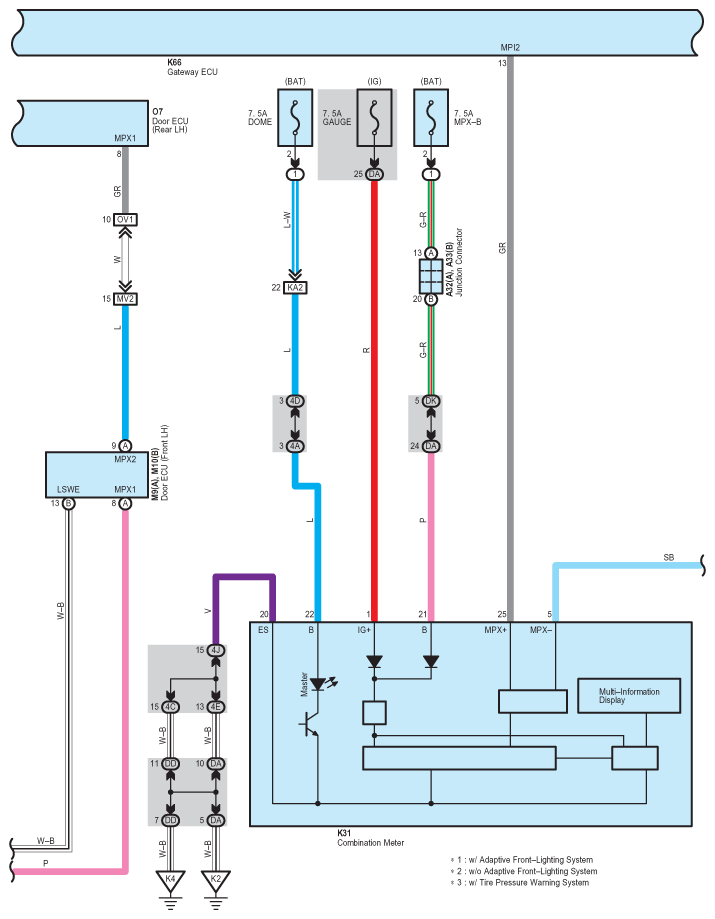

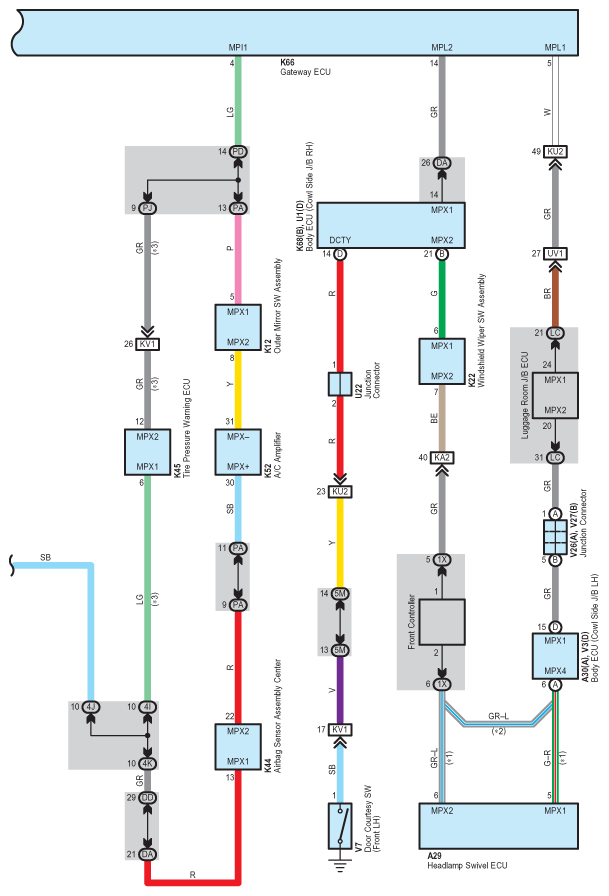

Fig 4: Sliding Roof - Wiring Diagram (4 Of 4)
G07558021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
