Stop Light: Notes

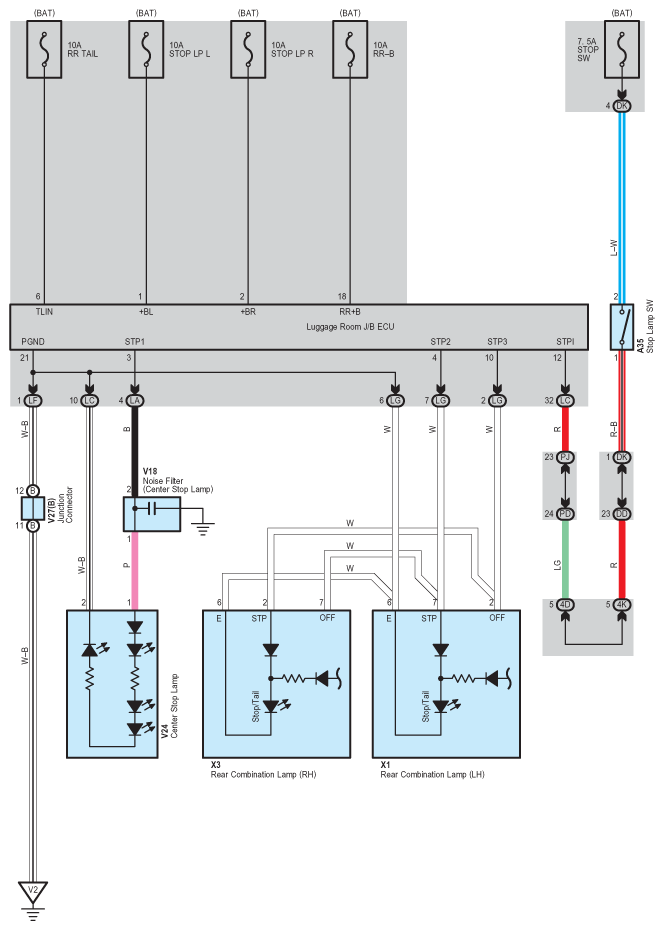

Fig 1: Stop Light - Wiring Diagram
G07557836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
