Tire Pressure Warning System: Notes

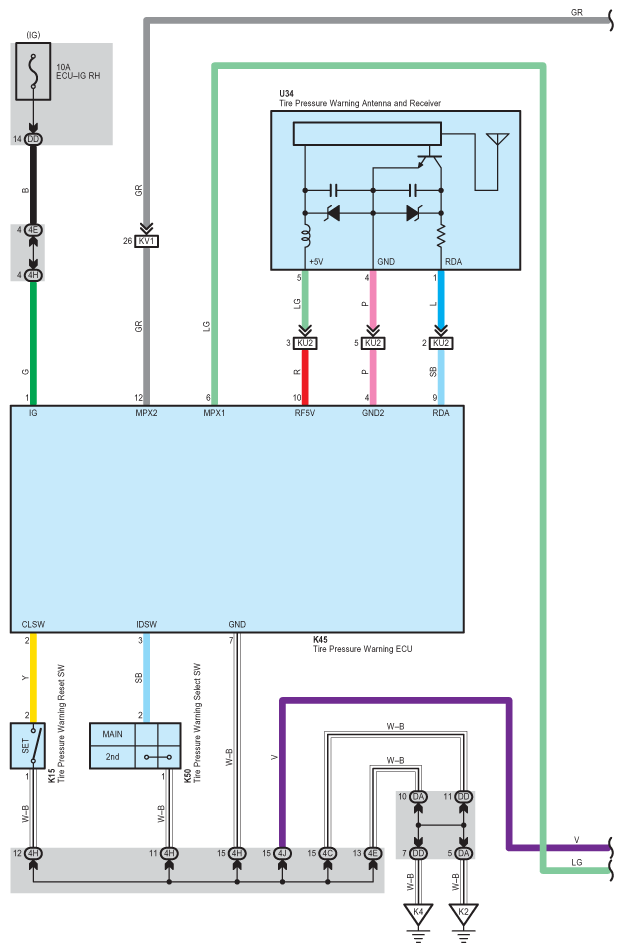

Fig 1: Tire Pressure Warning System - Wiring Diagram (1 Of 2)
G07558009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

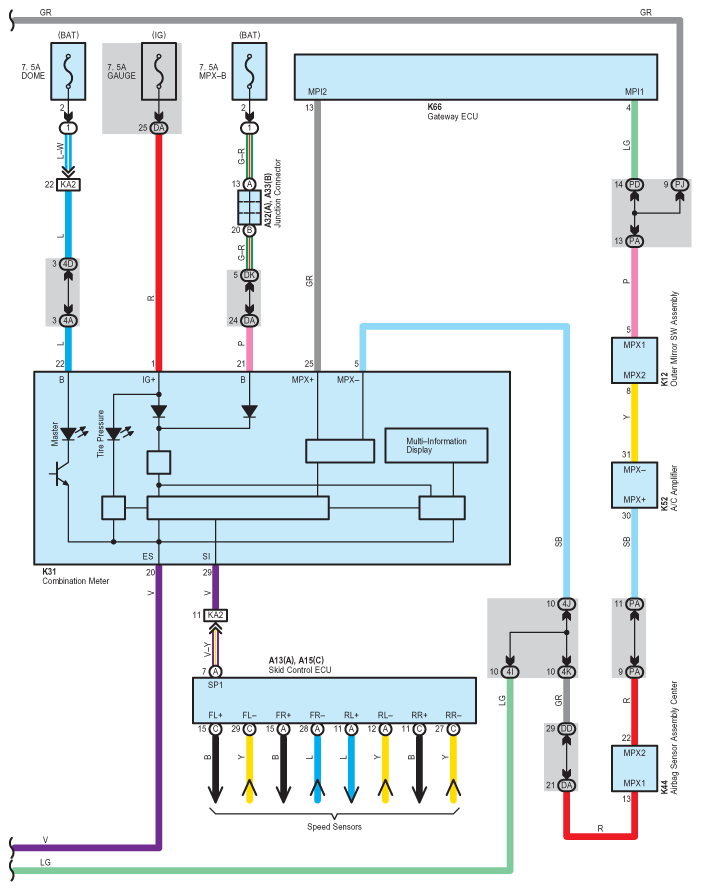

Fig 2: Tire Pressure Warning System - Wiring Diagram (2 Of 2)
G07558010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
