OEM System Circuits: EPS: Notes

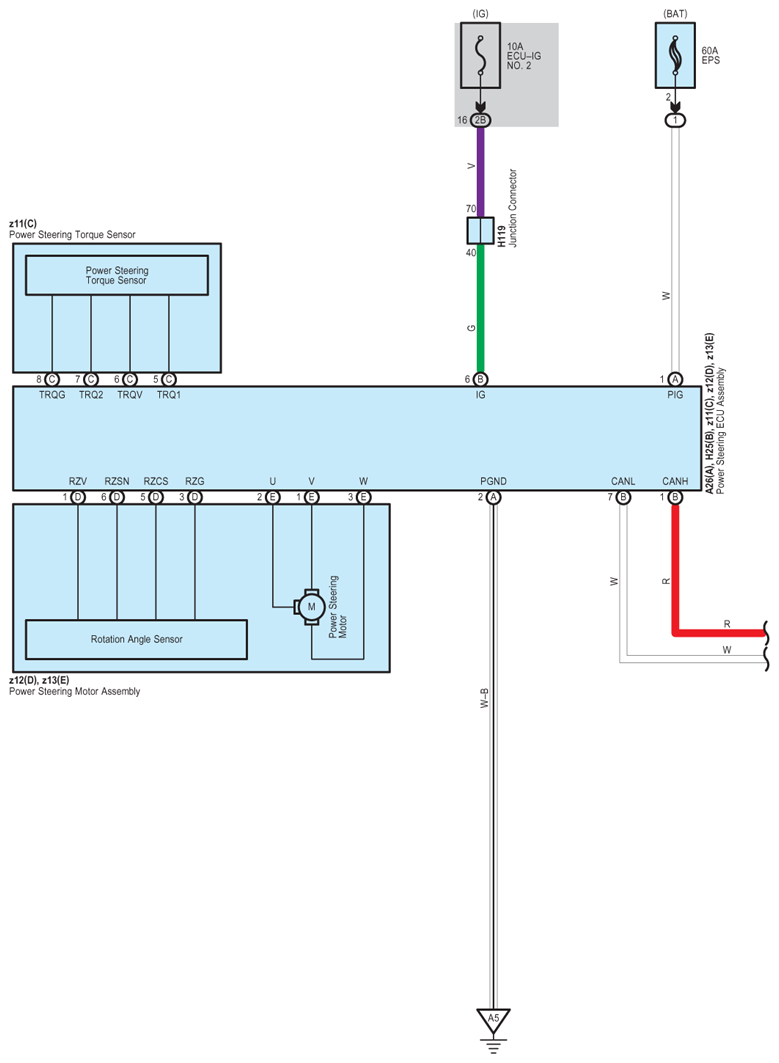

Fig 1: EPS - Wiring Diagram (1 Of 3)
G07777089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

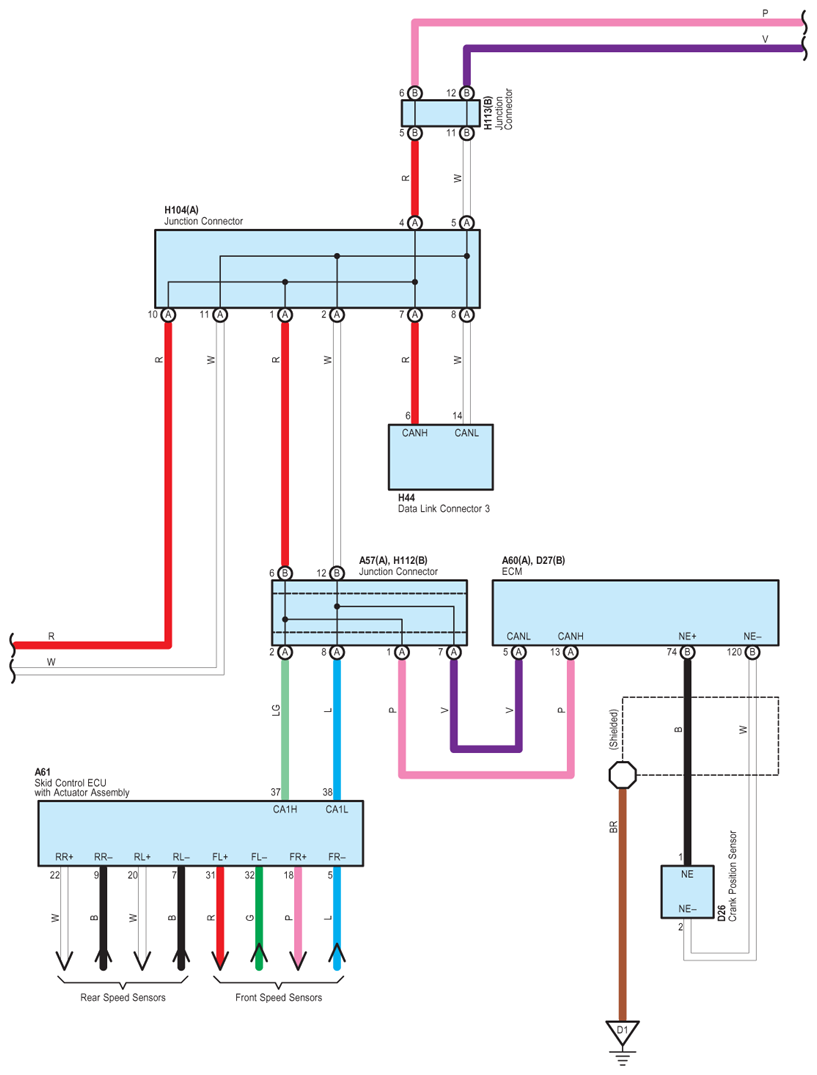

Fig 2: EPS - Wiring Diagram (2 Of 3)
G07777090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

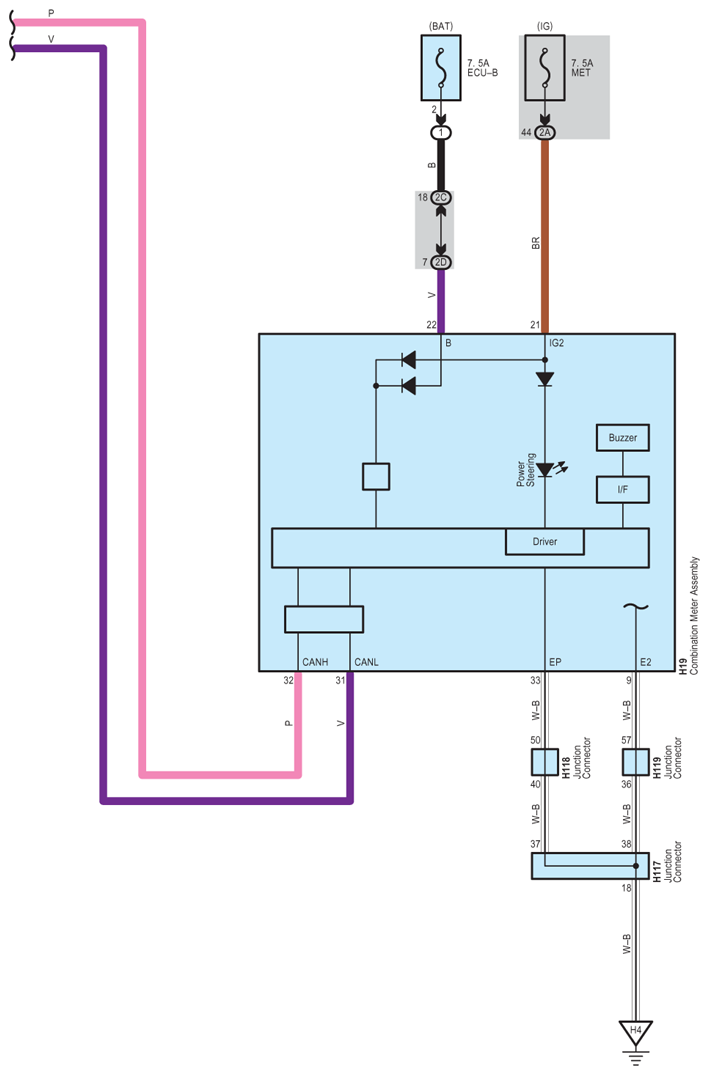

Fig 3: EPS - Wiring Diagram (2 Of 3)
G07777091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
