Front Fog Light: Notes

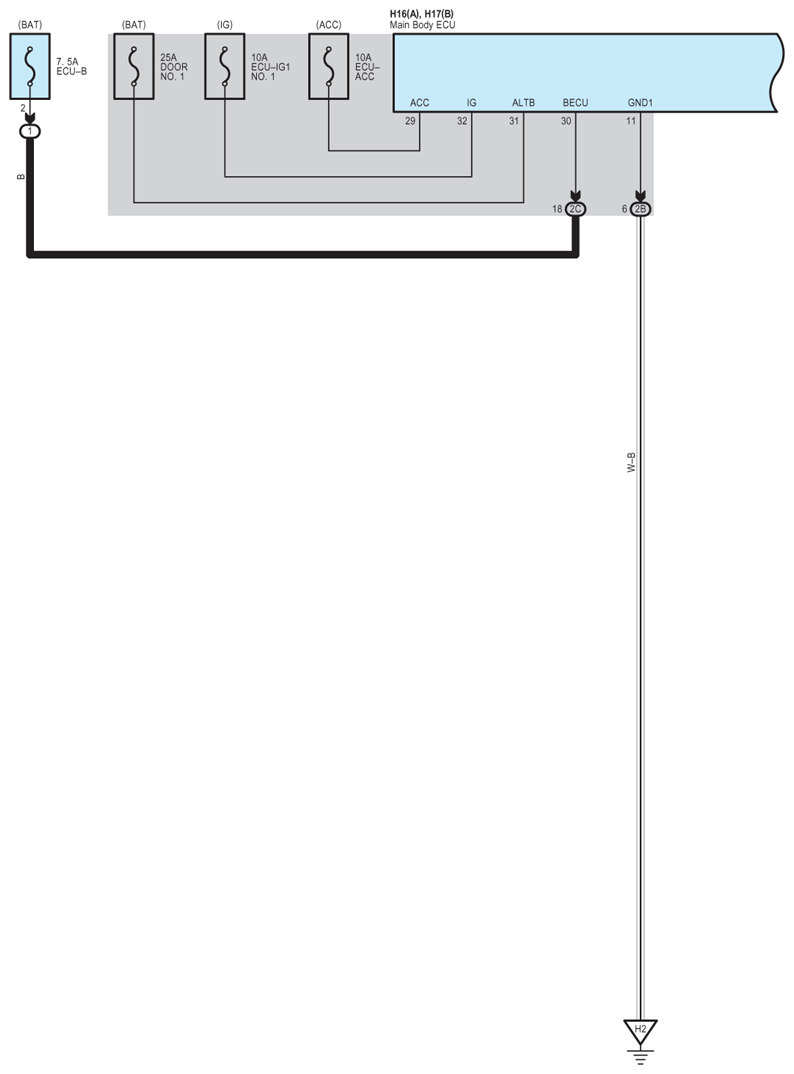

Fig 1: Front Fog Light - Wiring Diagram (1 Of 4)
G07777020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

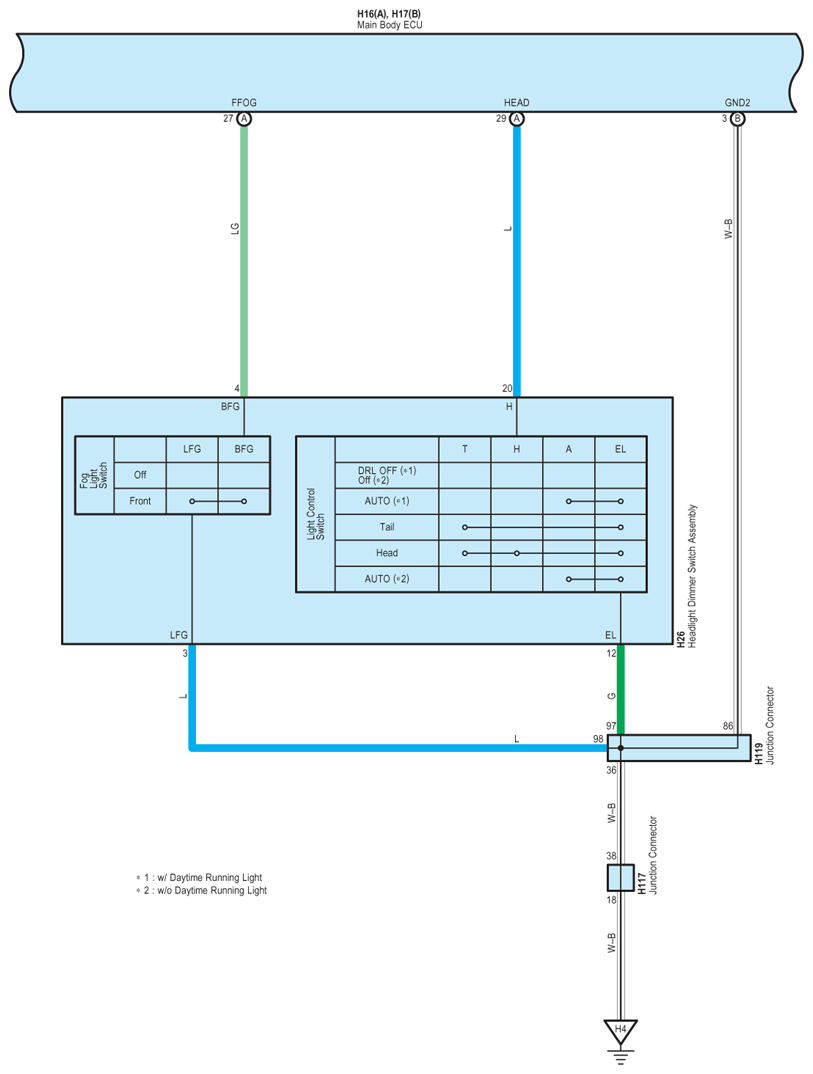

Fig 2: Front Fog Light - Wiring Diagram (2 Of 4)
G07777021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

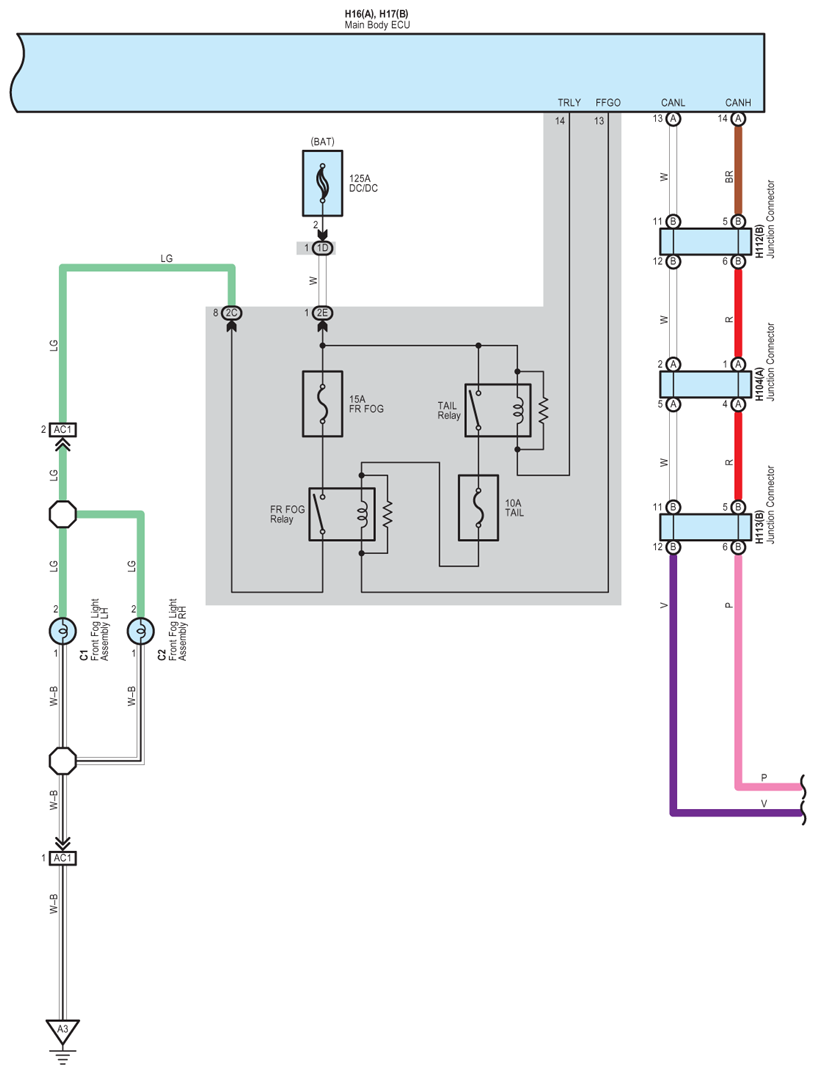

Fig 3: Front Fog Light - Wiring Diagram (3 Of 4)
G07777022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

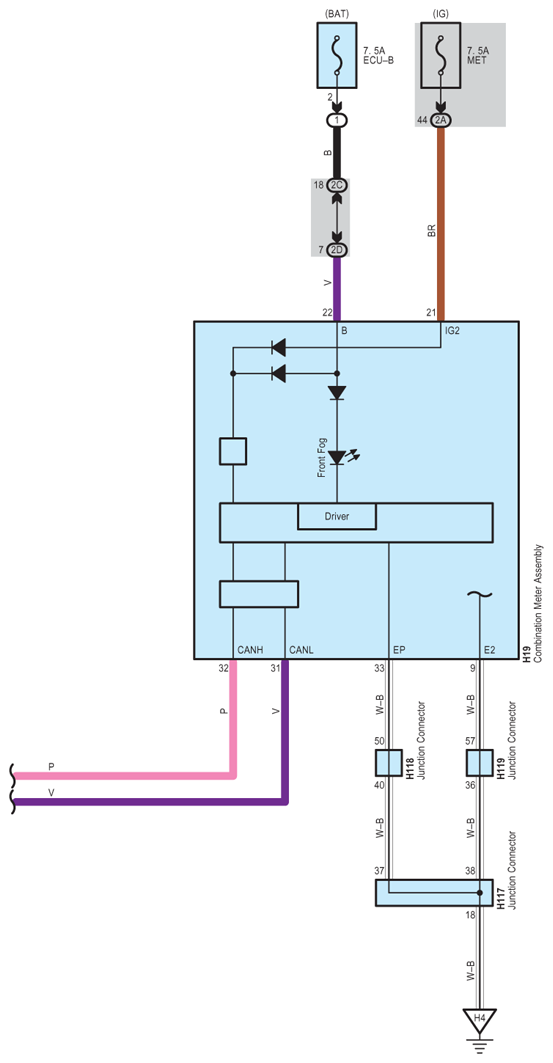

Fig 4: Front Fog Light - Wiring Diagram (4 Of 4)
G07777023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
