Multiplex Communication System (AVC-LAN): Notes

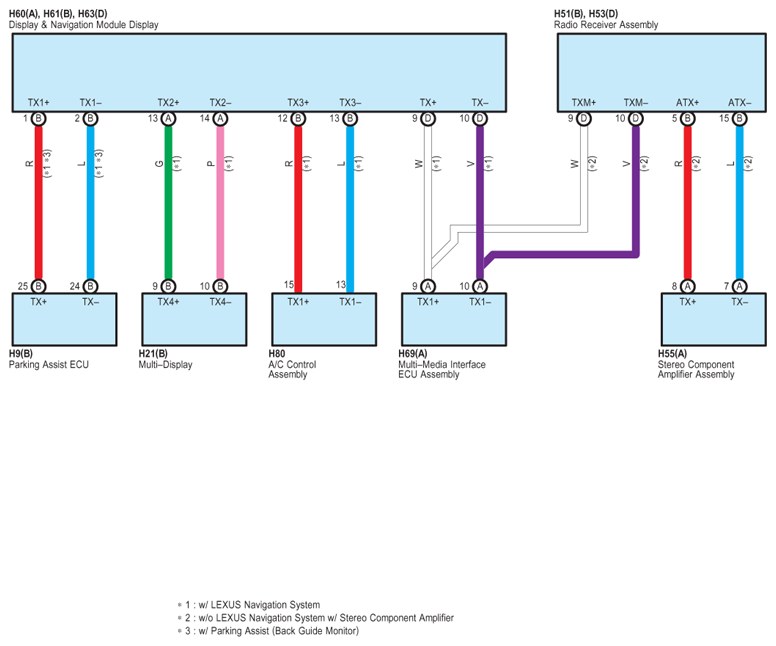

Fig 1: Multiplex Communication System - AVC-LAN - Wiring Diagram

G07777001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
