Home >> Lexus >> 2011 >> ES 350 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

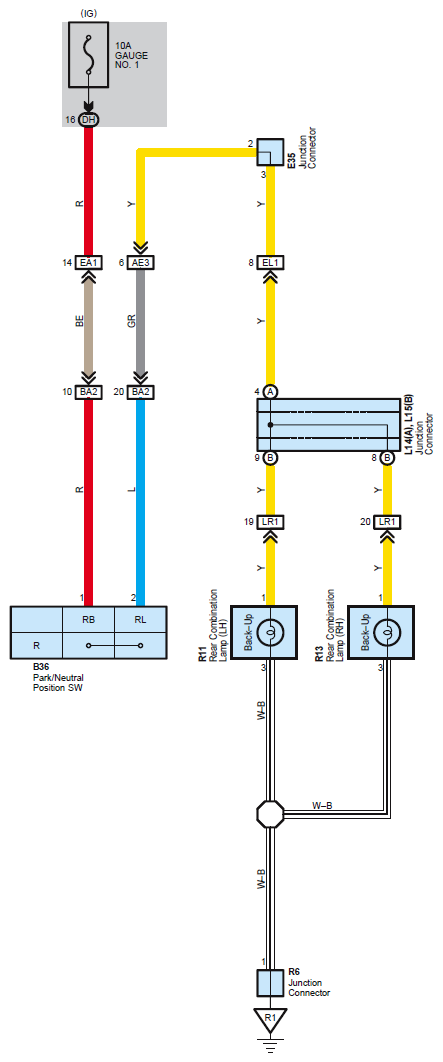

Fig 1: Back-Up Light - Circuit Diagram
G07569599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
