Cruise Control: Notes

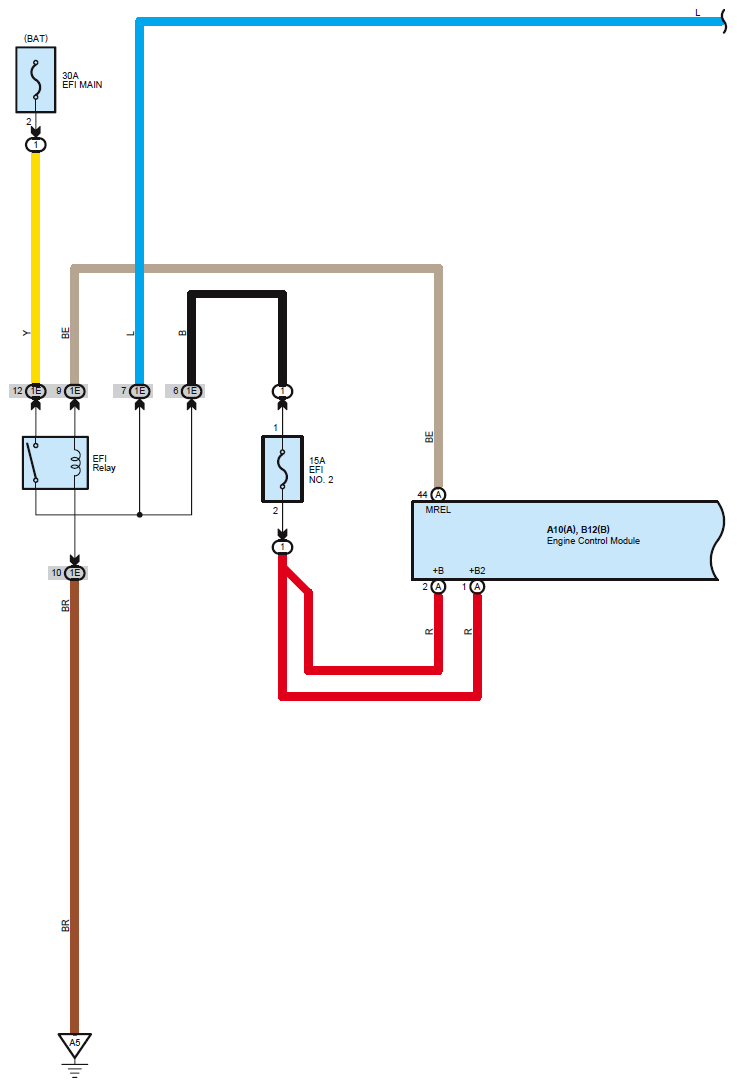

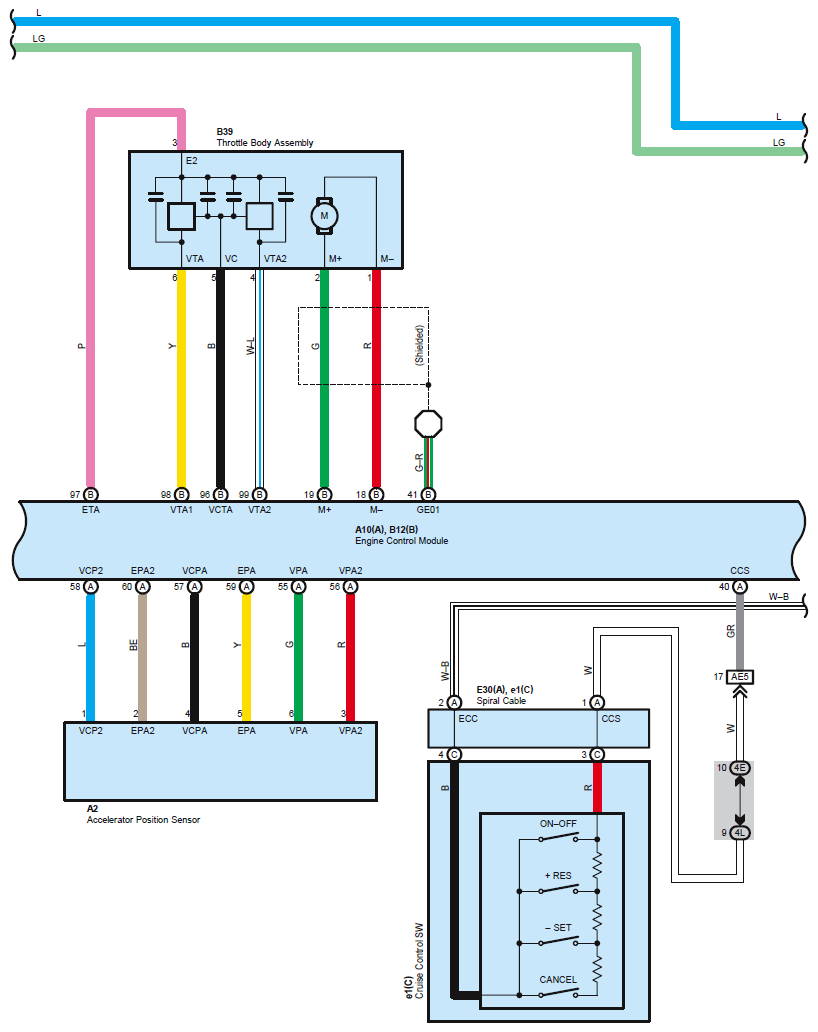

Fig 1: Cruise Control - Circuit Diagram (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

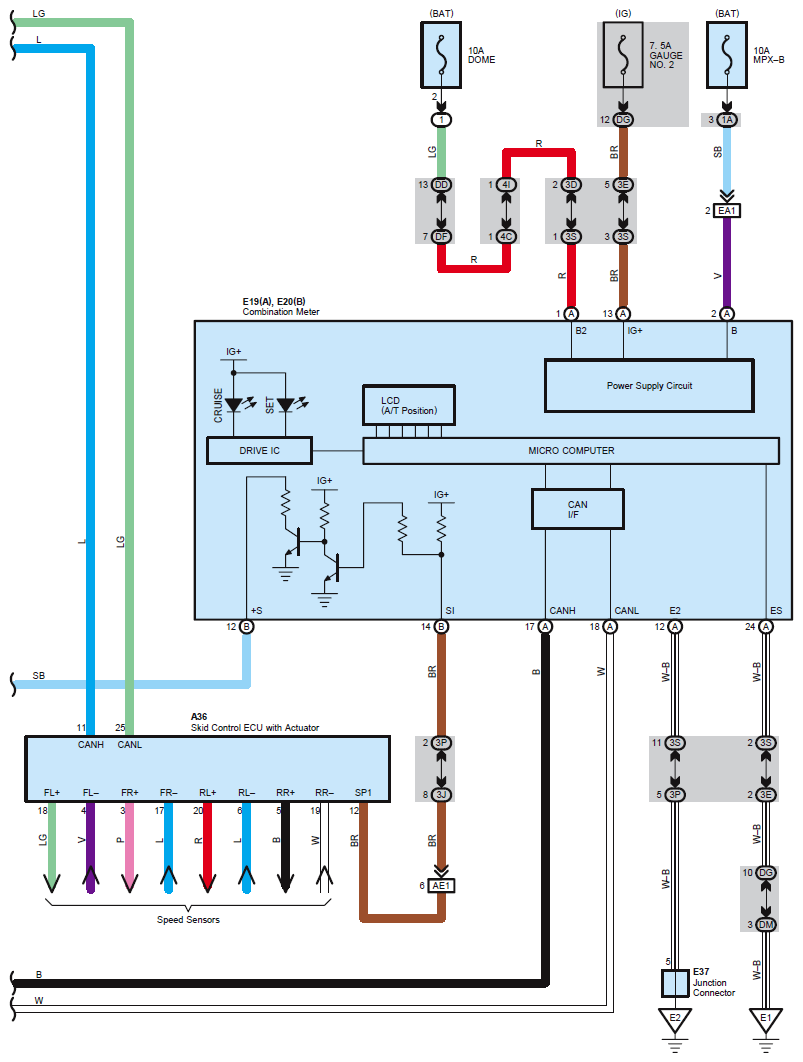

Fig 2: Cruise Control - Circuit Diagram (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

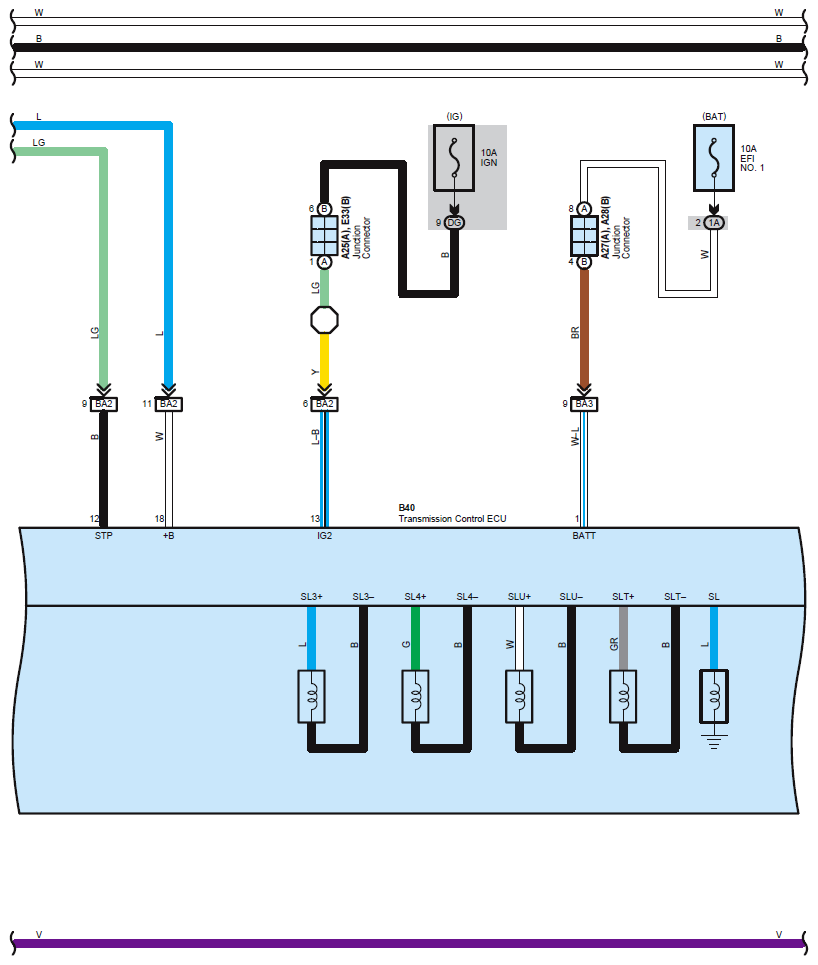

Fig 3: Cruise Control - Circuit Diagram (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

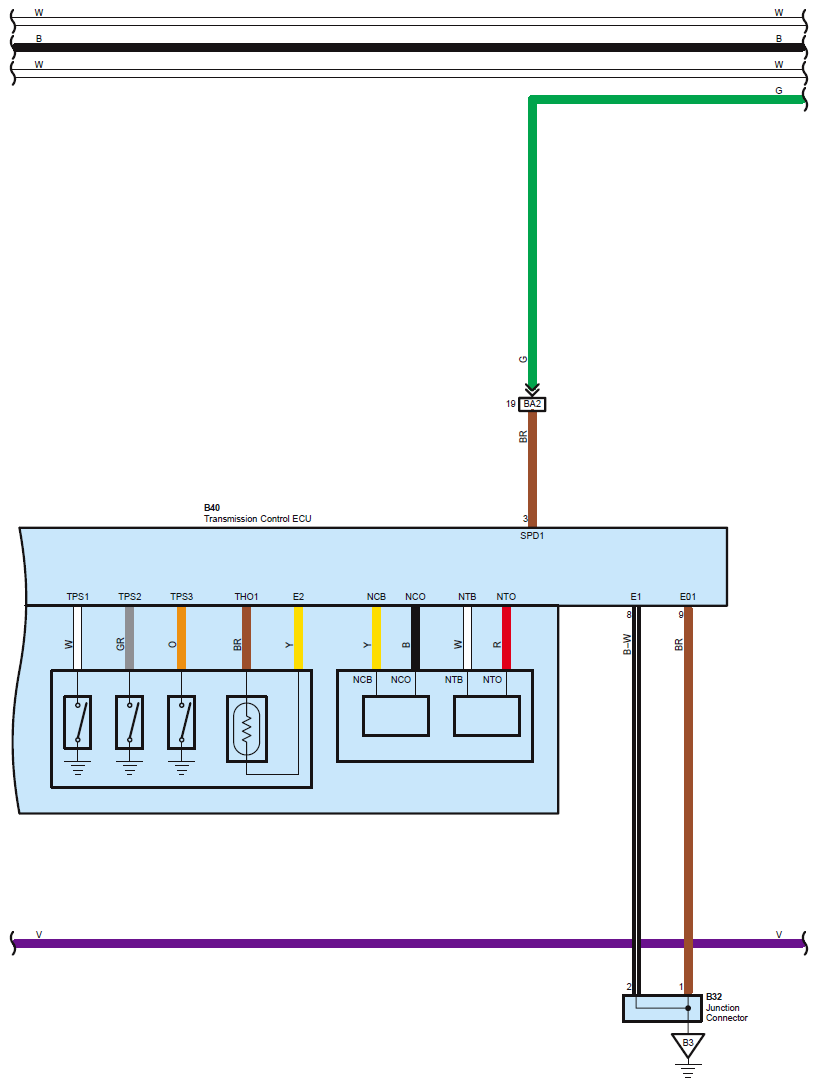

Fig 4: Cruise Control - Circuit Diagram (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

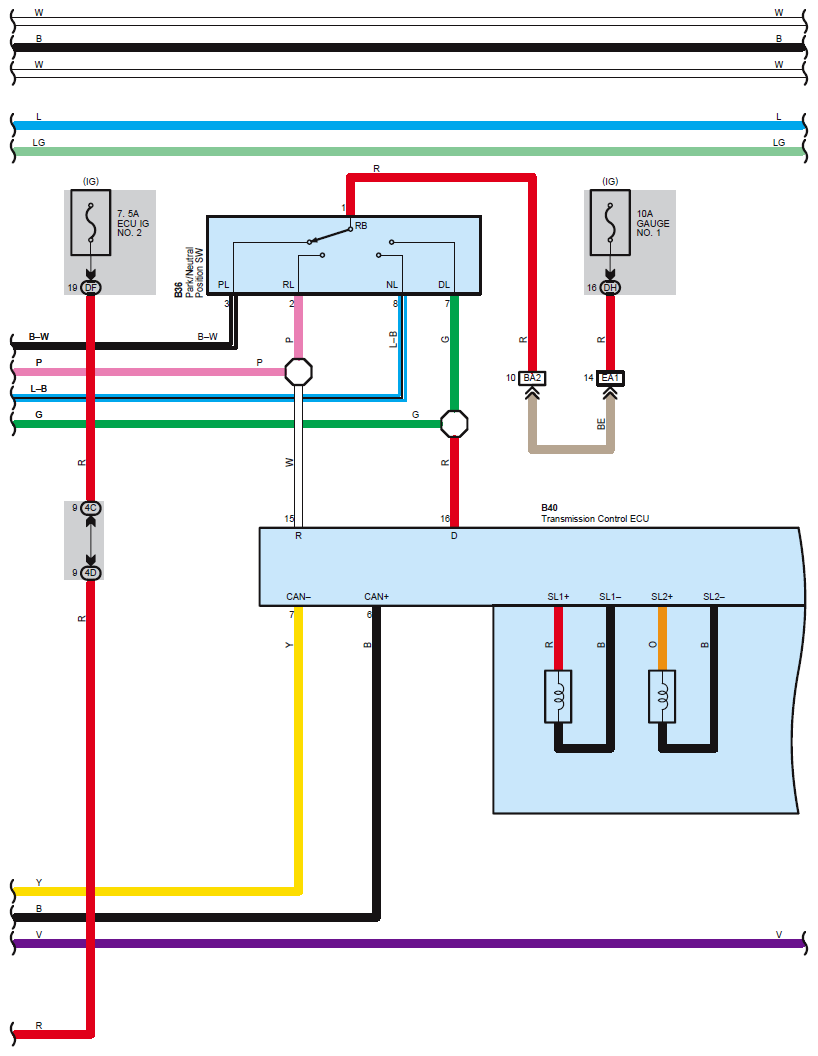

Fig 5: Cruise Control - Circuit Diagram (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

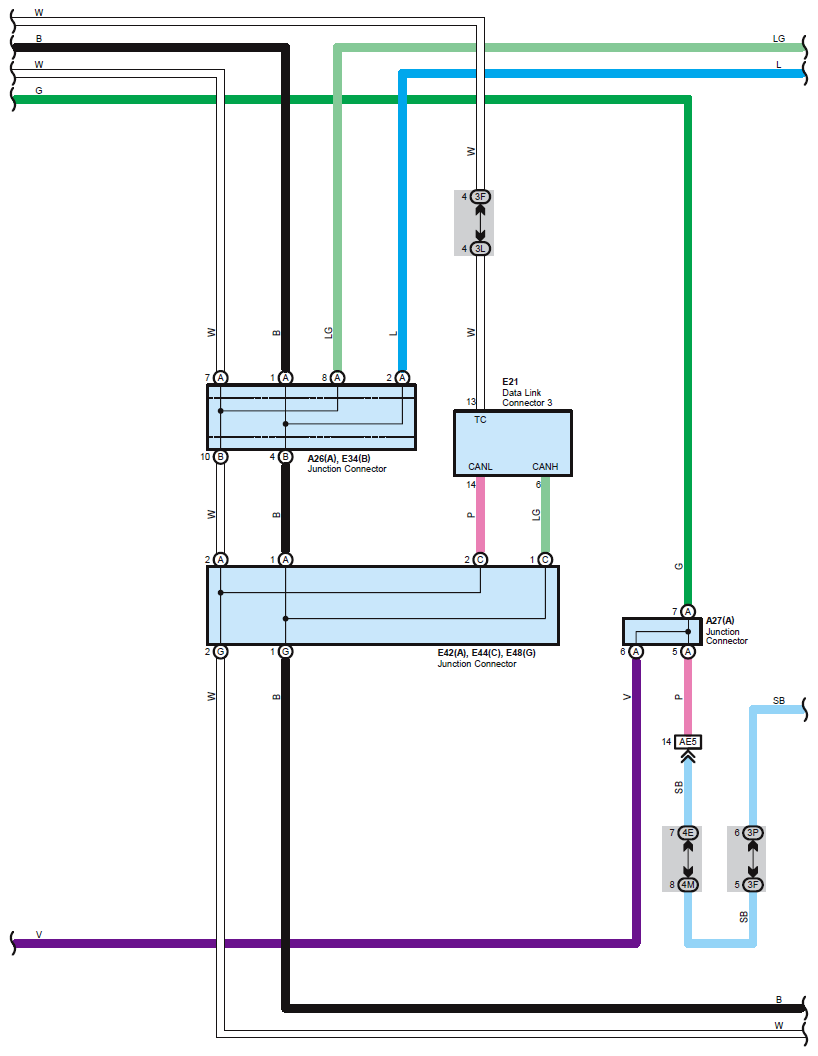

Fig 6: Cruise Control - Circuit Diagram (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

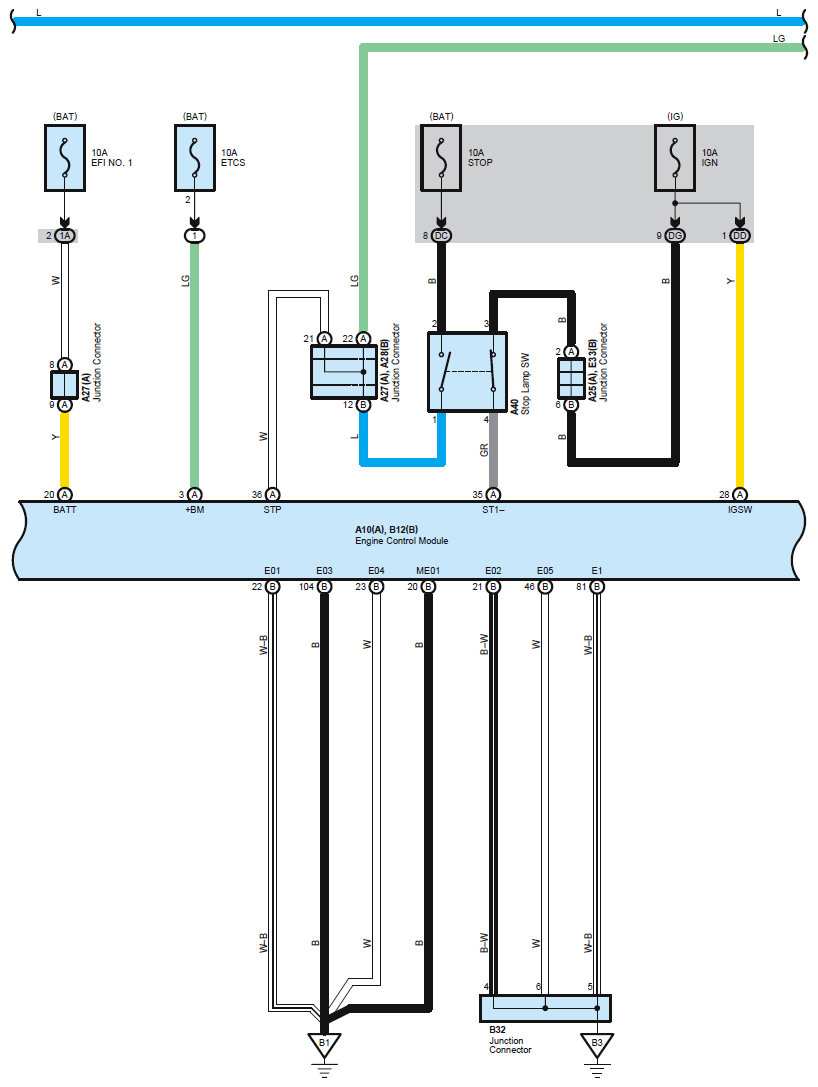

Fig 7: Cruise Control - Circuit Diagram (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

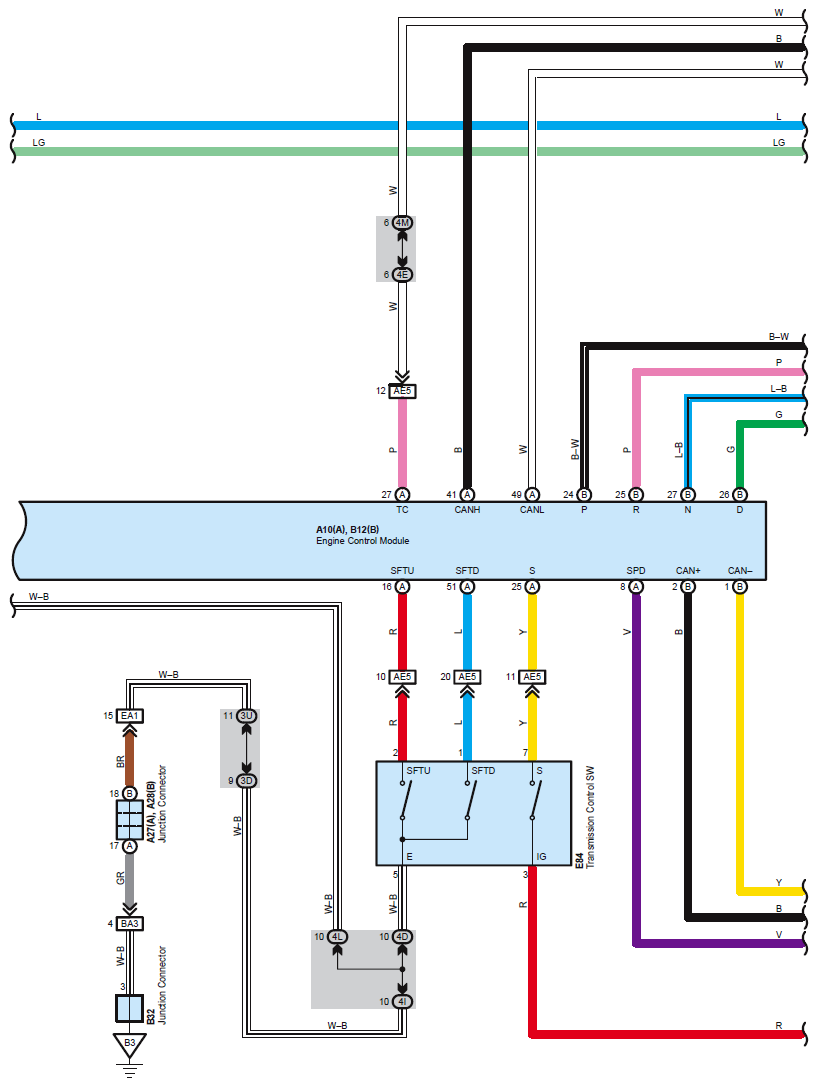

Fig 8: Cruise Control - Circuit Diagram (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Cruise Control - Circuit Diagram (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
