Fuel Tank: Components: Illustration

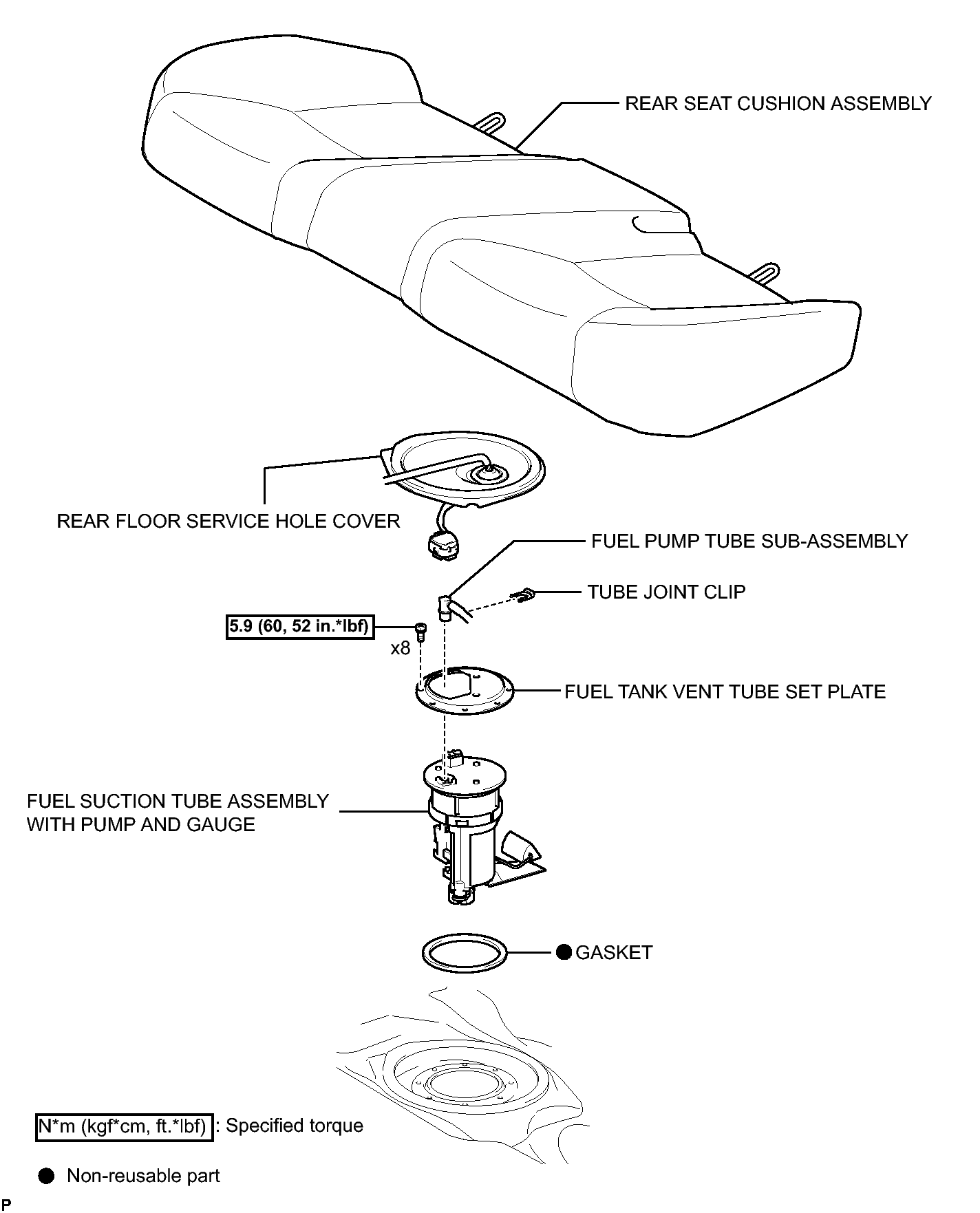

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY147395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

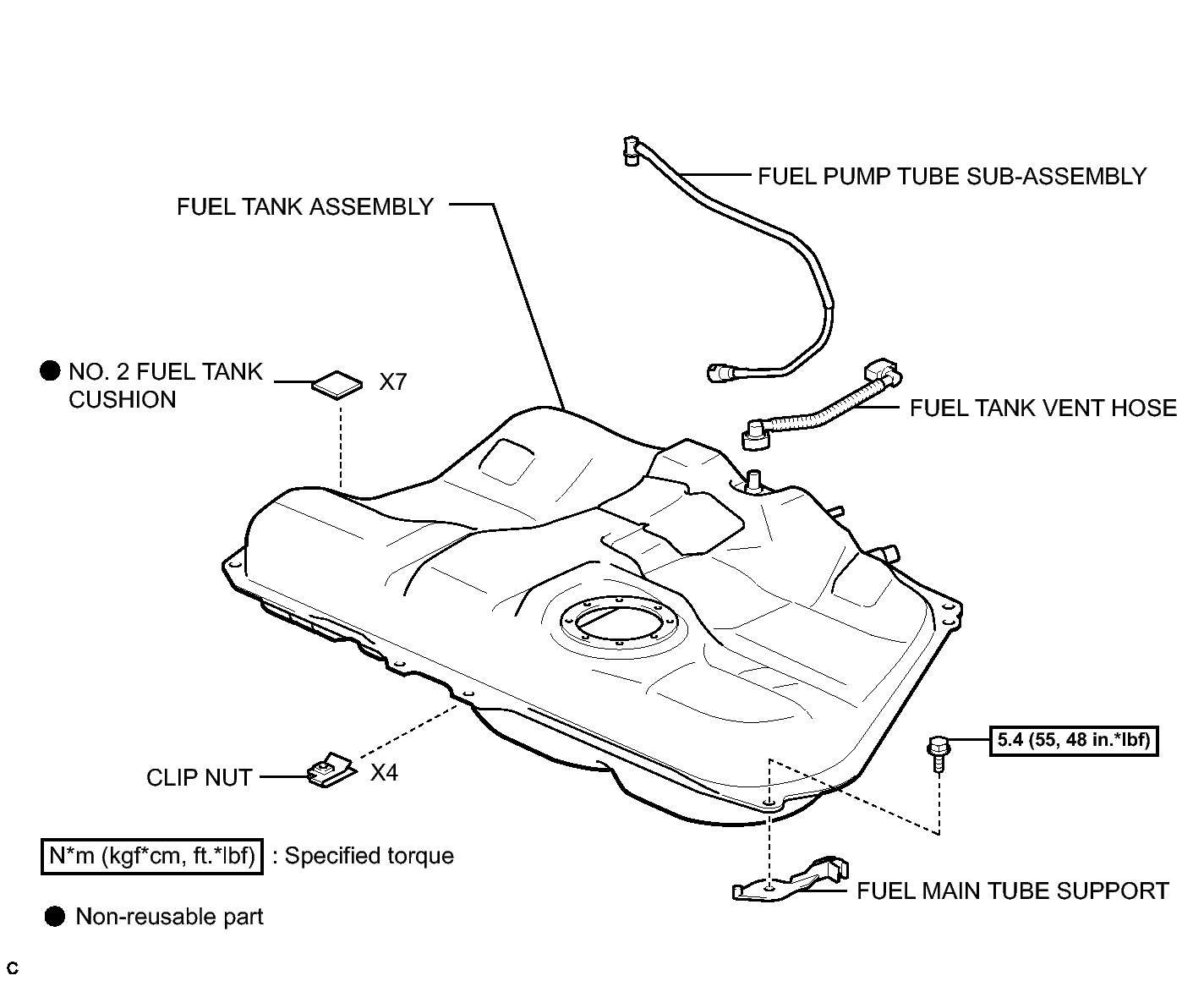

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
GTY138540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

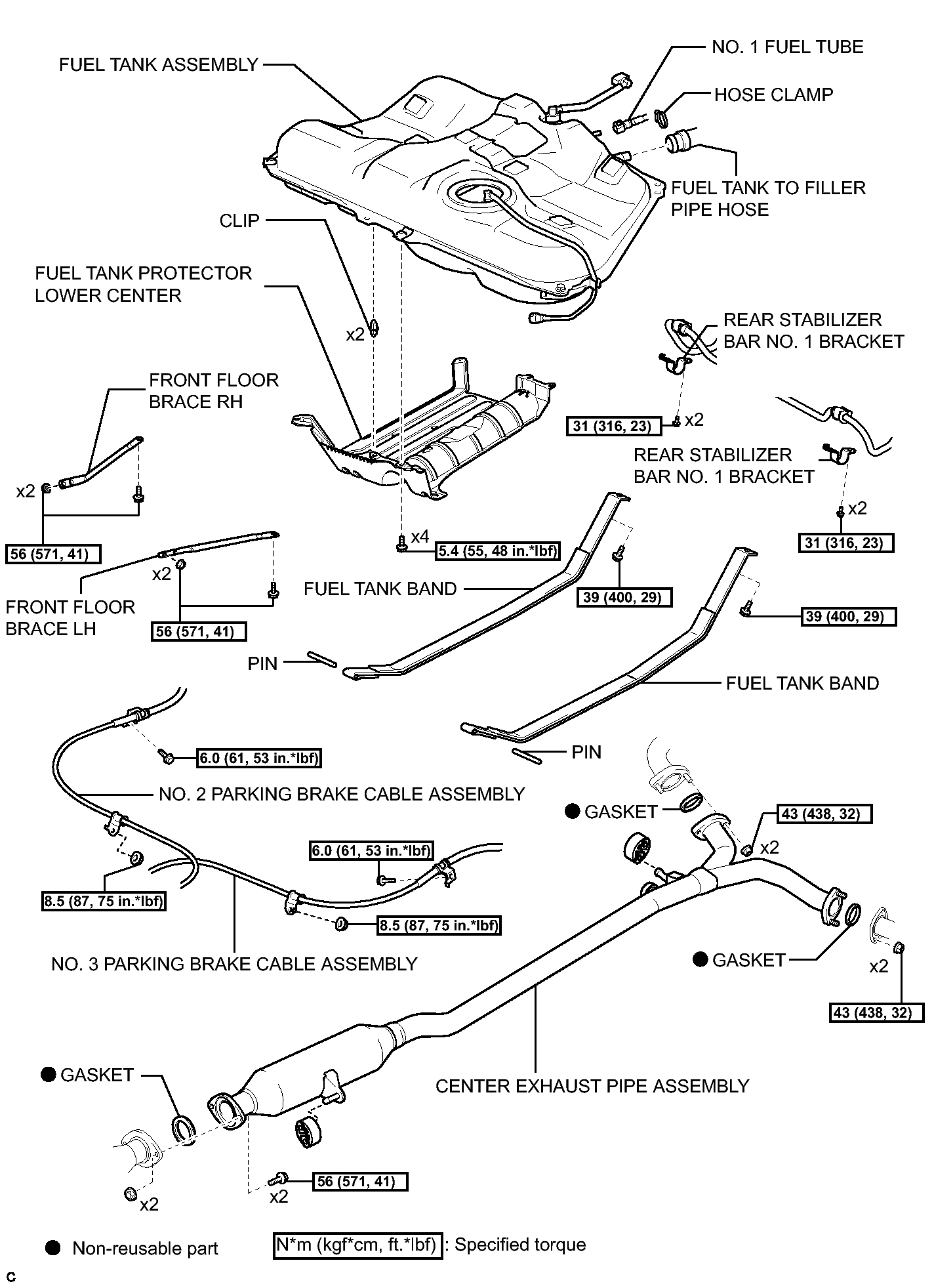

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY147393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
