GS 450h
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Rear Window Defogger
>>
Notes
Rear Window Defogger: Notes

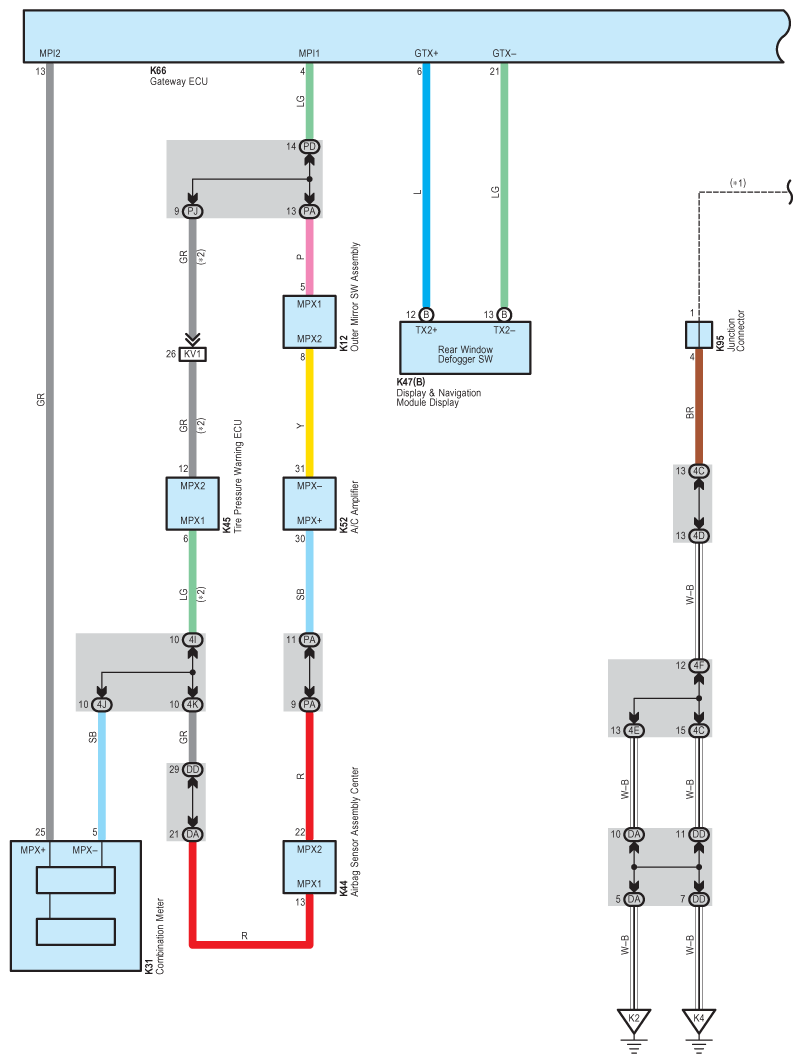

Fig 1: Rear Window Defogger - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

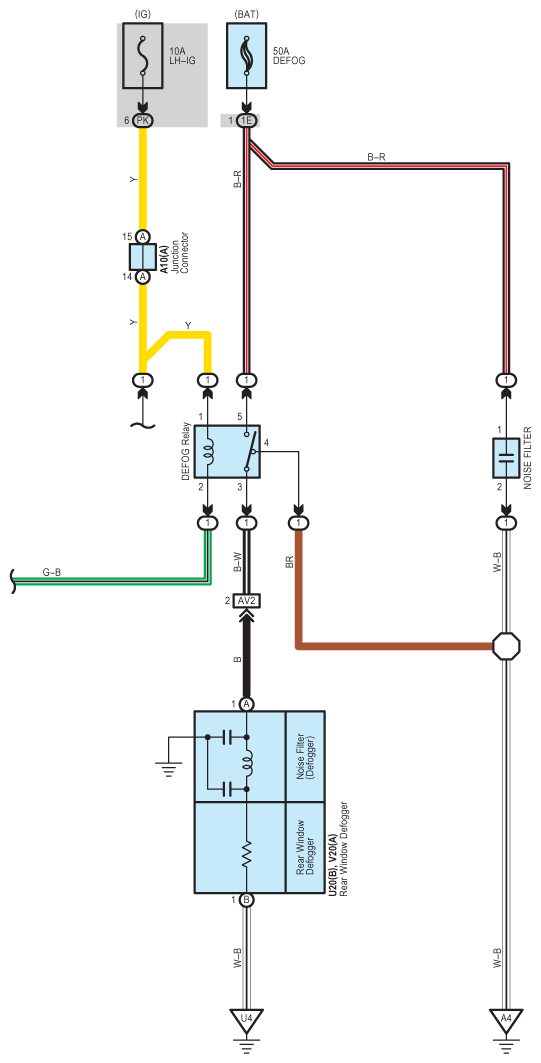

Fig 2: Rear Window Defogger - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

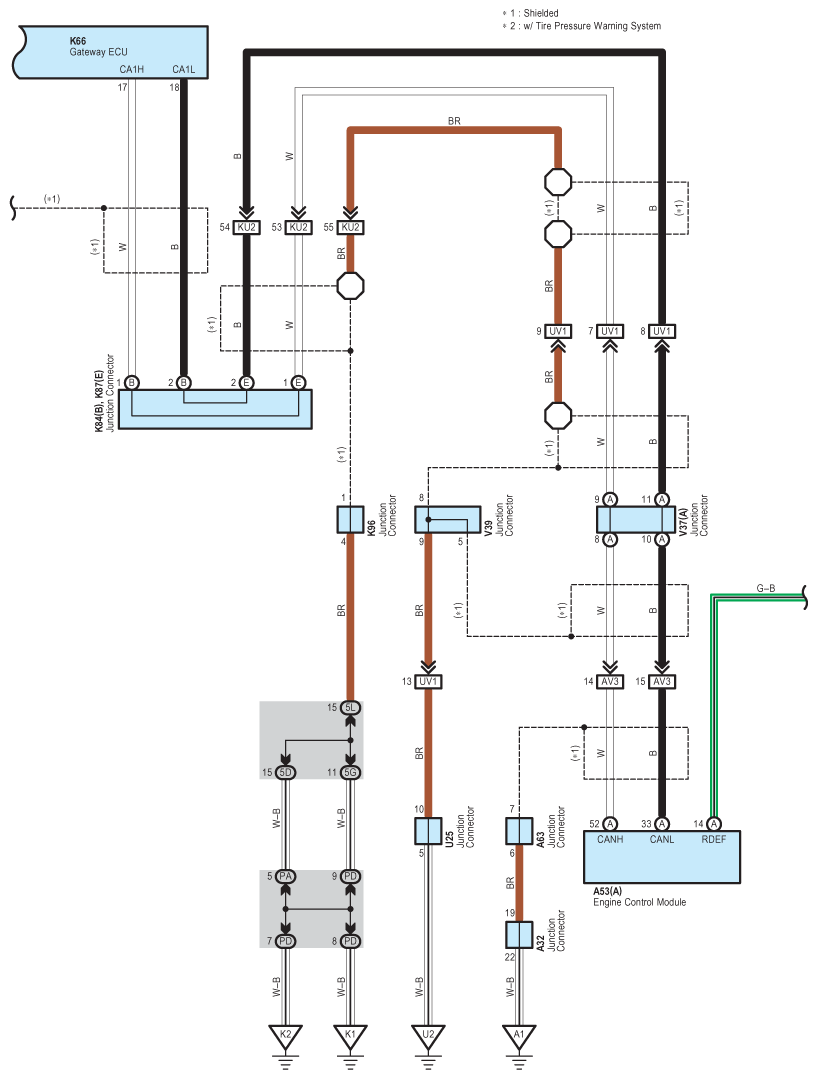

Fig 3: Rear Window Defogger - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
