Injector Driver: Components: Illustration

Fig 1: Identifying Injector Driver Replacement Components With Torque Specifications (1 Of 2)
GTY147024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

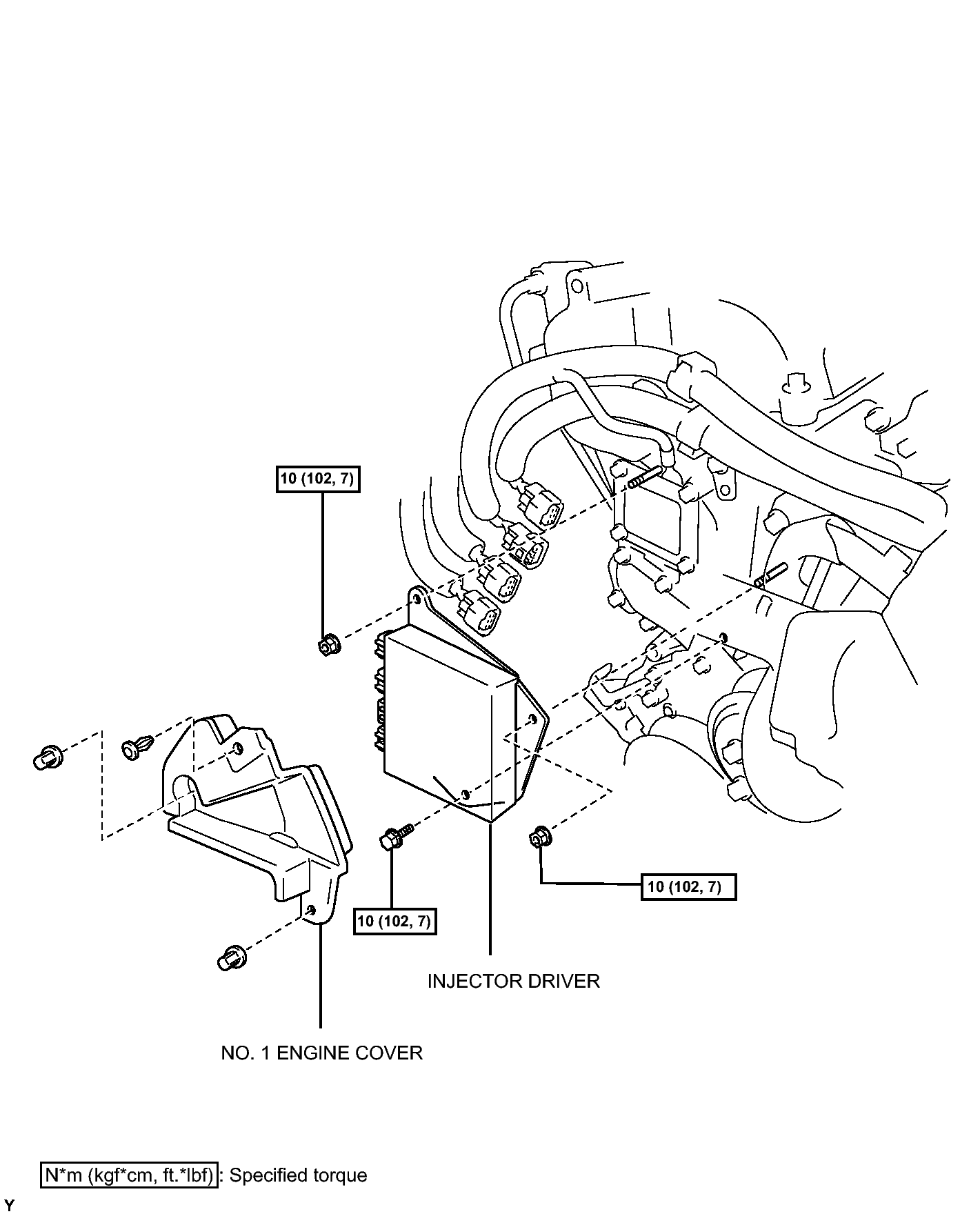

Fig 1: Identifying Injector Driver Replacement Components With Torque Specifications (2 Of 2)
GTY145346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
