OEM System Circuits: 4WD: Notes

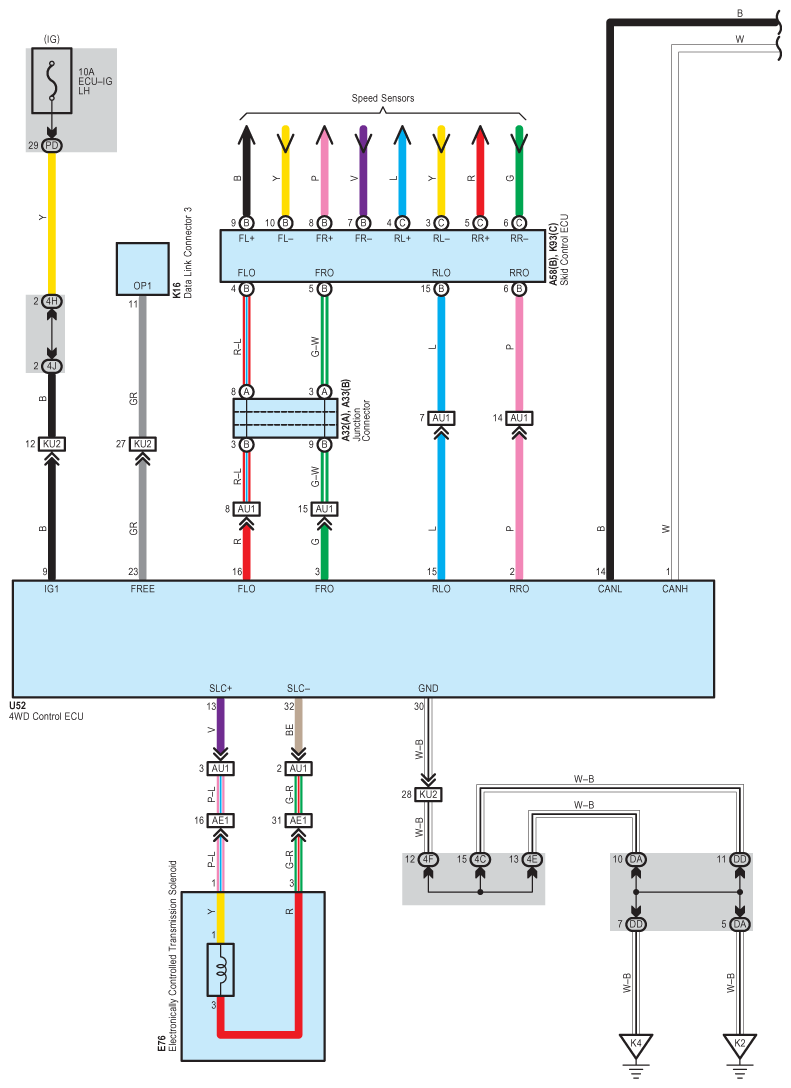

Fig 1: 4WD - Circuit Diagram (1 Of 4)
G07573276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

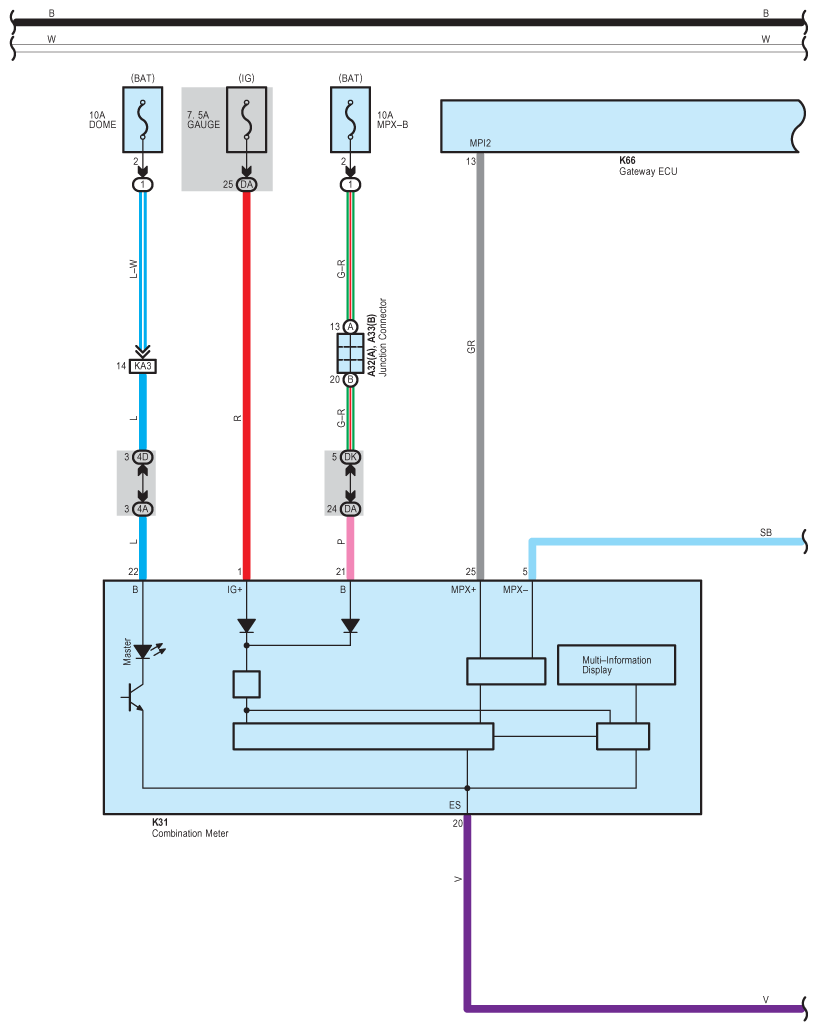

Fig 2: 4WD - Circuit Diagram (2 Of 4)
G07573277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

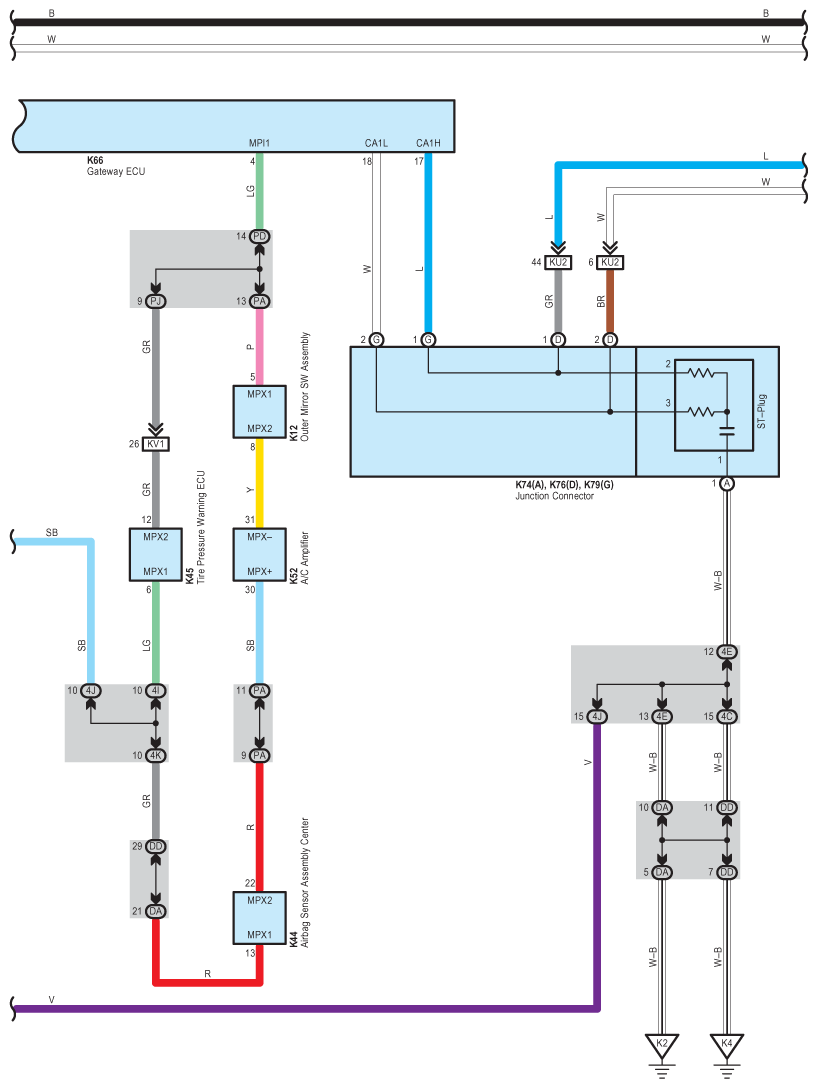

Fig 3: 4WD - Circuit Diagram (3 Of 4)
G07573278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

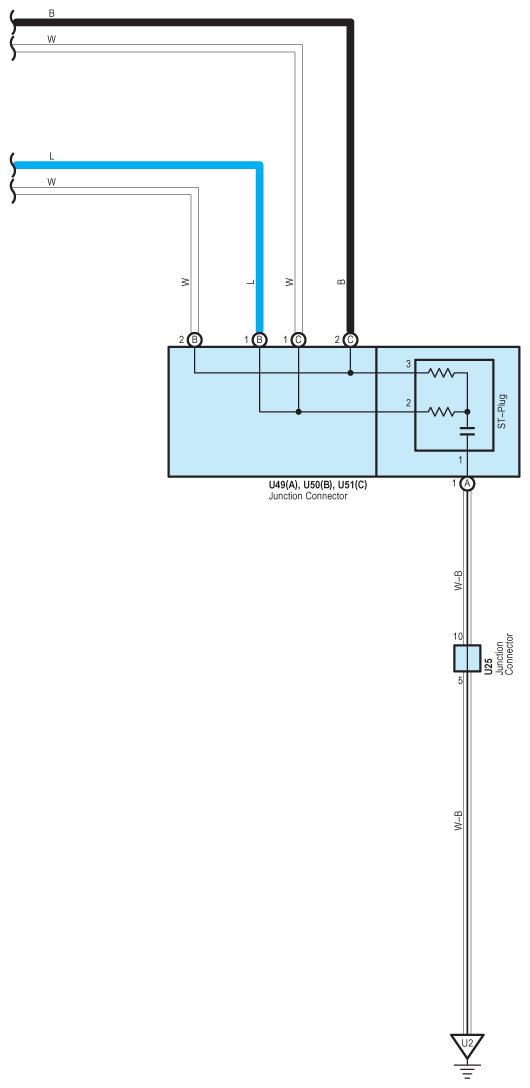

Fig 4: 4WD - Circuit Diagram (4 Of 4)
G07573279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
