Windshield Deicer: Notes

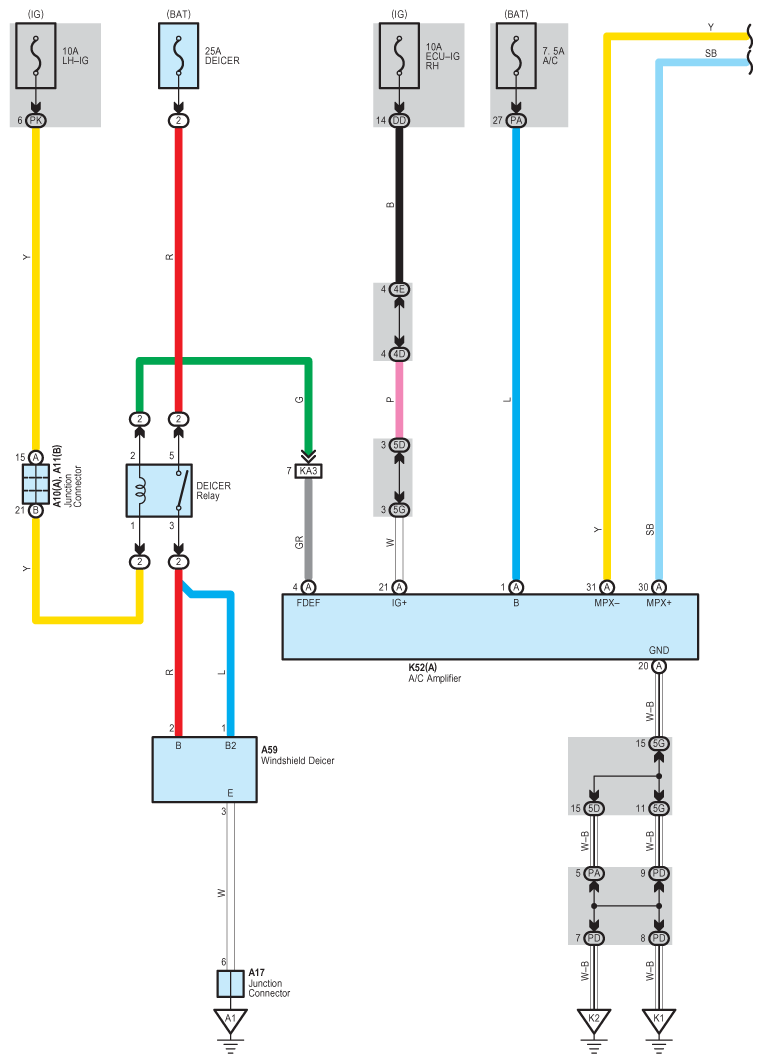

Fig 1: Windshield Deicer - Circuit Diagram (1 Of 2)
G07573444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

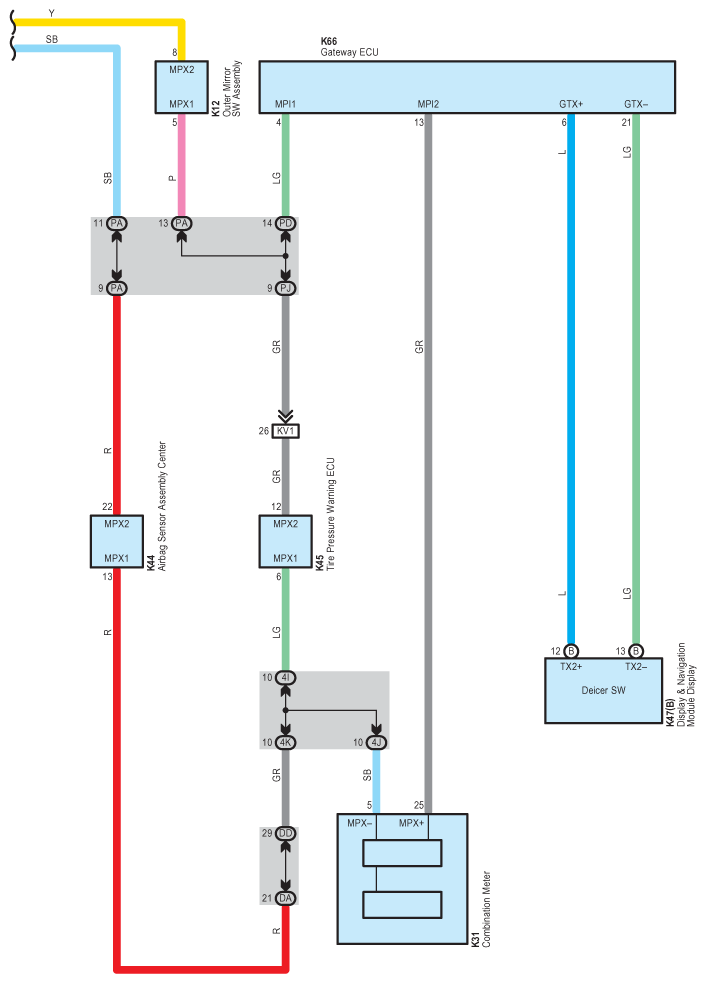

Fig 2: Windshield Deicer - Circuit Diagram (2 Of 2)
G07573445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
